RearHeight-of-CutInstallation(continued)

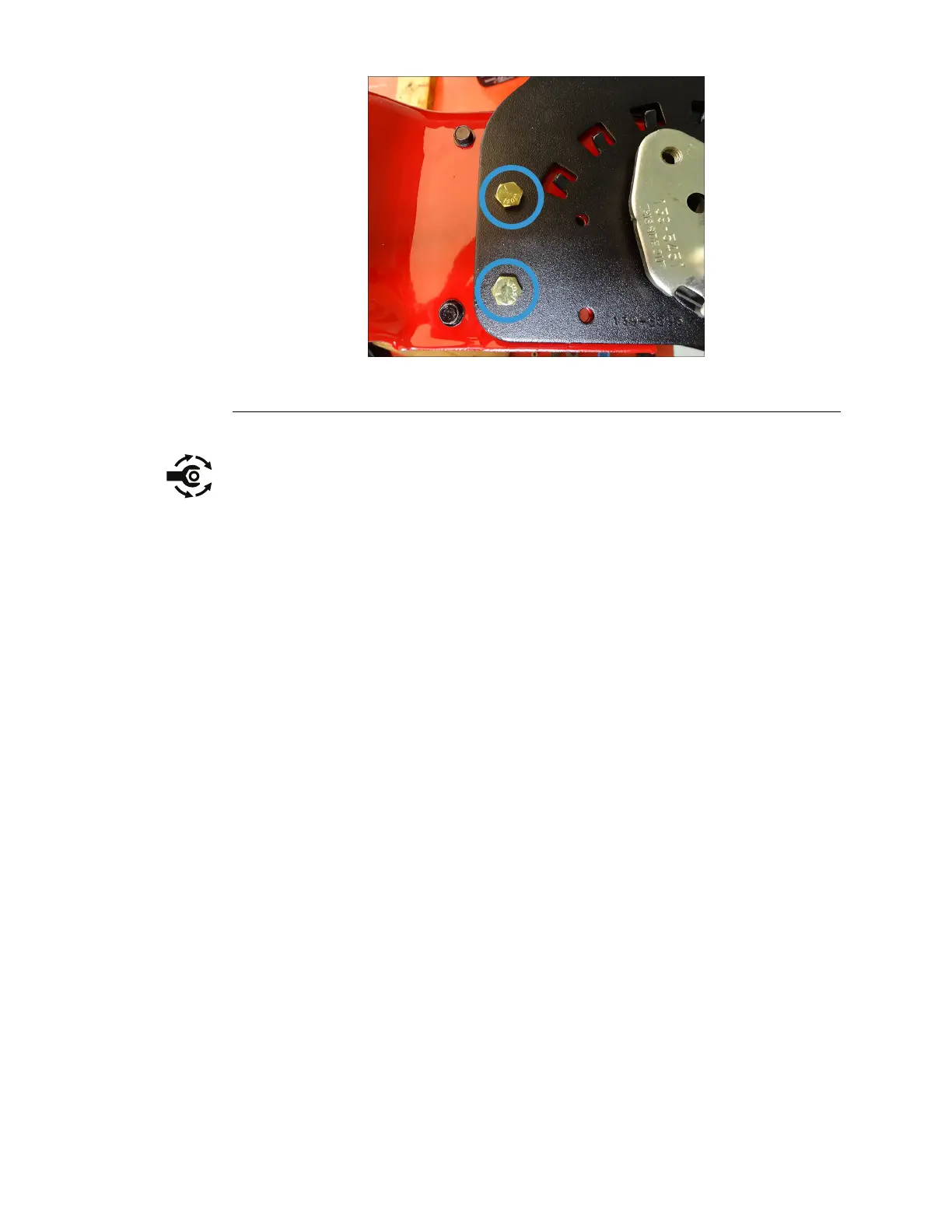

g361220
Figure113
5.Installtherearwheels.RearWheelInstallation(page7–11)
6.Modelsequippedwithelectricstartonly,connectthebatterybyinstalling
thepositivecablerst,thenthenegativecabletothebattery.Installthefoam
padandbatterycover.Securethebatterycoverwith2(M4.2x2.0)screws.
Torquethescrewsto2.26±0.34N•m(20±3in-lbs).
7.Modelsequippedwiththe60vpowerhead,installtheharnesstothe
powerhead.
UpperIntakeReplacement
UpperIntakeRemoval
1.Parkthemachineonalevelsurface,stoptheengineandwaitforallmoving
partstostop.
2.Modelsequippedwiththe60vpowerhead,removetheharnessfrom
powerhead.
3.Modelsequippedwithelectricstartonly,removethe2(M4.2x2.0)
screwssecuringthebatterycover.Removethebatterycoverandfoampad.
Disconnectthebatterybyremovingthenegativecablerst,thenthepositive
cablefromthebattery.
4.Removethegrassbaggerassemblyifattached.
5.Tiptheunittogainaccesstotheundersideoftheunit.
6.Positionthebladeoutofthewayofthelowerintake.
7.Removethe(1/4x1.33inch)shoulderscrewsecuringthebottomintake
covertothedeck.
8.Removethebottomintakefromthedeck.
9.Removethe2(1/4x1.33inch)screwssecuringtheupperintaketothedeck.
