RWDPERSONALPACE®AssemblyHandleRemoval(continued)
g353082

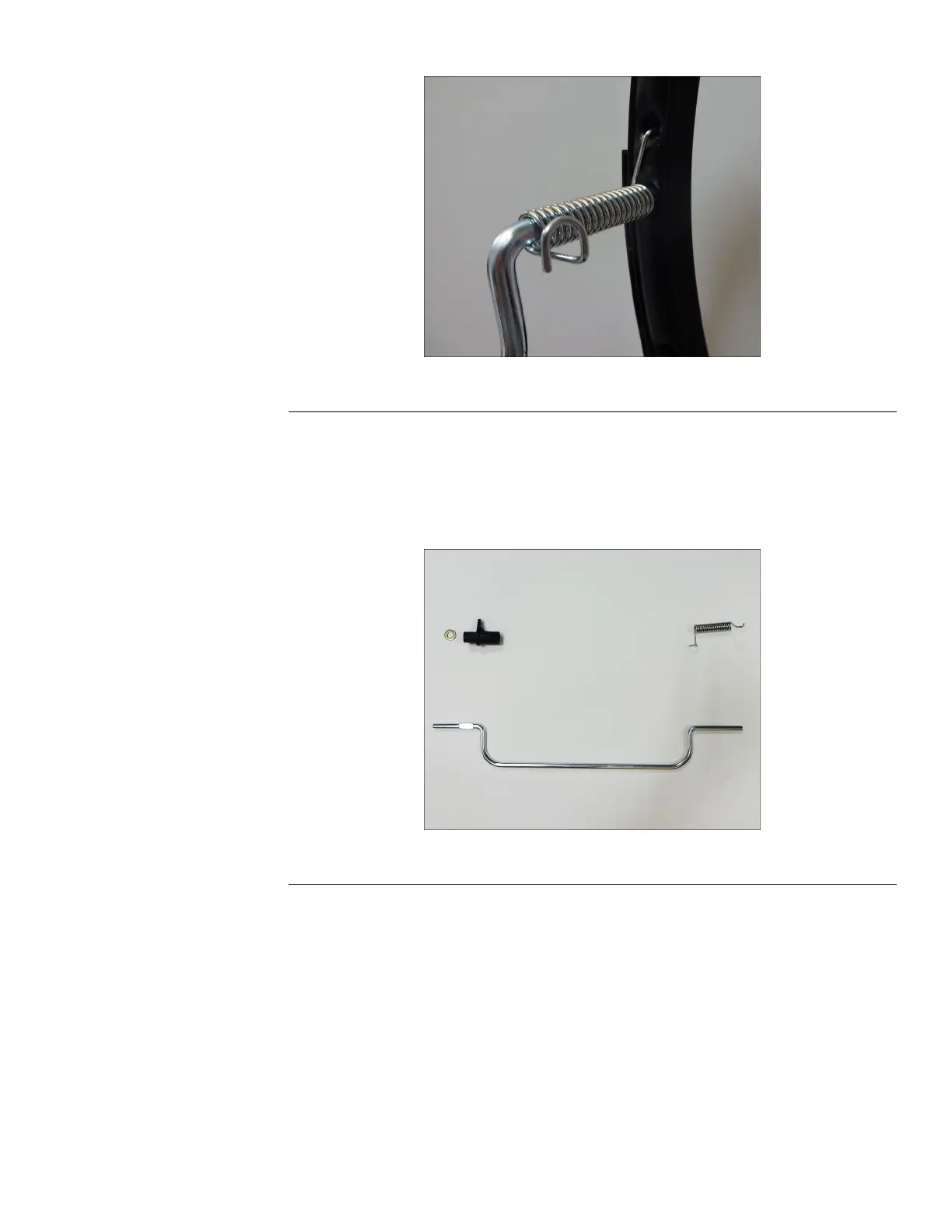

Figure52
16.RemovetheRHcurvedguidefromthecurvedhandle.
17.Slidethetractionrodtotheright,removethetractionrodfromthecurved
handle.
18.RemovethetractionleverandwasherfromtheLHsideofthetractionrod.
RemovethetorsionspringfromtheRHsideofthetractionrod.
g353179
Figure53
19.RemovetheLHcurvedguidefromthecurvedhandle.
RWDPERSONALPACE®HandleAssemblyInstallation
1.InstallthetractionleverandwasherontotheLHsideofthetractionrod.
2.InstallthetorsionspringontotheRHsideofthetractionrod.
3.InstalltheLHandRHcurvedguidesontothecurvedhandle.
4.Installthetractionrodontothecurvedhandle.
5.Installthetorsionspringontothecurvedhandle.
22InchAWD/RWDSteelDeckWalkPowerMowerService
Manual
Page5–25
Controls:ServiceandRepairs
3445-579RevA
