RWDPERSONALPACE®HandleAssemblyInstallation(continued)

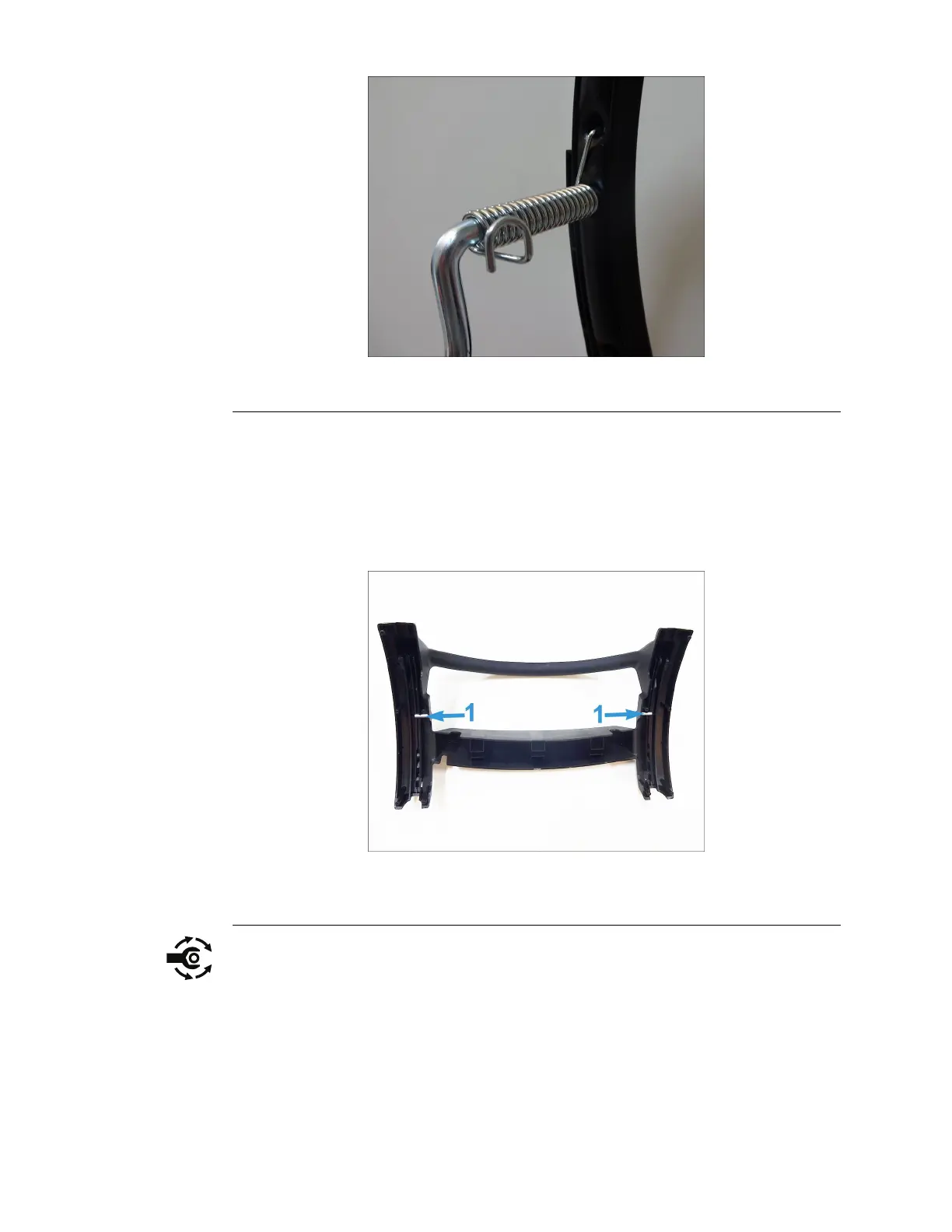

g353082
Figure54
6.Pointthetractionleverupwardsandrotatethetractionrod3/4turnsothatthe
tractionleverispointingbackwards.InstalltheupperPERSONALPACE®
handleontothecurvedhandle.
Note:Thespringhashalfoftherotationwrapwhenfullyassembled.
7.IfthehandlepinswereremovedfromtheupperPERSONALPACE®handle,
installthehandlepins.
g353060
Figure55
1.HandlePins
8.Installthe10(M4.2x2.0)screwssecuringtheLHandRHbottomhandles
andupperPERSONALPACE®handletothecurvedhandle.T orquethe
screwsto2.26±0.34N•m(20±3in-lbs).
