Toro 21464 - Page 85

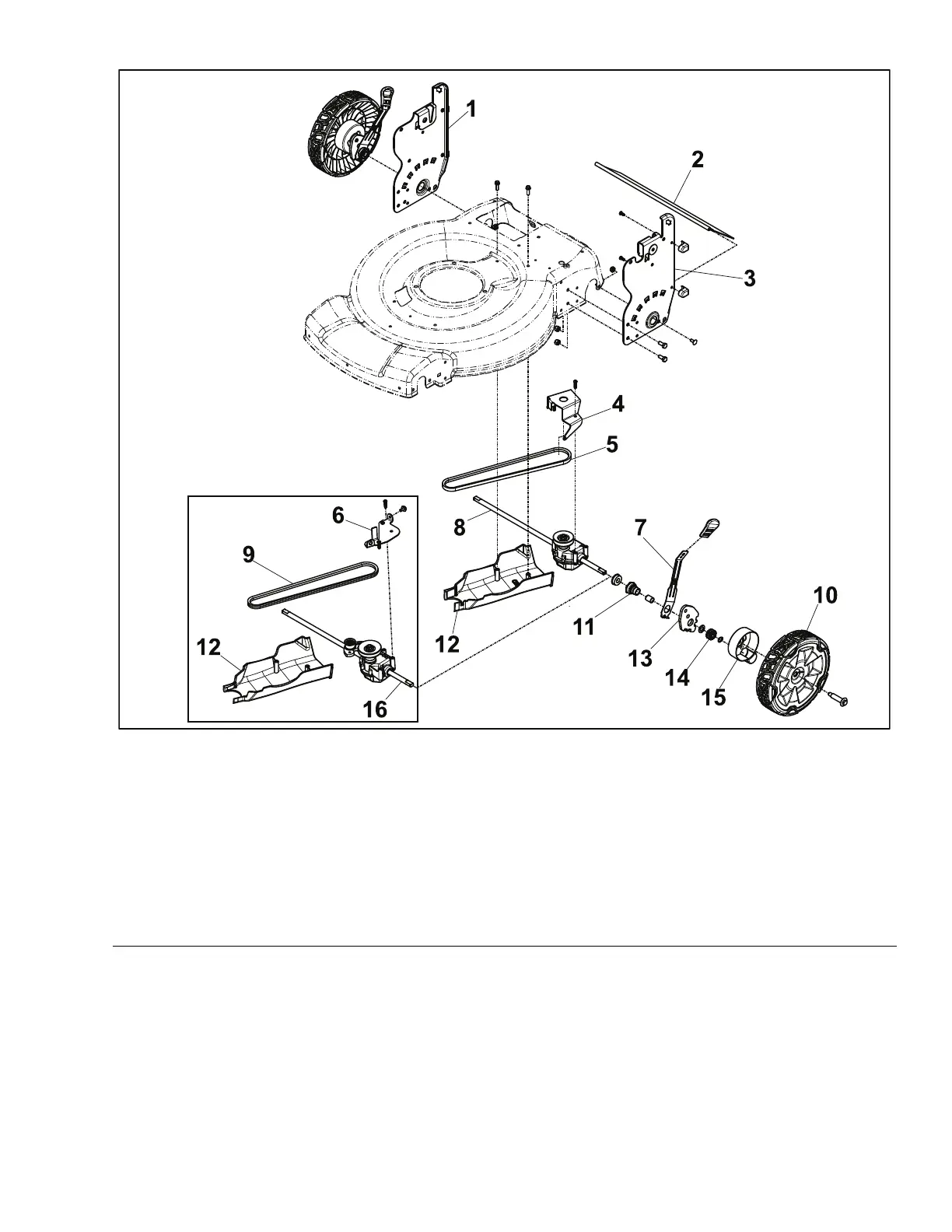

DeckAssembly5
g352312
Figure95
1.RHHeight—of—CutPlate
9.AWDBelt
2.TrailingShield10.GearedWheelAssembly
3.LHHocPlate
11.Height—of—CutBushingRetainer
4.TransmissionBracket
12.BeltCover
5.V-Belt13.RearPivotArm
6.AWDBeltGuide14.PinionGear
7.SpringArm15.GearCoverAssembly
8.RWDTransmission16.AWDTransmission
22InchAWD/RWDSteelDeckWalkPowerMowerService
Manual
Page6–7
Deck:ServiceandRepairs
3445-579RevA
