KNOW YOUR CONTROLS
Axle Shift Lever (Fig.12) - Located on right side of
console, lever selects front drive mode. Pull out lockout
knob, move lever rearward for mowing operation and
forward for transport operation, then release knob to
lock selection. Lever must be in LO position to mow.
Middle position (N) is for towing.
IMPORTANT: Lever must be in LO position to operate
in 4-wheel drive.
CAUTION: Machine must be on a flat surface and
brakes engaged when shifting axle from HI to LO
position.

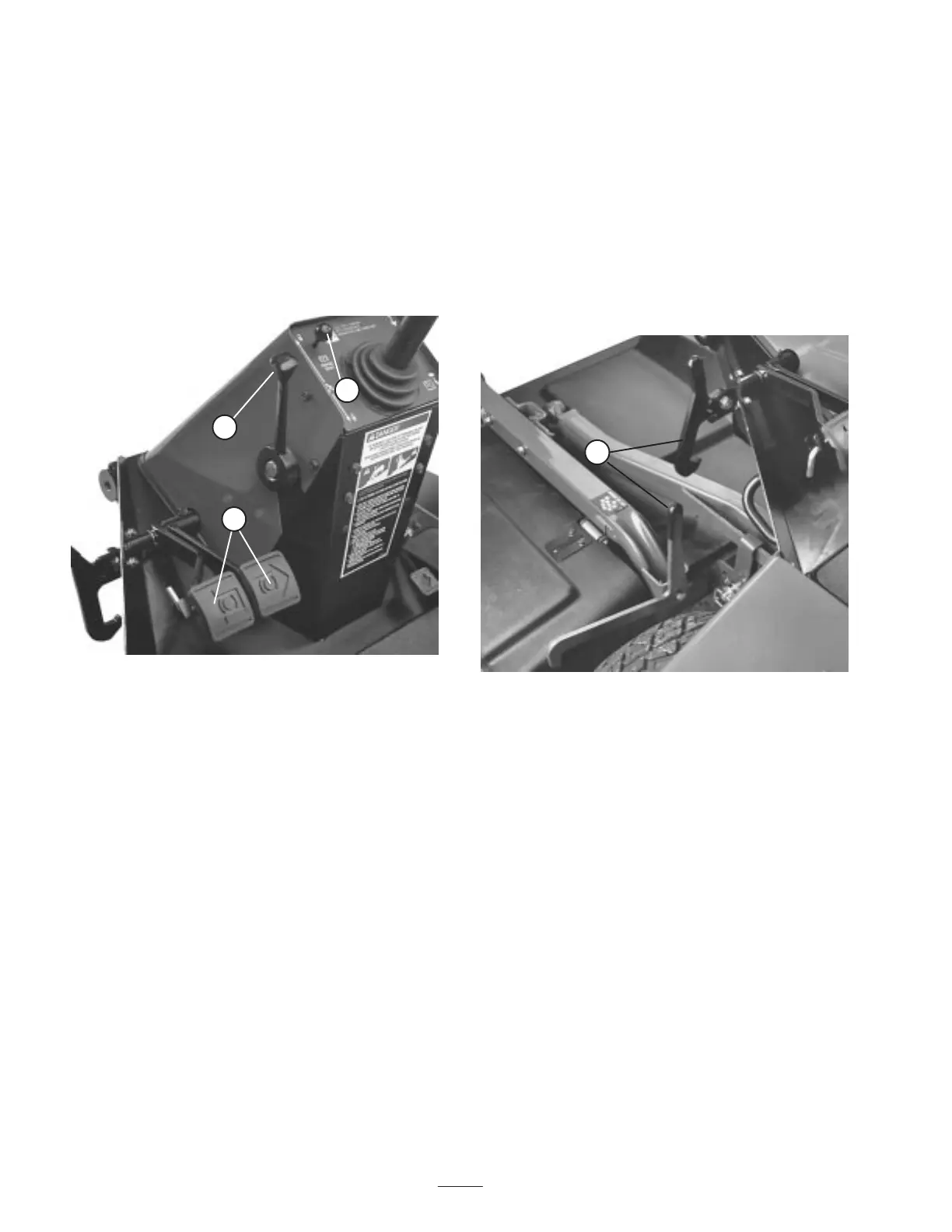

Figure 13
1. Brake Pedals
2. Parking Brake Latch
3. Steering Wheel TIlt Lever
3
1
2
Brake Pedals (Fig. 13) - Two foot pedals at the lower
left operate individual wheel brakes for turning
assistance, braking, parking and to aid in obtaining
better sidehill traction. Locking pin is for parking.
Parking Brake Latch (Fig. 13) - A knob on the left side
of console actuates parking brake lock. To engage
parking brake, connect pedals with locking pin, push
down on both pedals and pull parking brake latch out.
To release parking brake, depress both pedals until
parking brake latch retracts.
Steering Wheel Tilt Lever (Fig. 13) - Lever on left side
of console allows steering wheel to be adjusted for
operator comfort.
Transport Latches (Fig. 14) - Four latches secure
cutting unit and wings in upright position for transport
operation.
Figure 14
1. Transport Latch (4)
1
Hour Meter (Under Hood) - Shows total hours that
machine has been operated.
Horn - In center of steering wheel. Operates only when
key switch is in ON.
