LOOSE PARTS CHART
Description Qty. Use
Ignition keys 2
Operator’s Manual 2 Read before operating the machine.
Parts Catalog 1
BEFORE OPERATING
CAUTION
Before servicing or making adjustments to the
machine, stop engine and remove key from the
switch.

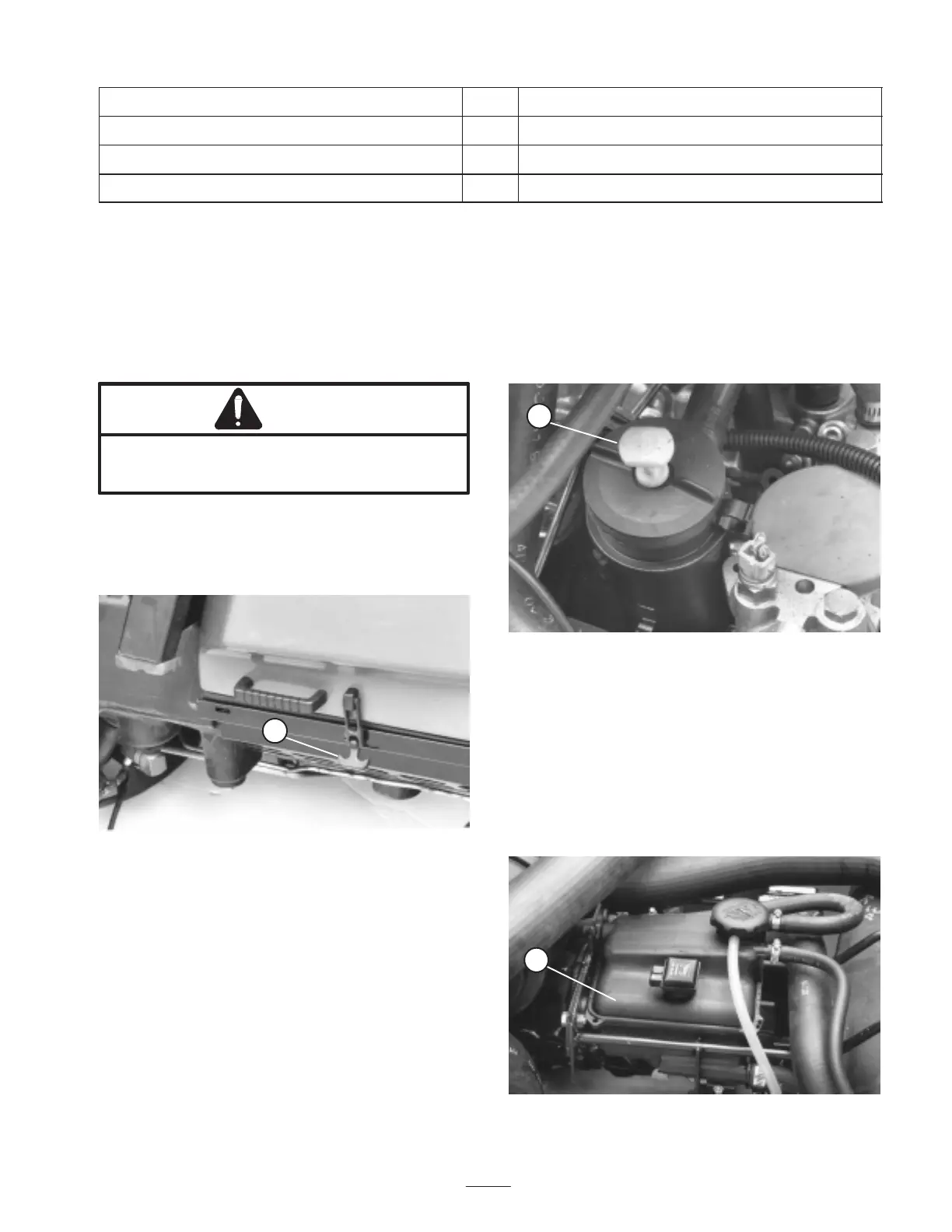

CHECK ENGINE OIL (Fig. 1 & 2)
Crankcase capacity is 5.3 qt. with filter.
1. Park machine on a level surface. Release hood
latch and open hood.
Figure 1
1. Hood Latch
1
2. Remove dipstick from tube cap, wipe clean and
reinstall dipstick into tube cap. Pull it out again and
check oil level on dipstick: Oil level must always be in
notch area on dipstick.
3. If oil level is low, remove tube cap and add SAE
15W-40 CD oil until level reaches top of notch on
dipstick. DO NOT OVERFILL.
4. Install oil tube cap.
5. Close hood and secure latch.
Figure 1
1. Dipstick / Tube Cap
1
CHECK COOLING SYSTEM (Fig. 2)
Capacity of system is 3.5 gal.
1. Park machine on a level surface. Release hood
latch and open hood.
2. Check coolant level. Coolant level should be up to
or above mounting tabs on degasser tank, when
engine is cold.
Figure 2
1. Degasser Tank
1
