ENGINE MAINTENANCE
CAUTION
Before servicing or making adjustments to the
machine, stop engine and remove key from the
switch.

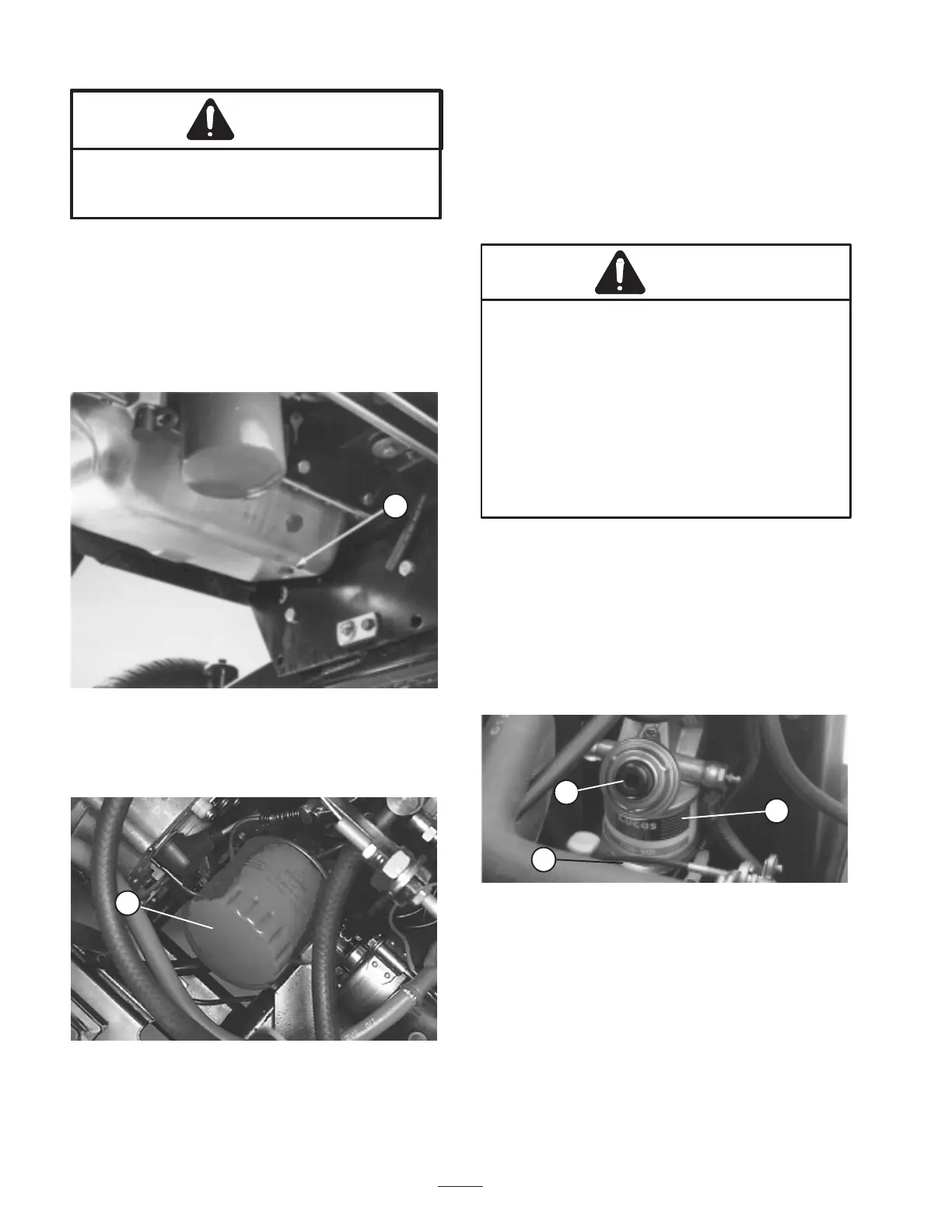

ENGINE OIL AND FILTER (Fig. 29-30)
Change oil and filter initially after the first 50 hours of
operation, thereafter change oil and filter every 100
hours.
1. Remove drain plug (Fig. 29) and let oil flow into
drain pan. When oil stops, install drain plug and new
plug seal.
Figure 29
1. Drain Plug
1
2. Remove oil filter (Fig. 30). Apply a light coat of clean
oil to the new filter seal before screwing it on. DO NOT
OVER-TIGHTEN.
Figure 30
1. Oil Filter
1
3. Add 15W-40 CD oil to crankcase. Capacity is 5.3
quarts with filter.
FUEL SYSTEM (Fig. 31)
Fuel Tank
Drain and clean fuel tank every 800 hours of operation
or yearly, whichever comes first. Also, drain and clean
tank if fuel system becomes contaminated or if machine
is to be stored for an extended period. Use clean fuel to
flush out the tank.
DANGER
Because diesel fuel is highly flammable,
use caution when storing or handling it.
Do not smoke while filling the fuel tank. Do
not fill fuel tank while engine is running,
hot, or when machine is in an enclosed
area. Always fill fuel tank outside and wipe
up any spilled diesel fuel before starting
the engine. Store fuel in a clean, safety-
approved container and keep cap in place.
Use diesel fuel for the engine only; not for
any other purpose.
Fuel Lines and Connections
Check lines and connections every 400 hours or yearly,
whichever comes first. Inspect for deterioration,
damage, or loose connections.
Draining Fuel Filter / Water Separator
Drain water or other contaminants from fuel filter / water
separator daily.
1. Place a clean container under fuel filter.
Figure 31
1. Fuel Filter / Water Separator
2. Drain Screw
3. Primer Plunger
3
1
2
2. Loosen drain thumb screw on side of fuel filter and
press primer plunger until only fuel is evident draining
into container.
3. Tighten drain screw.
Changing Fuel Filter
Replace fuel filter if fuel flow becomes restricted, after
every 400 hours of operation or annually, whichever
comes first.
