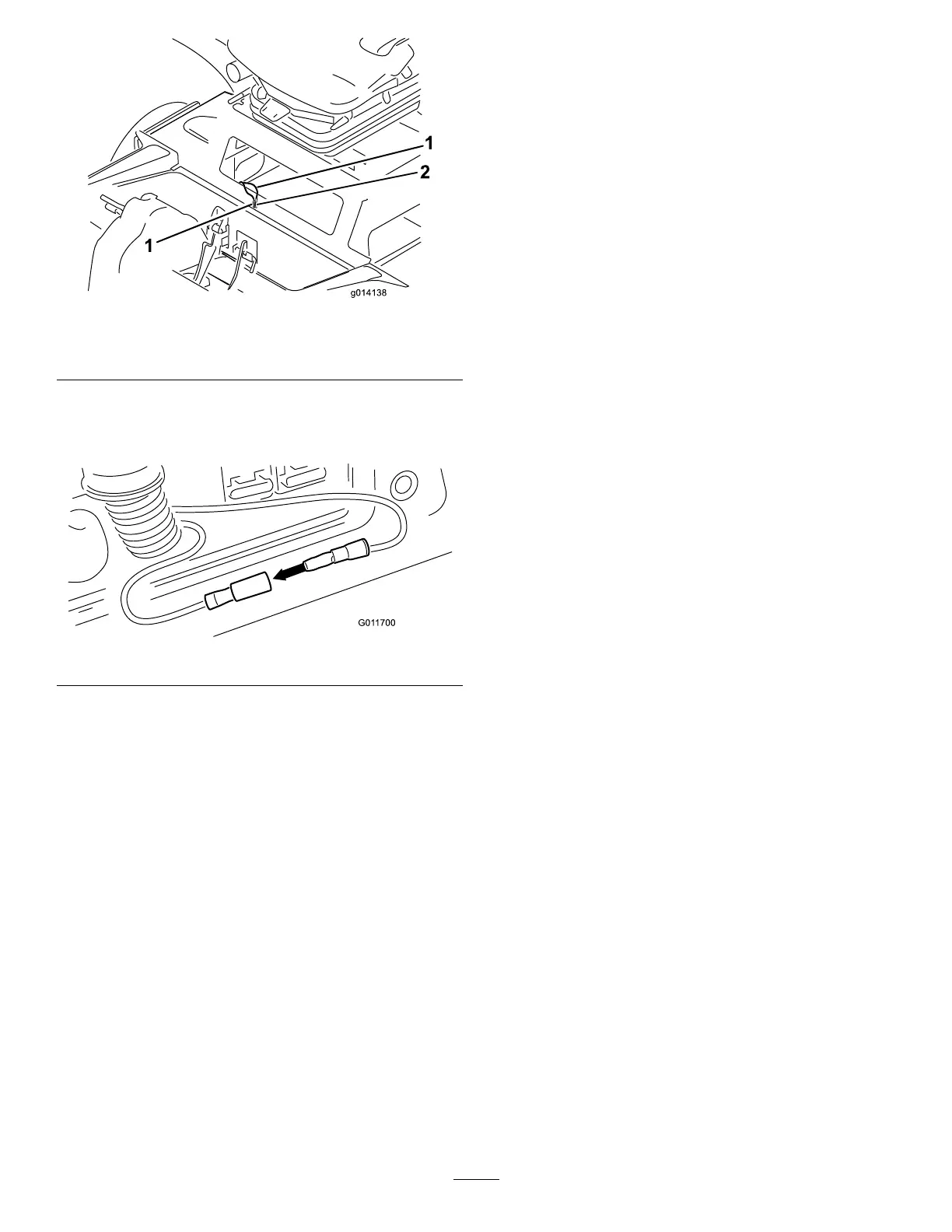

Figure57
1.Counterbalancejumper
wires
2.Wirecap
4.WiththekeyintheOFFposition,removethecap
fromjumperwiresandplugthewirestogether
(Figure58).
Figure58
5.TurnthekeytotheRUNpositionbutDONOT
startthemachine.
6.Thecurrentcounterbalancesettingwillashonthe
diagnosticlight.Thesystemallowsfor3settings.
7.Thecounterbalancesettingischangedbyusing
thecenterRaise-Lowerswitch.Tochangethe
counterbalancesettingproceedasfollows:
•Movingtheswitchforwardtothelowerposition
andreleasingitwilllowerthecounterbalance
setting,thusincreasingtheeffectiveweightof
eachcuttingdeckintheturf
•Movingtheswitchrearwardtotheraiseposition
andreleasingitwillincreasethecounterbalance
setting,thusdecreasingtheeffectiveweightof
eachcuttingdeckintheturf
•Aftertheswitchisreleased,thediagnosticlight
willashthenewcounterbalancesetting(1,2,
or3).
8.Whenthedesiredsettingisattained,rotatethekey
totheOffposition.
9.Unplugthejumperwires,installthecaponthewires
andputthewiresbackintothecompartment.
10.Replacetheaccesscover.
Note:Themachinecannotbeoperatedwhilein
thecounterbalanceadjustmentmode.Oncethe
adjustmenthasbeencompleted,movethemachine
toatestareaandoperatethemachinewiththe
newsetting.Thenewcounterbalancedsettingmay
changetheeffectiveheightofcut.
