g225609

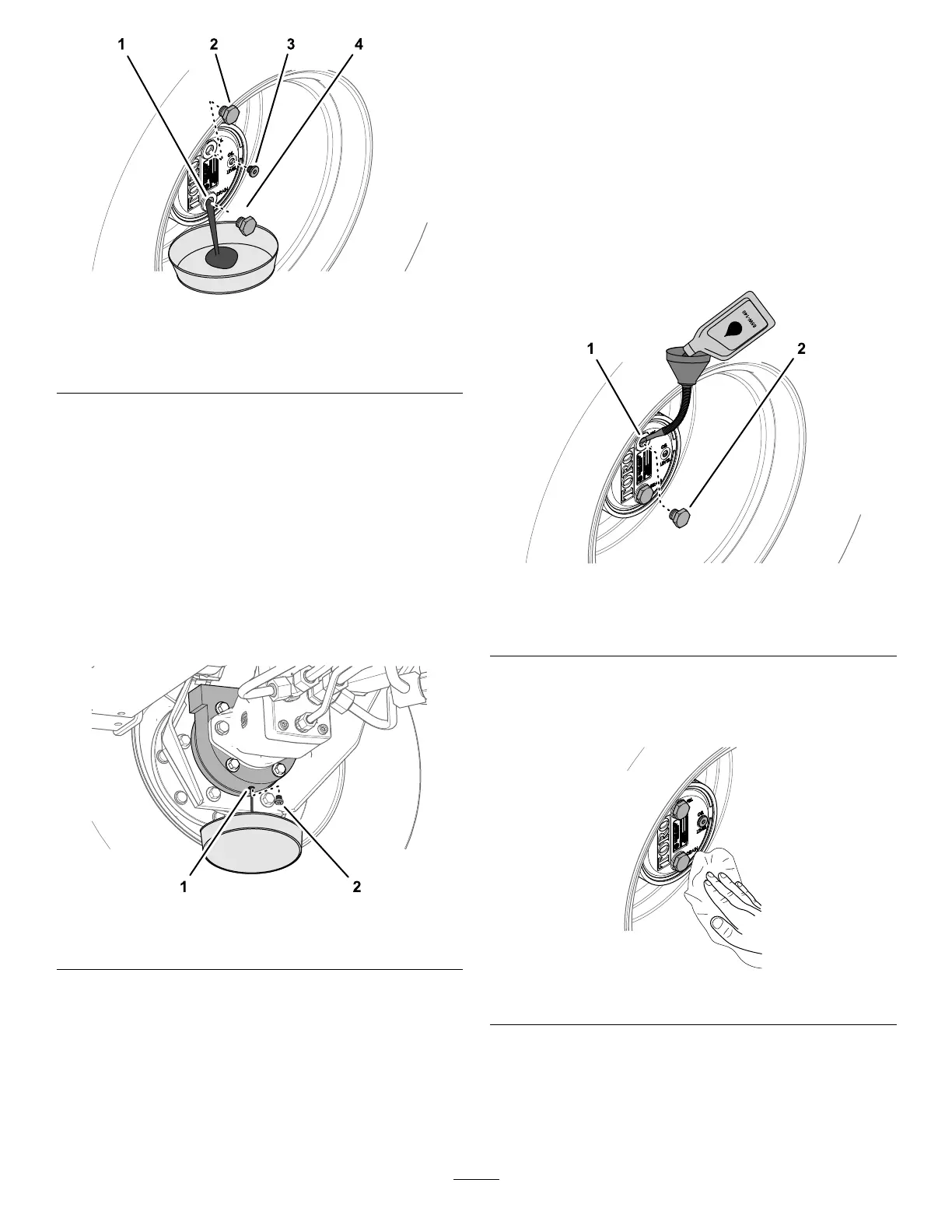

Figure61
1.Drain-plughole
3.Checkplug
2.Fillplug4.Drainplug
3.Placeadrainpanundertheplanetaryhub,
removethedrainplugatthe6o’clockposition,
andallowtheoiltofullydrain(Figure61).
4.ChecktheO-ringsforthell,check,anddrain
plugsforwearordamage.
Note:ReplacetheO-ring(s)asneeded.
5.Installthedrainplugintothedrainholeofthe
planetaryhousing(Figure61).
6.Placeadrainpanunderthebrakehousing,
removethedrainplug,andallowtheoiltofully
drain(Figure62).
g225608
Figure62
1.Drainhole(brakehousing)
2.Drainplug
7.ChecktheO-ringfortheplugforwearordamage
andinstallthedrainplugintothebrakehousing.
Note:ReplacetheO-ringasneeded.
FillingthePlanetary-Gear-Drive
withLubricant
1.Throughthell-plughole,slowlylltheplanetary
with0.65L(22oz)ofhighqualitySAE
85W-140wtgearlube.
Important:Iftheplanetaryllsbeforethe
0.65L(22oz)ofoilisadded,wait1hour
orinstalltheplugandmovethemachine
approximatelytenfeettodistributetheoil
throughthebrakesystem.Then,removethe
plugandaddtheremainingoil.
g225610
Figure63
1.Fill-plughole(planetary
housing)
2.Fillplug
2.Installthellplugandthecheckplug.
3.Wipecleantheplanetaryandbrakehousings
(Figure64).
g225607
Figure64
4.Repeatsteps1through7inDraining
thePlanetary-Gear-Drive(page53)and
steps1through3inthisprocedureforthe
planetary/brakeassemblyattheothersideof
themachine.
