AdjustingtheSkids
Theskidsshouldbemountedinthelowerpositionwhen
operatinginheightofcutsgreaterthan64mm(2–1/2inches)
andinthehigherpositionwhenoperatinginheightofcuts
lowerthan64mm(2–1/2inches).
Adjusttheskidsbyremovingtheangeboltandnuts,
positioningthemasdesired,andinstallingthefasteners

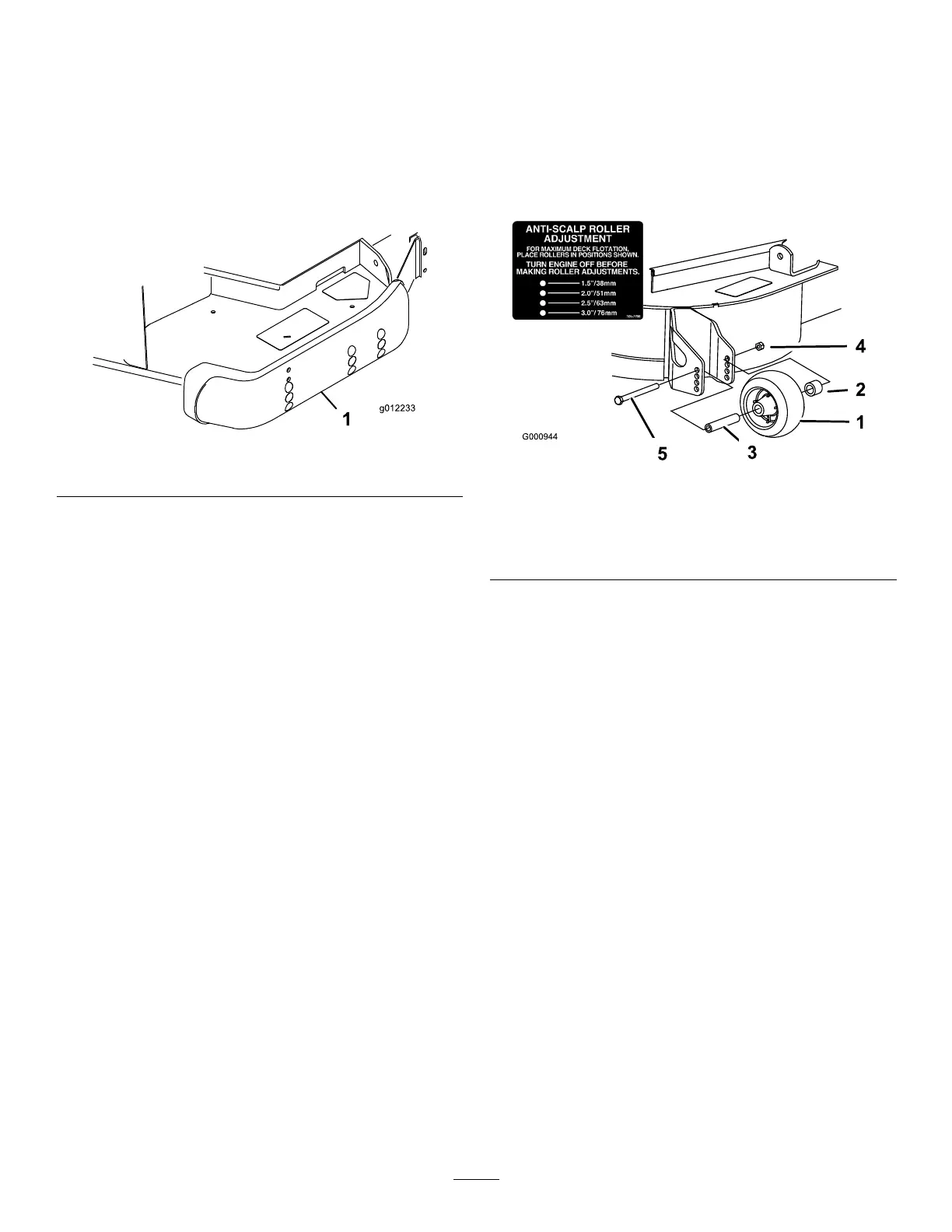

(Figure12).
Figure12
1.Skid
AdjustingtheAnti-Scalp
Rollers
Wheneveryouchangetheheight-of-cut,itisrecommended
toadjusttheheightoftheanti-scalprollers.
1.Afteradjustingtheheight-of-cut,adjusttherollersby
removingtheangenut,bushing,spacer,andbolt
(Figure13).
Figure13
1.Anti-scalproller4.Flangenut
2.Spacer
5.Bolt
3.Bushing
2.Selectaholesotheanti-scalprollerispositionedtothe
nearestcorrespondingheight-of-cutdesired.
3.Installtheangenut,bushing,spacer,andbolt.Torque
to54-61N-m(40-45ft-lb)(Figure13).
AdjustingtheFlowBafe
(Model31336only)
Themowerdischargeowcanbeadjustedfordifferenttypes
ofmowingconditions.Positionthecamlocksandbafeto
givethebestqualityofcut.
1.Toadjustthecamlocks,swingtheleveruptoloosen
thecamlock(Figure14).
2.Adjustthebafeandcamlocksintheslotstothe
desireddischargeow.
