Lubrication
ServiceInterval:Every50hours
Themachinehasgreasettingsthatmustbelubricated
regularlywithNo.2General-purposeLithium-baseGrease.
Ifthemachineisoperatedundernormalconditions,lubricate
allbearingsandbushingsafterevery50hoursofoperationor
immediatelyaftereverywashing.

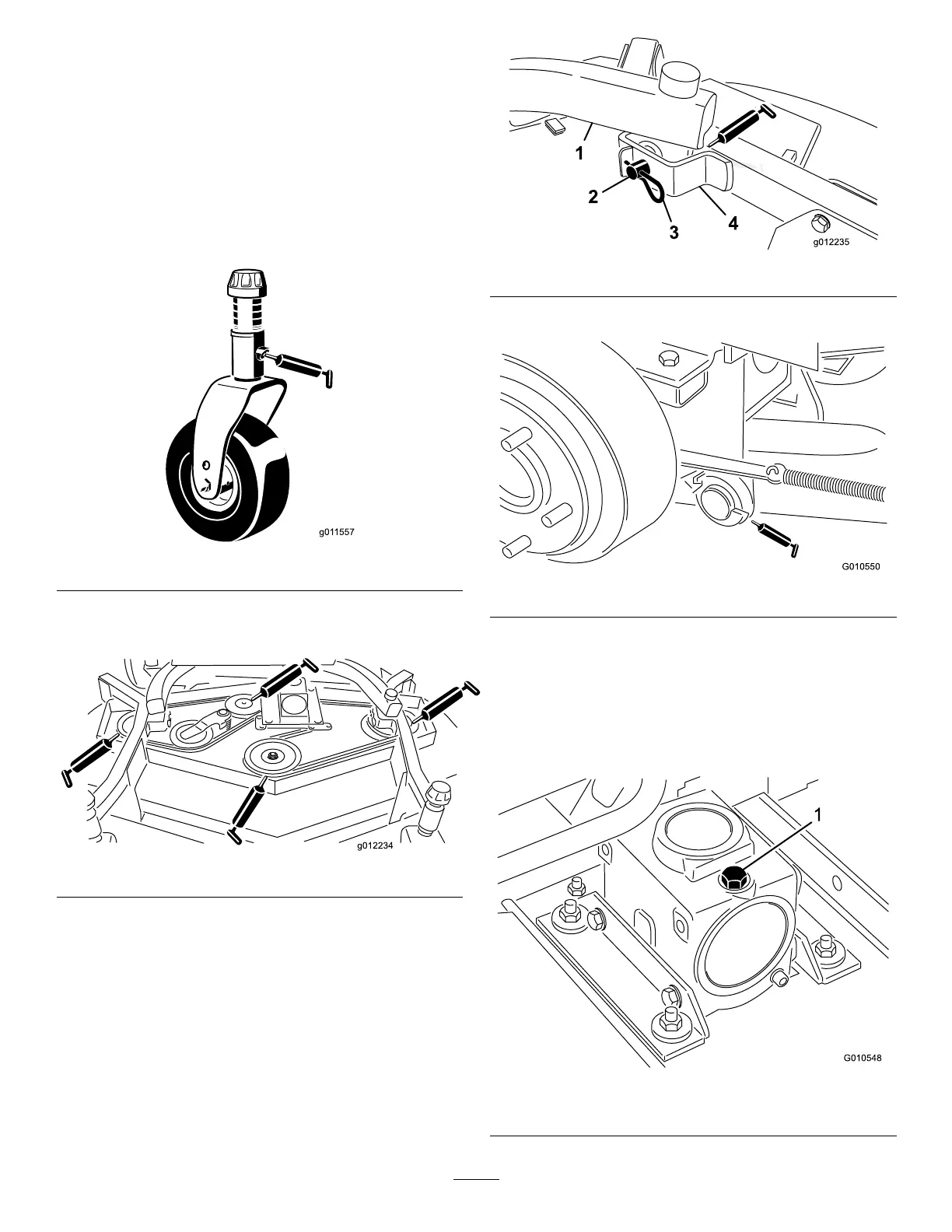

1.Lubricatethefollowingareas:
•Castorforkshaftbushings(4)(Figure19).
Figure19
•Spindleshaftbearings(3)(locatedunderthepulley)
(Figure20)
Figure20
•Idlerarmshaftbearings(Figure20)
•Liftarmpivots,front(2)(Figure21)
Figure21
•Liftarmpivots,rear(2)(Figure22)
Figure22
2.Positionthemachineandcuttingunitonalevelsurface
andlowerthecuttingunit.Removethedipstick/ll
plugfromthetopofthegearbox(Figure23)andmake
surethatthelubricantisbetweenthemarksonthe
dipstick.Ifthelubricantlevelislow,addSAE80-90
wt.gearlubeuntilthelevelisbetweenthemarks.The
gearboxcapacityis283ml(12ounces).
Figure23
1.Dipstick/llplug
19
