Figure 10
The machine should move rearward. If the
machine does not move or moves forward,
complete the following:
A. Release the traction lever and shut of f the
engine.
B. Disconnect the trunnion from the
speed-selector lever .
C. T urn the trunnion downward (clockwise) on
the speed-control rod.
D. Connect the trunnion to the speed-selector
lever .
4. Release the traction lever .
5. Move the speed selector to Position 1; refer to
Operating the Speed Selector ( page 16 ) .
6. Squeeze the left (traction) lever to the handgrip
( Figure 10 ).
The machine should move forward. If the
machine does not move or moves rearward,
complete the following:
A. Release the traction lever and shut of f the
engine.
B. Disconnect the trunnion from the
speed-selector lever .
C. T urn the trunnion upward (counterclockwise)
on the speed-control rod.
D. Connect the trunnion to the speed-selector
lever .
7. If you made any adjustments, repeat this
procedure until no adjustments are required.
Important: If the machine moves when the
traction lever is in the released position, check the
traction cable; refer to Checking and Adjusting
the T raction Cable ( page 20 ) or take the machine
to an Authorized Service Dealer for service.
Product Overview
g254701

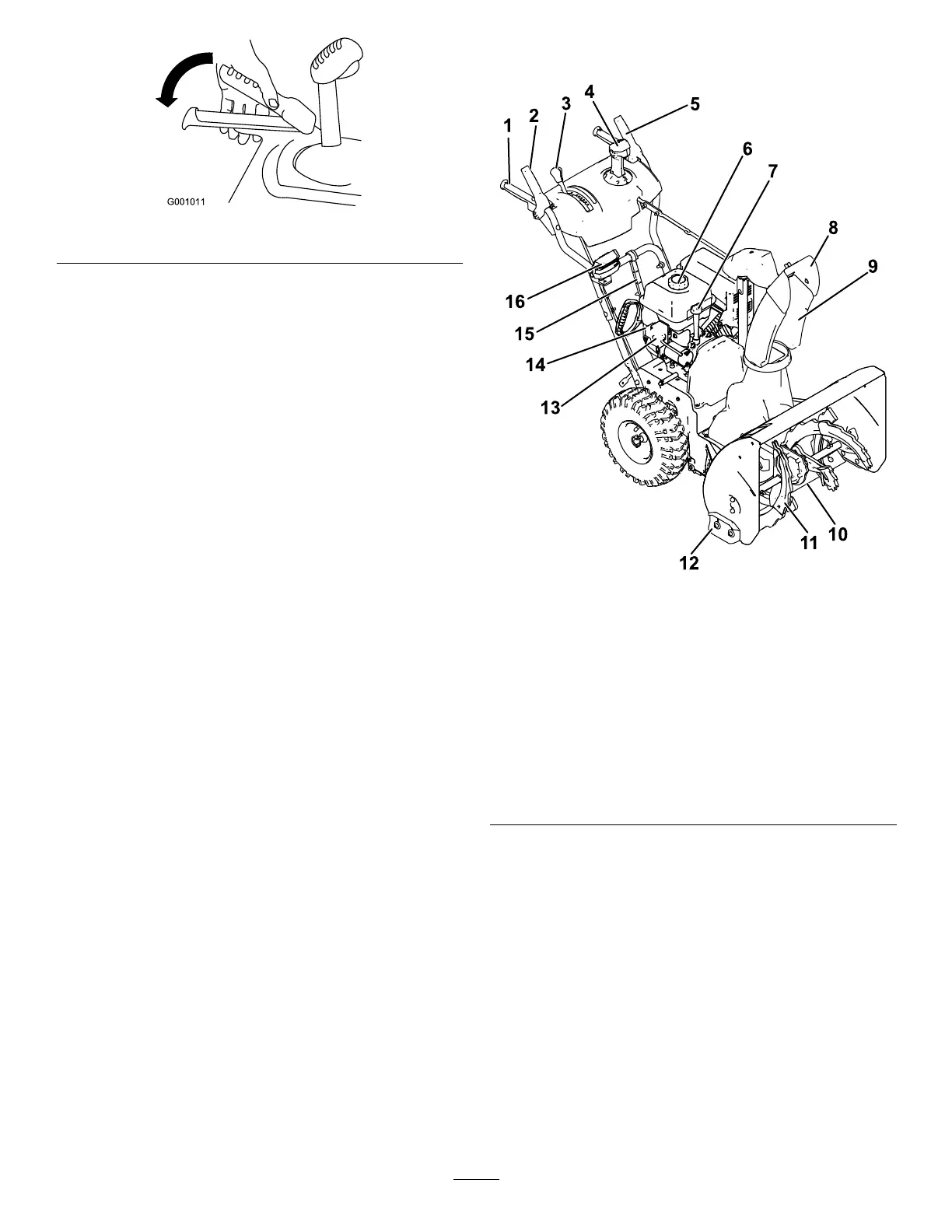

Figure 1 1
1. Handgrip (2)
9. Discharge chute
2. Auger/impeller lever 10. Scraper
3. Speed-selector lever
1 1. Auger
4. Quick Stick®
discharge-chute control
12. Skid (2)
5. T raction lever 13. Electric-start button
6. Fuel-tank cap 14. Electric-start plug-in
7. Oil-ll tube/dipstick 15. Snow-cleanout tool
8. Chute deector 16. Headlight (Model 37799
only)
