Toro 37807 - Checking and Adjusting the Auger;Impeller Cable

If the machine does not drive in the forward or reverse
speeds or it drives when you release the traction lever ,
adjust the traction cable.
If the left (traction) cable is not properly adjusted, do
the following steps:
1. Loosen the jam nut.

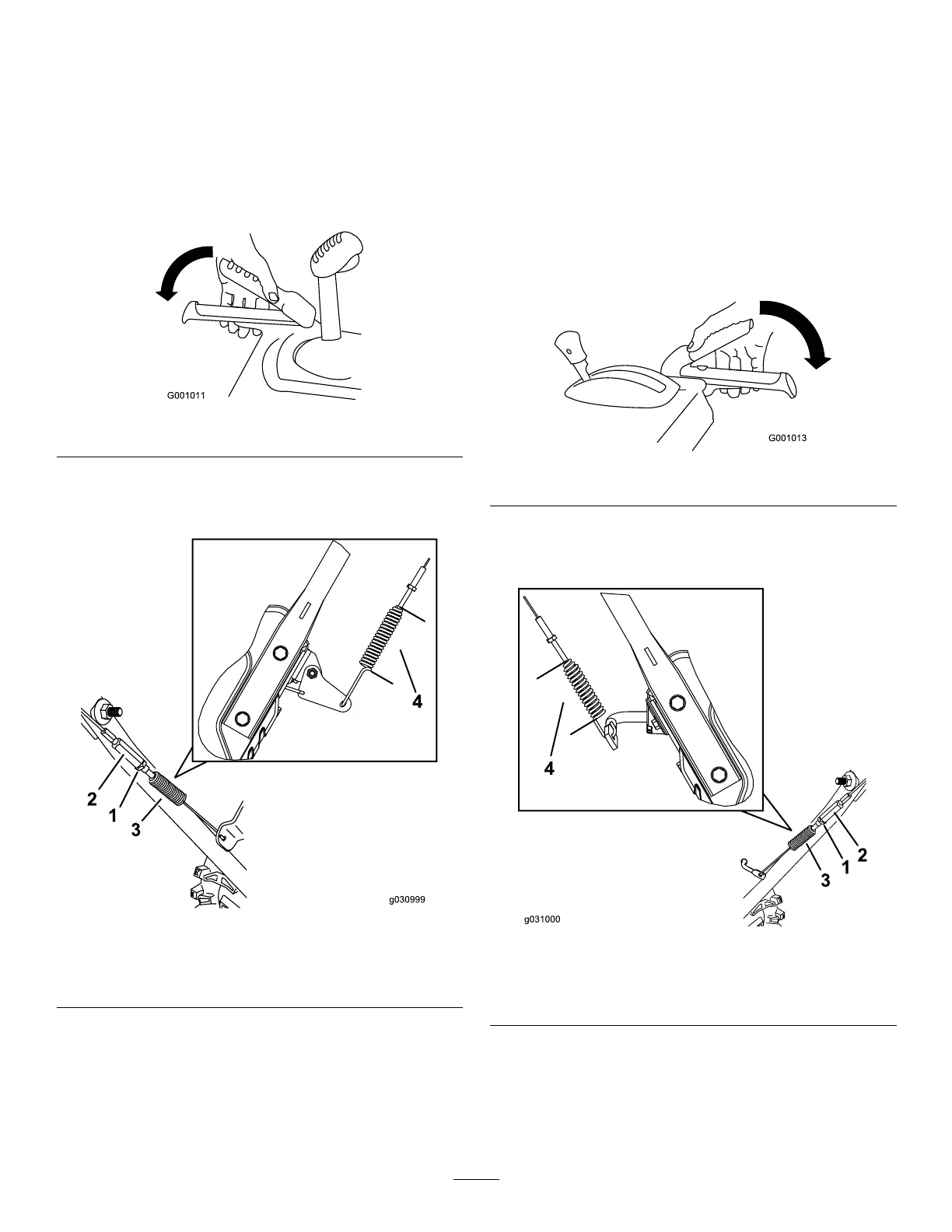

2. Engage the traction lever and hold it in place
( Figure 26 ).
g00101 1
Figure 26
3. Loosen or tighten the turnbuckle to adjust the
spring length to 5.5 cm (2–3/16 inches) as
shown in Figure 27 .
g030998
Figure 27
1. Jam nut
3. Spring
2. T urnbuckle
4. 5.5 cm (2–3/16 inches)
4. T ighten the jam nut ( Figure 27 ), ensuring that
there is slight tension on the cable.
5. If the traction cable is properly adjusted but a
problem remains, contact an Authorized Service
Dealer .
Checking and Adjusting the
Auger/Impeller Cable
Service Interval : After the rst 2 hours —Inspect the
auger/impeller cable and adjust it if
necessary .
Y early —Inspect the auger/impeller cable and
adjust or replace it if necessary .
1. Loosen the jam nut.
2. Engage the auger/impeller lever and hold it in
place ( Figure 28 ).
g001013
Figure 28
3. Loosen or tighten the turnbuckle to adjust the
spring length to 7 cm (2-3/4 inches) as shown
in Figure 29 .
g031000
Figure 29
1. Jam nut
3. Spring
2. T urnbuckle
4. 7 cm (2-3/4 inches)
4. T ighten the jam nut ( Figure 29 ), ensuring that
there is slight tension on the cable.
5. If the auger/impeller cable is properly adjusted
but a problem remains, contact an Authorized
Service Dealer .
