ProductOverview
g013108

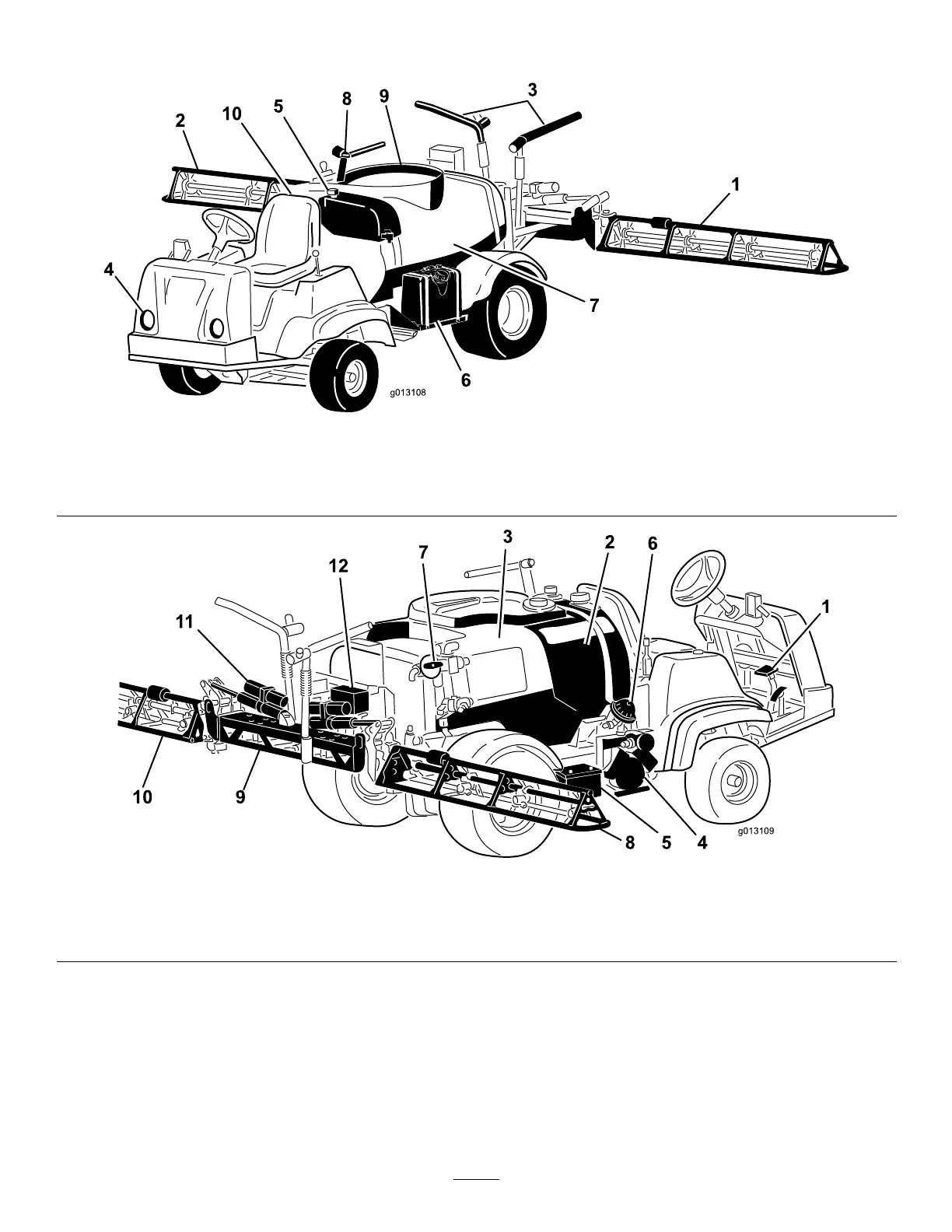

Figure9
1.Leftboom
4.Headlight
7.Chemicaltank10.Operator’sposition
2.Rightboom5.Freshwatertank
8.Anti-SiphonReceptacle
3.Boomtransportcable6.Fueltank9.Tanklid
g013109
Figure10
1.Pedals4.Pump7.Agitationcontrolvalve
10.Leftboom
2.Rinsetank5.Battery8.Rightboom11.Boomcontrolcylinder
3.Chemicaltank
6.Pumppressuredampener
9.Centerboom
12.Valvecluster
