Multi Pro 1750 Page 7 − 3 Drive Train
General Information
Operator’s Manual
The Operator’s Manual provides information regarding
the operation, general maintenance and maintenance
intervals for your Multi Pro machine. Refer to that publi-
cation for additional information when servicing the ma-
chine.
Drive Train Operation
Multi Pro 1750 sprayers are equipped with a transaxle
with 3 forward speed ranges, 1 reverse range, a neutral
position and a differential lock feature. The transaxle is
a constant mesh, collar shift transmission with synchro-
nizers for speed ranges 1, 2 and 3. Two (2) shift cables
from the shift lever assembly on the operator console al-
low transaxle shifting. Shifting from forward into reverse
or from reverse into forward must be done with the ve-
hicle stationary. A separate lever and cable operate the
differential lock.
The transaxle is bolted to the vehicle frame. Two (2)
heavy duty universal driveshafts transfer power from the
transaxle to the rear wheels.
The transaxle housing also functions as the hydraulic
system reservoir.

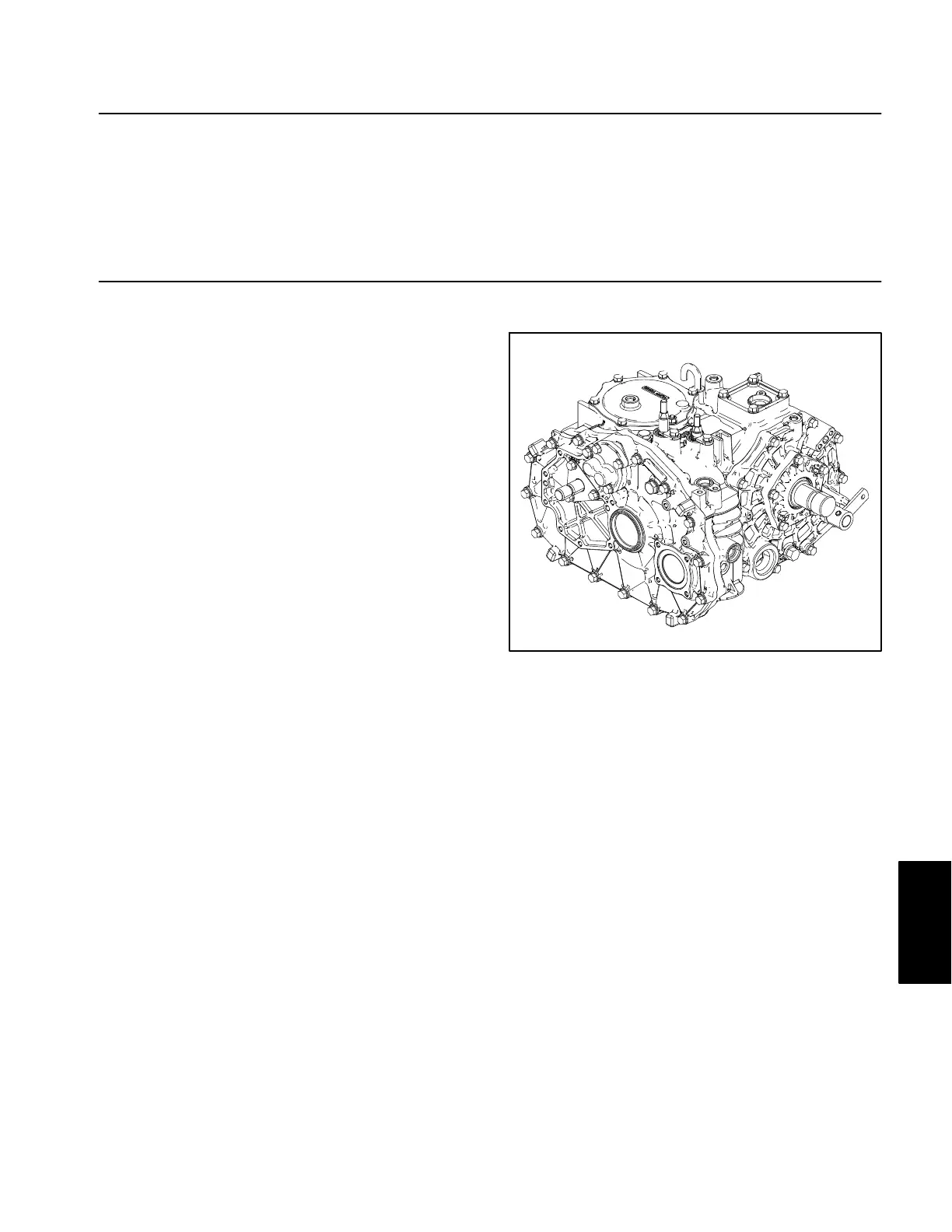

Figure 1
Transaxle Assembly
Drive Train
