Multi Pro 1750 Page 3 − 9 Kohler Gasoline Engine
Adjust Clutch Cable
1. Park machine on a level surface, stop engine, en-
gage parking brake and remove key from the ignition
switch.
2. Release the latch on the back of the seat and lift the
seat forward to access the engine.
3. Disconnect clutch return spring (Fig. 4).
4. Apply 4 lbs (kg) force against clutch pedal and adjust
cable nuts (Fig. 4) until bottom edge of clutch pedal is
2.4 to 2.6 in (60 to 66 mm) from floor plate (Fig. 5).
5. Connect clutch return spring.
6. Make sure pedal actuates clutch switch and rests
against the hard pedal stop (switch mount) when in the
return position (Fig. 5).

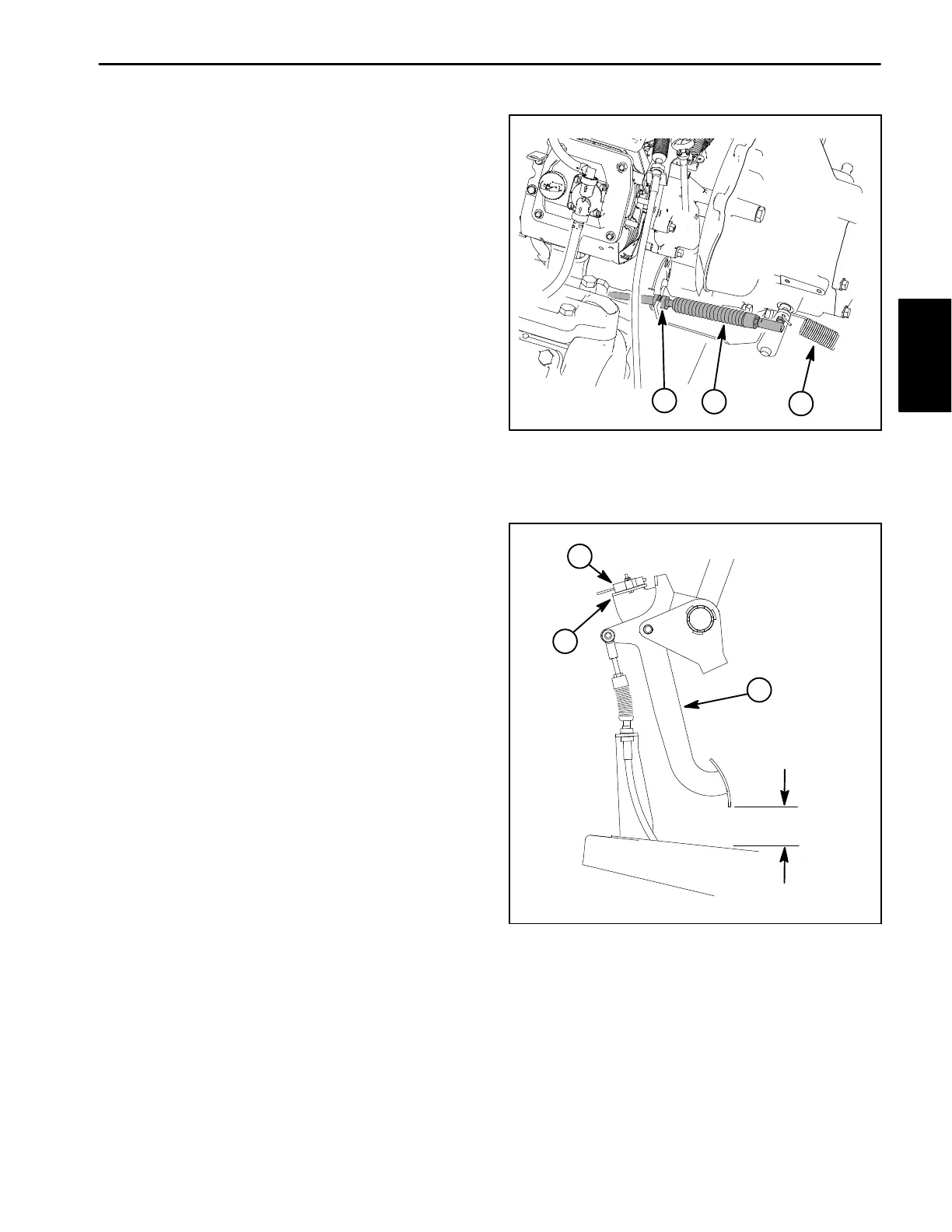

Figure 4
1. Clutch cable
2. Return spring
3. Bulkhead nuts (2)
2
1
3
Figure 5
1. Clutch pedal
2. Switch
3. Pedal stop/switch moun
1
2
3
2.4 to 2.6 in
(60 to 66 mm)
Kohler
Gasoline Engine
