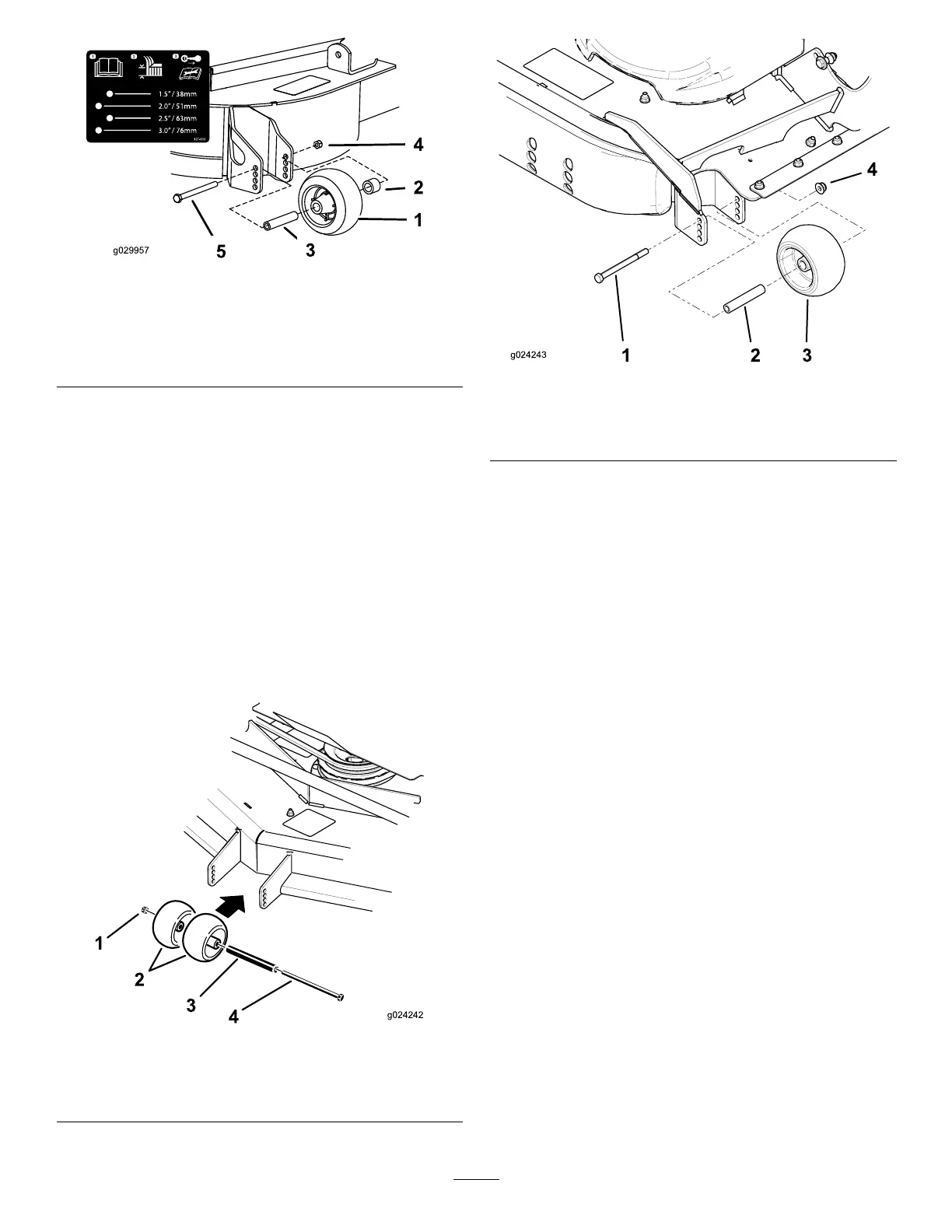

Figure32
1.Anti-scalproller4.Flangenut
2.Spacer
5.Bolt
3.Bushing
MachineswithRearDischarge
Wheneveryouchangetheheightofcut,itis
recommendedtoadjusttheheightoftheanti-scalp
rollers.
1.Parkthemachineonalevelsurface,disengage
theblade-controlswitch,andengagetheparking
brake.
2.Shutofftheengine,removethekey,andwait
forallmovingpartstostopbeforeleavingthe
operatingposition.
3.Adjusttheanti-scalprollersasshowninFigure
33andFigure34.
g024242
Figure33
1.Flangenut3.Bushing
2.Anti-scalproller4.Bolt
g024243
Figure34
1.Bolt3.Anti-scalproller
2.Bushing4.Flangenut
