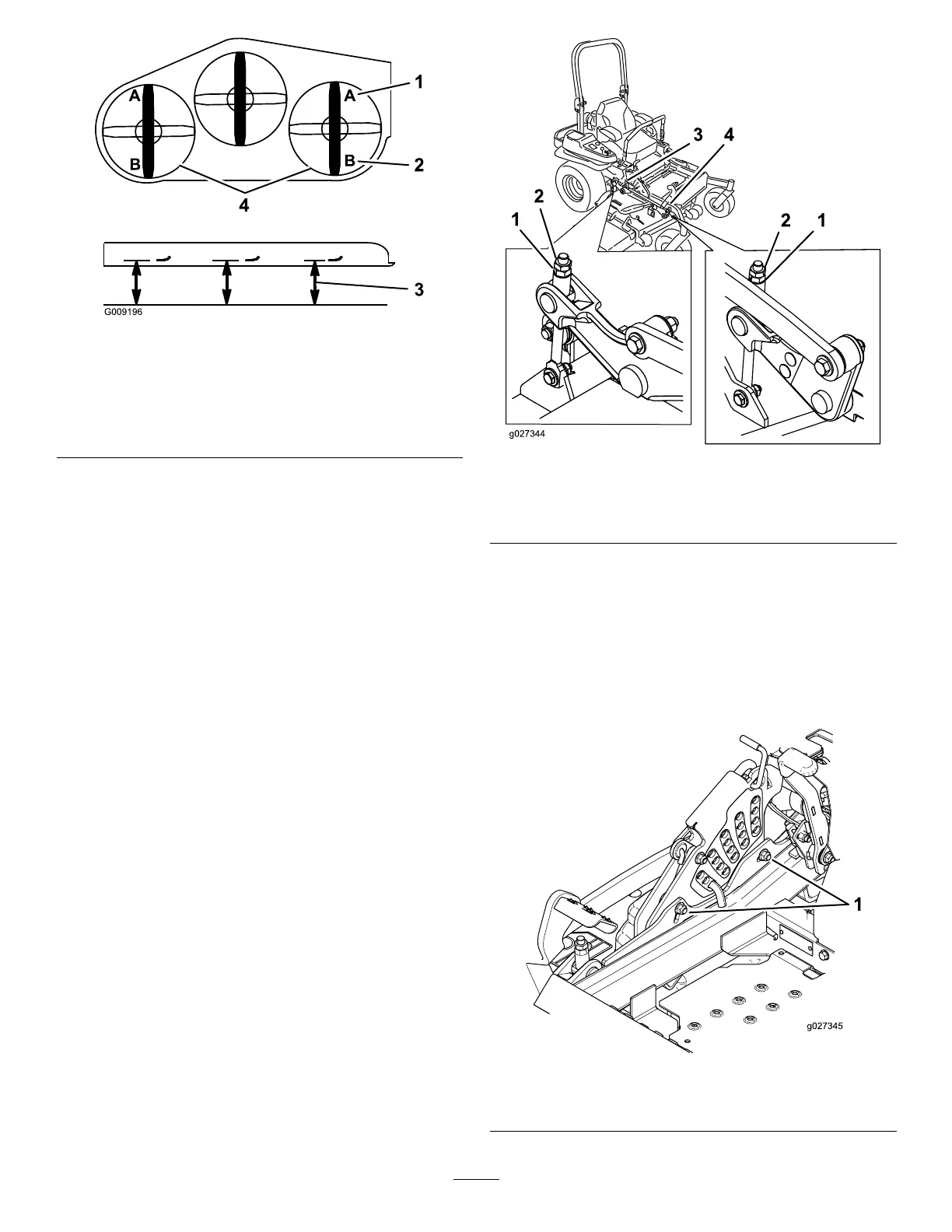

g009196
Figure113
1.7.6cm(3inch)atposition
Aiscorrect
3.Measureherefromthe
bladetiptothehard
surface
2.8.3cm(3-1/4inch)at
positionBiscorrect
4.MeasureatpositionAand
Bonbothsides
10.Fine-tunetheadjustmentnutonthefront
deck-liftassemblybyturningit(Figure114).
Note:Toincreasetheheight,turnthe
adjustmentnutclockwise;todecreasethe
height,turnthenutcounterclockwise.
Note:Ifthefrontdecklinksdonothaveenough
adjustmenttoachieveaccuratecutheight,you
canusethesingle-pointadjustmenttogain
moreadjustment.
g027344
Figure114
1.Adjustmentnut3.Reardeckadjustment
2.Jamnut4.Frontdeckadjustment
11.Toadjustthesingle-pointsystem,loosenthe
2boltsatthebottomoftheheight-of-cutplate
(Figure115).
Note:Forrear-dischargemachines,themower
deckisattachedinthebackholesatthefactory.
RefertoFigure116.Ifneeded,usethefront
holesforfurtheradjustmentwhenlevelingthe
mowerdeck.
g027345
Figure115
1.Boltsatthebottomoftheheight-of-cutplate
75
