Toro 74096 - Adjusting the Anti-Scalp Rollers; Anti-Scalp Roller Adjustment

AdjustingtheAnti-Scalp
Rollers
Formaximumdeckotation,installtherollers1hole
positionlower.Rollersshouldmaintaina6mm(1/4
inch)clearancetotheground.Donotadjustthe
rollerstosupportthedeck.
1.Parkthemachineonalevelsurface.
2.Disengagetheblade-controlswitch(PTO),move
themotion-controlleverstotheNEUTRAL-LOCK
position,andengagetheparkingbrake.
3.Shutofftheengine,removethekey,andwait
forallmovingpartstostopbeforeleavingthe
operatingposition.
4.Afteradjustingtheheightofcut,adjustthe
anti-scalprollersbyremovingthemounting
hardware.

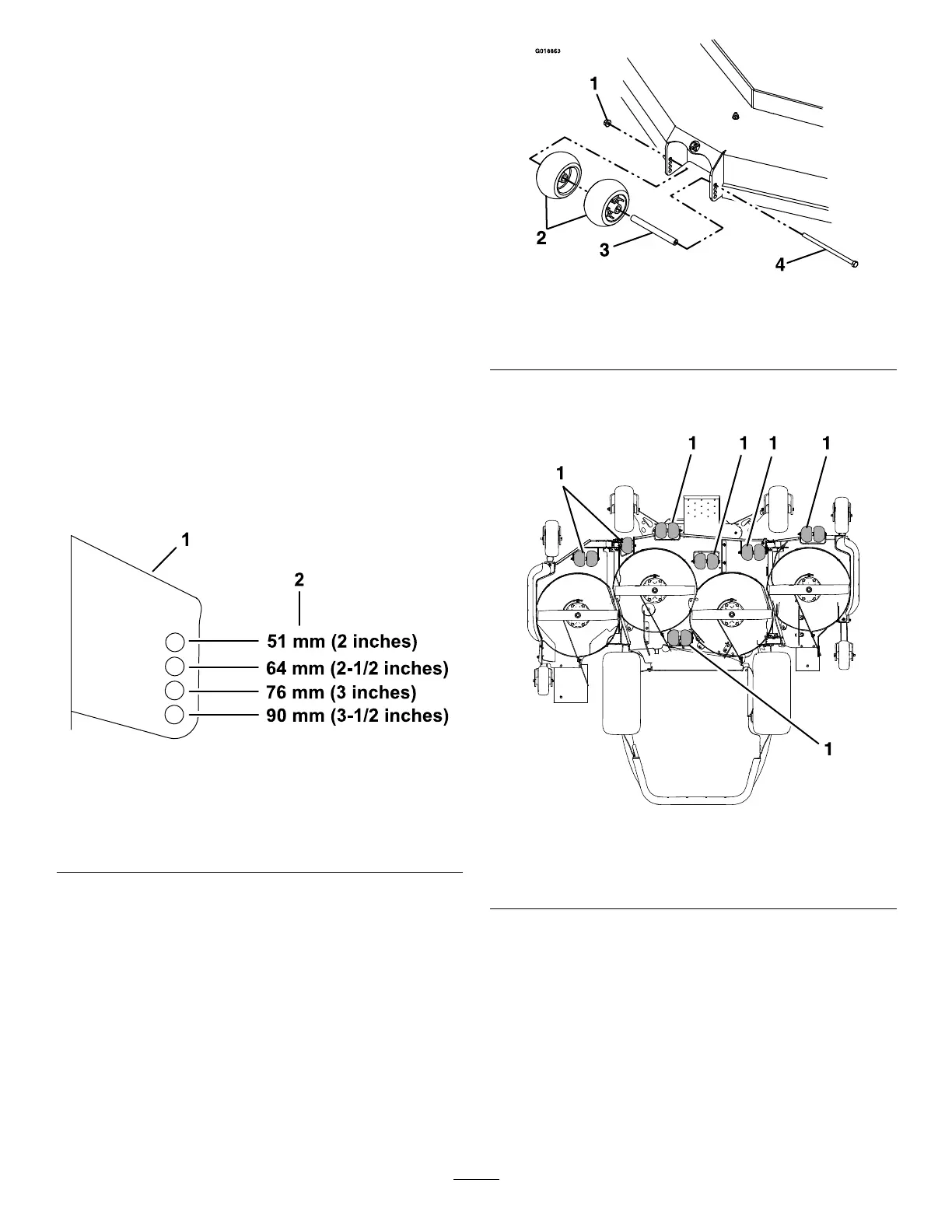

5.Placetherollersin1ofthepositionsshownin
Figure29.
Therollerswillmaintain19mm(3/4inch)
clearancetothegroundtominimizegouging
androllerwearordamage.
g243016
Figure29
Forcuttingheightsabove90mm(3-1/5inches),usethe
bottomhole.Therollersarestilleffectiveagainstscalping.
1.Anti-scalprollermounting
bracket
2.Cuttingheight
6.T orquethenylocnut(3/8inch)to41to47N∙m
(30to35ft-lb)asshowninFigure30.
g018862
Figure30
1.Nylocnut(3/8inch)3.Spacer
2.Anti-scalprollers4.Bolt
The96-inchdeckhas13anti-scalprollerlocations.
Foradjustment,refertoFigure31.
g238020
Figure31
Undersideofthemowerdeck
1.Anti-scalproller
28
