Toro 74096 - Mower Deck Maintenance; Setting up the Machine for Leveling; Leveling the Center Deck and Wing Decks

MowerDeck
Maintenance
LevelingtheMowerDeck
SettinguptheMachine
Note:Ensurethatthemowerdeckislevelbefore
matchingtheheightofcut(HOC).
1.Parkthemachineonalevelsurface,disengage
theblade-controlswitch,andengagetheparking
brake.
2.Shutofftheengine,removethekey,andwait
forallmovingpartstostopbeforeleavingthe
operatingposition.
3.Checktirepressureofthedrivetires.
Ifneeded,adjustto124kPa(18psi).
4.Positionthemowertothe102mm(4inches)
height-of-cutposition.
LevelingtheCenterDeckand
WingDecks
1.Raisethecenterdeckandfoldthewingsby
pressingdownattherearofthedeck-liftswitch.
Holdtheswitchdownuntilbothwingsare
completelyfolded.
2.Positionthemowertothe102mm(4inches)
height-of-cutposition.
3.Unlocktheleftandrightwingdeckcamlocks
(Figure71).
4.Removeandretainthewingdeckheight-of-cut
lanyard(Figure71).

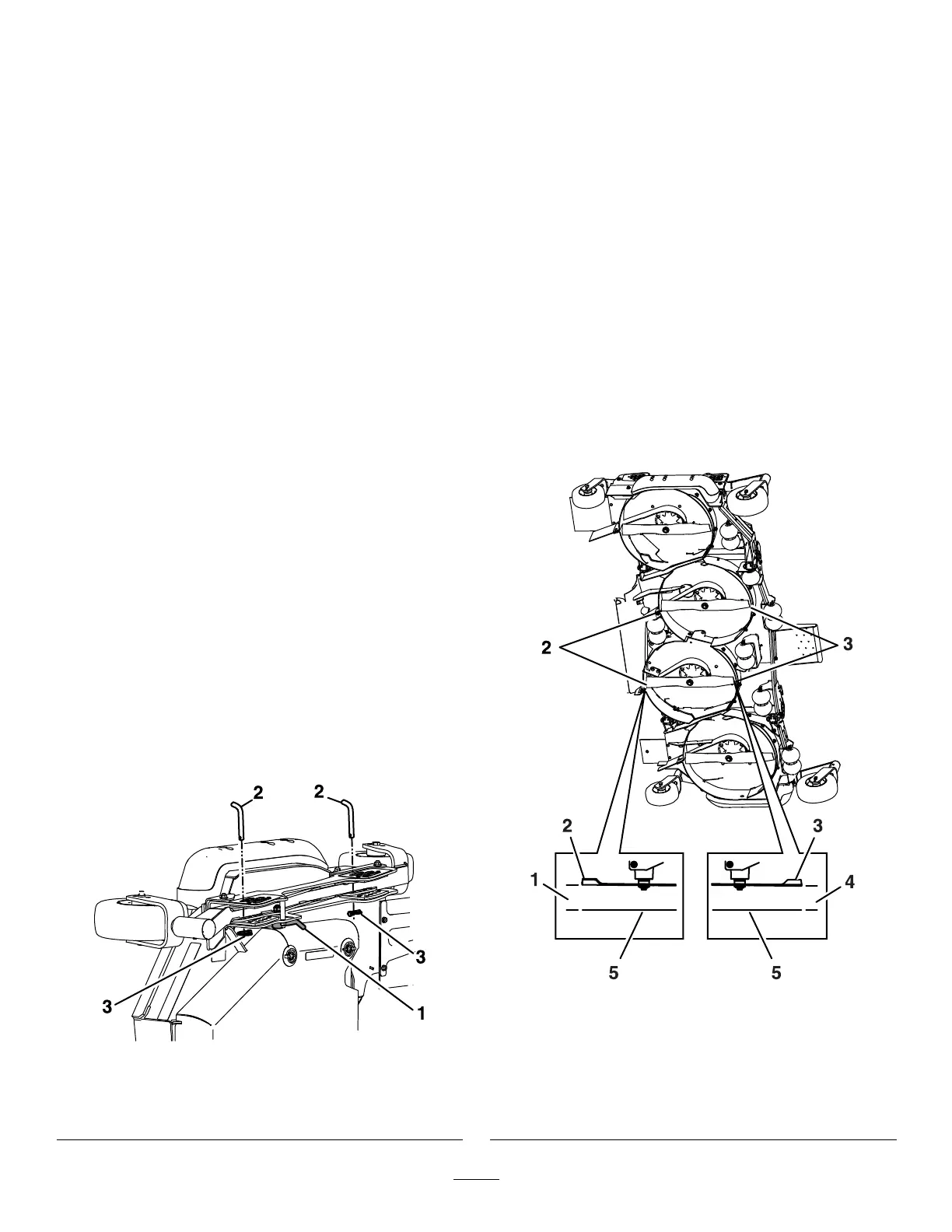

g239055
Figure71
1.Camlock
3.Lanyard
2.Clevispin
5.Inserttheheight-of-cutpinintothe102mm(4
inches)locationandinstallthelanyard.
6.Locktheeachwingdeckcamlock.
7.Starttheengine.
Note:Theparkingbrakemustbeengagedand
themotion-controlleversmustbeouttostart
theengine.Theoperatordoesnothavetobein
theseat.Ensurethatallpersonsareclearof
thedeckwings.
8.Pressandholdthefrontofthedeck-liftswitch
untilthecenterdecklowersandbothwingsare
completelyunfoldedtothecuttingheight.
9.Shutofftheengine,removethekey,andwait
forallmovingpartstostopbeforeleavingthe
operatingposition.
10.Measurefromthelevelsurfacetothefronttipof
theleftandrightcenterdeckblades(Figure72).
Themeasurementshouldread102mm(4
inches).
g239092
Figure72
1.108mm(4-1/4inches)
2.Rearbladetip
3.Frontbladetip
4.102mm(4inches)
5.Levelsurface
57
