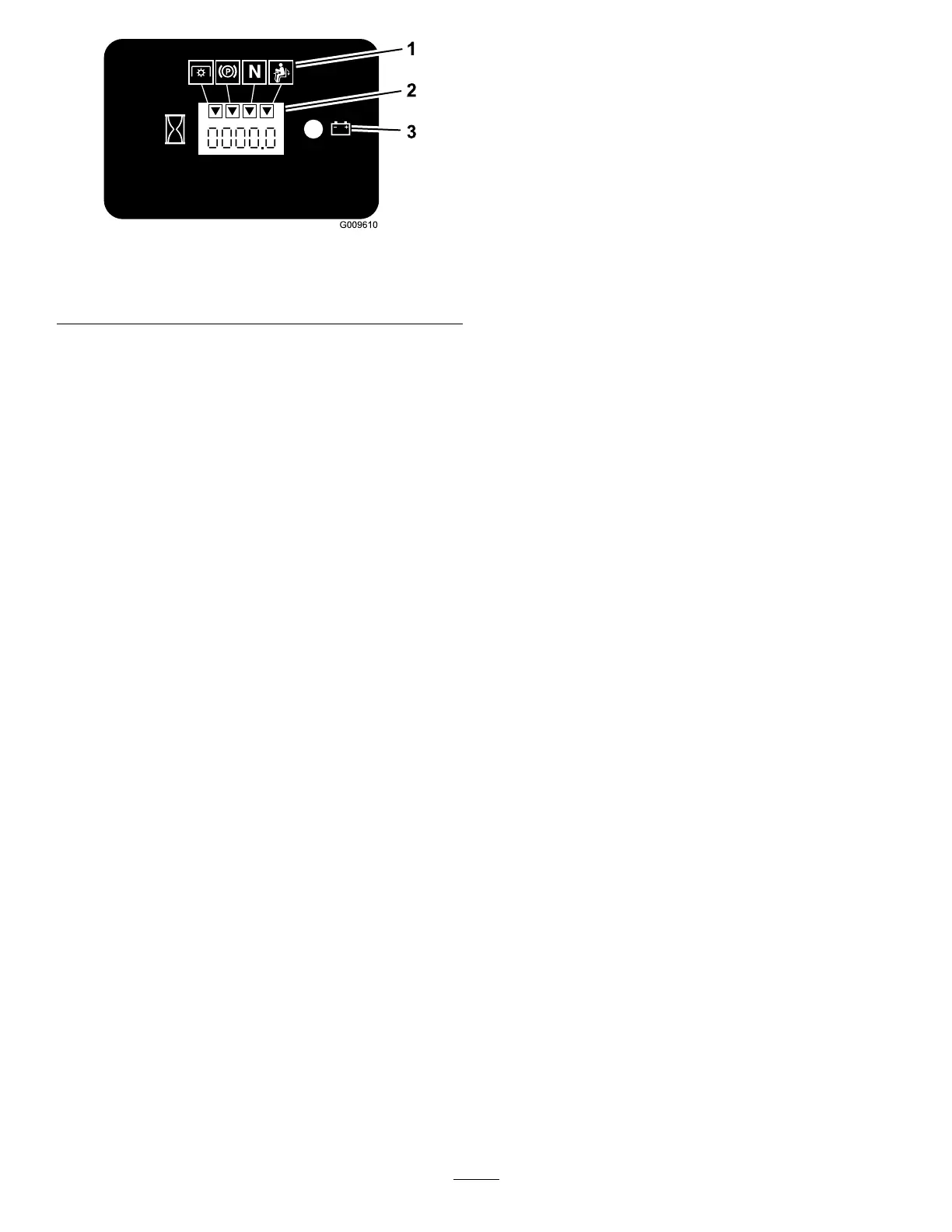

g009610
Figure5
1.Safety-interlocksymbols
3.Batterylight
2.Hourmeter
ThrottleControl
ThethrottlecontrolisvariablebetweenFASTand
SLOW.
Blade-ControlSwitch(PTO)
Theblade-controlswitch(PTO)isusedtoengage
theelectricclutchtodrivethemowerbladeswiththe
motion-controlleversinthecenter,unlockedposition.
Pulltheswitchuptoengagethebladesandrelease.
Todisengagetheblades,pushtheblade-control
switch(PTO)down.
Neutral-LockPosition
TheNEUTRAL-LOCKpositionisusedwiththe
safety-interlocksystemandtodetermineNEUTRAL
position.
IgnitionSwitch
Thisswitchisusedtostartthemowerengineandhas
3positions:START,RUN,andOFF.
Glow-PlugLight
Theglowplugindicatorlightturnsonwhenthe
glow-plugbuttonisengaged(Figure4).
Glow-PlugSwitch
Thisswitchactivatestheglowplugsandisindicated
bytheglow-pluglight.Holddowntheglow-plugswitch
for10secondspriortostarting.
Engine-TemperatureLight
Theengine-temperaturelightcomesonwhenthe
engineisoverheating(Figure4).
AudibleAlarm
Thismachinehasanaudiblealarmthatalertstheuser
toturnofftheengineorenginedamagecanoccur
fromoverheating.RefertoServicingtheCooling
SysteminCoolingSystemMaintenance(page47).
Fuel-SelectorValve
Thefuel-selectorvalveislocatedbehindtheseat.
Closethefuel-selectorvalvewhentransportingor
storingmower.
Movetheselectorvalvetotheleftorrightpositionfor
operation.
Attachments/Accessories
AselectionofT oroapprovedattachmentsand
accessoriesisavailableforusewiththemachineto
enhanceandexpanditscapabilities.Contactyour
AuthorizedServiceDealerorDistributororgoto
www.T oro.comforalistofallapprovedattachments
andaccessories.
Tobestprotectyourinvestmentandmaintainoptimal
performanceofyourT oroequipment,countonToro
genuineparts.Whenitcomestoreliability,Toro
deliversreplacementpartsdesignedtotheexact
engineeringspecicationofourequipment.Forpeace
ofmind,insistonT orogenuineparts.
