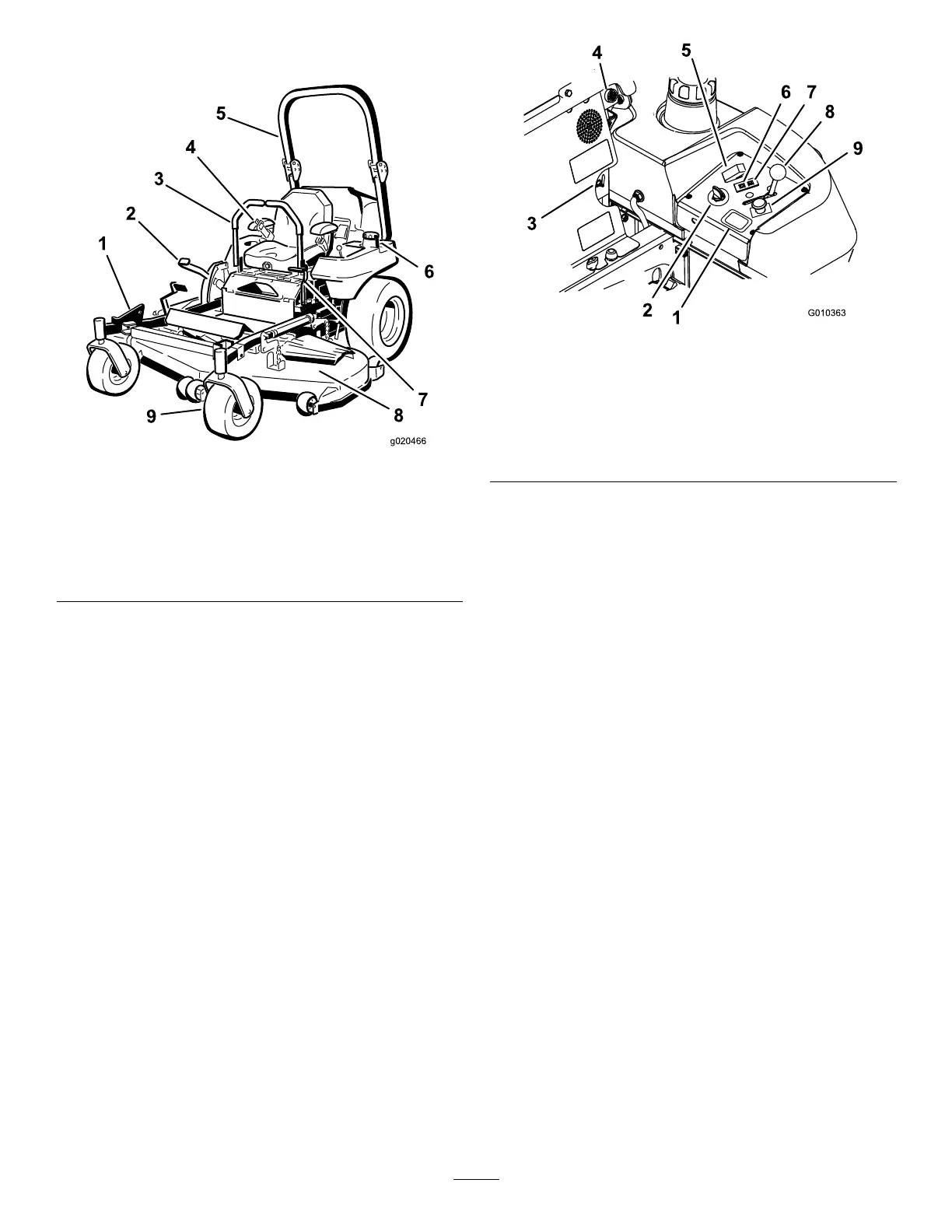

ProductOverview
g020466
Figure3
1.ZStand
©
6.Fuelcap(bothsides)
2.Height-of-cutlever
7.Parking-brakelever
3.Motion-controllever8.Mowerdeck
4.Seatbelt9.Casterwheel
5.Rollbar
Controls
Becomefamiliarwithallthecontrolsbeforeyoustart
theengineandoperatethemachine(Figure3and
Figure4).
g010363
Figure4
1.Hourmeter
6.Glow-pluglight
2.Ignitionswitch7.Engine-temperaturelight
3.Fuel-selectorvalve8.Throttlecontrol
4.Audiblealarm
9.PTOSwitch
5.Glow-plugswitch
HourMeter
Thehourmeterrecordsthenumberofhoursthe
enginehasoperated.Itoperateswhentheengine
isrunning.Usethesetimesforschedulingregular
maintenance(Figure4).
Safety-InterlockIndicators
Therearesymbolsonthehourmeterandtheyindicate
withablacktrianglethattheinterlockcomponentisin
thecorrectposition(Figure5).
BatteryIndicatorLight
WhentheignitionkeyisinitiallyturnedtotheRUN
positionforafewseconds,thebatteryvoltageis
displayedintheareawherethehoursarenormally
displayed.
Thebatterylightturnsonwhentheignitionisturned
onandwhenthechargeisbelowthecorrectoperating
level(Figure5).
