Toro 74279TE - Changing the Seat Suspension; Unlatching the Seat; Pushing the Machine by Hand

ChangingtheSeat
Suspension
Theseatisadjustabletoprovideasmoothand
comfortableride.Positiontheseatwhereyouare
mostcomfortable.
Toadjustit,turntheknobinfronteitherdirectionto
providethebestcomfort(Figure22).

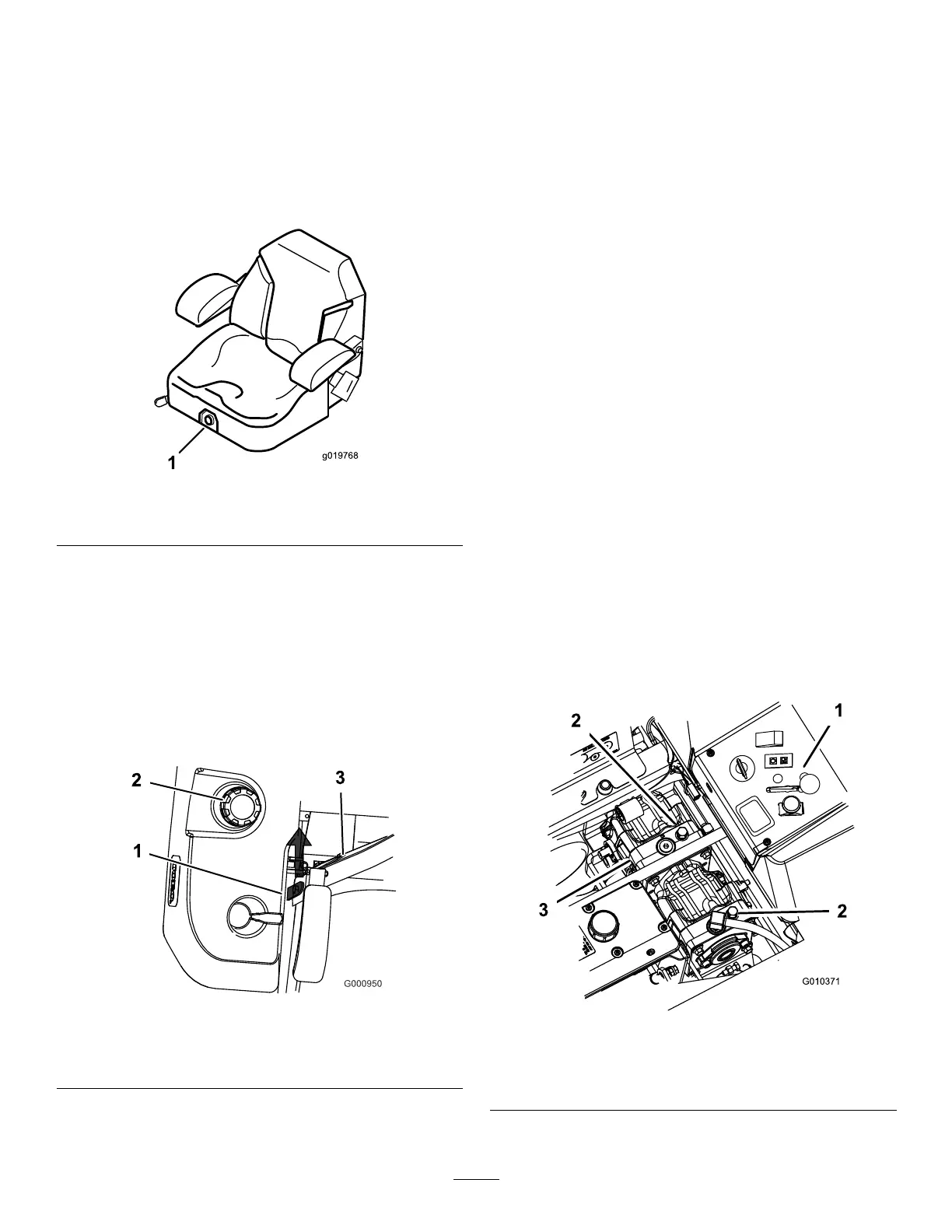

g019768
Figure22
1.Seatsuspensionknob
UnlatchingtheSeat
1.Movetheseattothemostrearwardposition.
Thispreventsinterferencewhentheseatis
raised.
2.Pushtheseatlatchrearwardtounlatchtheseat.
3.Raisetheseatup.Thisallowsaccesstothe
machineundertheseat(Figure23).
g000950
Figure23
1.Seatlatch3.Seat
2.Fuelcap
PushingtheMachineby
Hand
Important:Alwayspushthemachinebyhand.
Nevertowthemachinebecausehydraulicdamage
mayoccur.
PushingtheMachine
1.Disengagethepowertakeoff(PTO)andturn
theignitionkeytooff.Movetheleversto
NEUTRAL-LOCKposition,applytheparkingbrake,
andremovethekey.
2.Rotatethebypassvalvescounterclockwise1
turn.Thisallowshydraulicuidtobypassthe
pumpenablingthewheelstoturn(Figure24).
Important:Donotrotatethebypassvalves
morethan1turn.Thispreventsvalvesfrom
comingoutofthebodyandcausinguidto
runout.
3.Disengageparkingbrakebeforepushingthe
machine.
ChangingtoMachineOperation
Rotatethebypassvalvesclockwise1turntooperate
themachine(Figure24).
Note:Donotovertightentheby-passvalves.
Themachinewillnotdriveunlessbypassvalvesare
turnedin.
g010371
Figure24
1.Sideconsolecontrols
3.Hydraulicpumps
2.Bypassvalve
