Toro 74656 - Premaintenance Procedures; Raising the Seat; Releasing the Mower-Deck Curtain; Lubrication

Premaintenance
Procedures
RaisingtheSeat
Makesurethatthemotion-controlleversarelockedinthe
parkposition,andlifttheseatforward.
Thefollowingcomponentscanbeaccessedbyraisingtheseat:
•Serialplate
•Servicedecal
•Seat-adjustmentbolts
•Fuellter
•Batteryandbatterycables
ReleasingtheMower-Deck
Curtain
Loosenthe2bottomboltsofthecurtaintogainaccesstothe
topofthemowerdeck(Figure34).

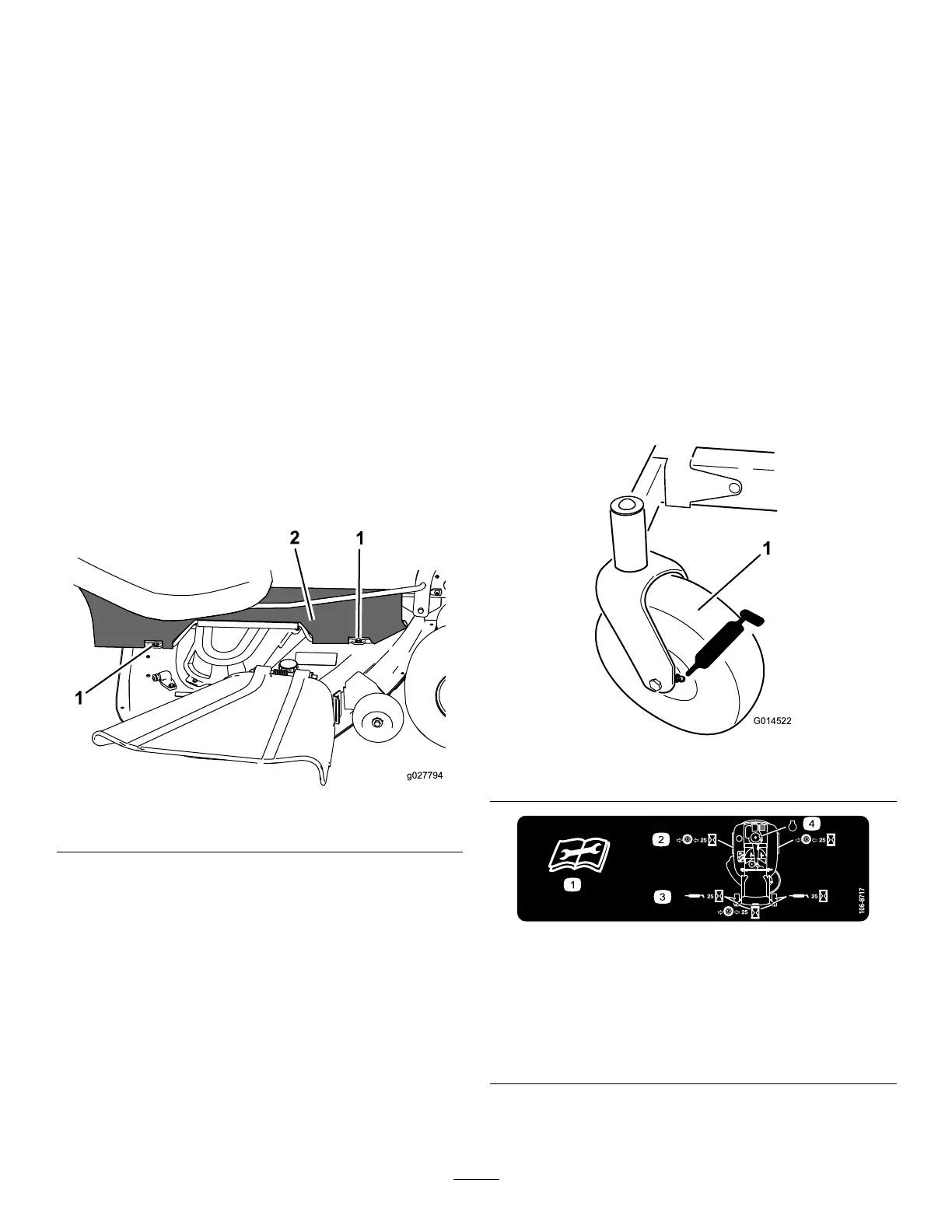

Figure34
1.Bottombolt
2.Curtain
Note:Alwaystightentheboltstoconnectthecurtainafter
maintenance.
Lubrication
GreasingtheBearings
ServiceInterval:Every25hours—Greaseallthelubrication
points.
GreaseType:No.2generalpurpose,lithium-basedgrease
1.Parkthemachineonalevelsurface,anddisengagethe
blade-controlswitch.
2.Movethemotion-controlleversoutwardtothepark
position,stoptheengine,removethekey,andwaitfor
allmovingpartstostopbeforeleavingtheoperating
position.
3.Cleanthegreasettings(Figure35andFigure36)with
arag.
Note:Makesuretoscrapeanypaintoffthefrontof
thetting(s).
1
G014522
Figure35
1.Frontcastertire
Figure36
Locatedontheseat-panunderside
1.Readtheinstructions
beforeservicingor
performingmaintenance
3.Greaseevery25operating
hours
2.Checkthetirepressure
every25operatinghours
4.Engine
4.Connectagreaseguntoeachtting(Figure35and
Figure36).
33
