Toro 74656 - Removing the Mower; Installing the Mower

10.Whenthefront-to-rearbladeslopeiscorrectcheckthe
side-to-sidelevelofthemoweragain,refertoLeveling
fromSidetoSide(page45).
RemovingtheMower
1.Parkthemachineonalevelsurfaceanddisengagethe
blade-controlswitch.
2.Movethemotion-controlleversoutwardtothepark
position,stoptheengine,removethekey,andwaitfor
allmovingpartstostopbeforeleavingtheoperating
position.
3.Lowertheheight-of-cutlevertothelowestposition.
4.Loosenthebottomtwoboltsholdingthemower-deck
curtaintothemowerdeck.RefertoReleasingthe
Mower-DeckCurtain(page33).
5.Removethehairpin-cotterpinfromthefrontsupport
rod,andremovetherodfromthedeckbracket(Figure
66).
G014635
1
2
3

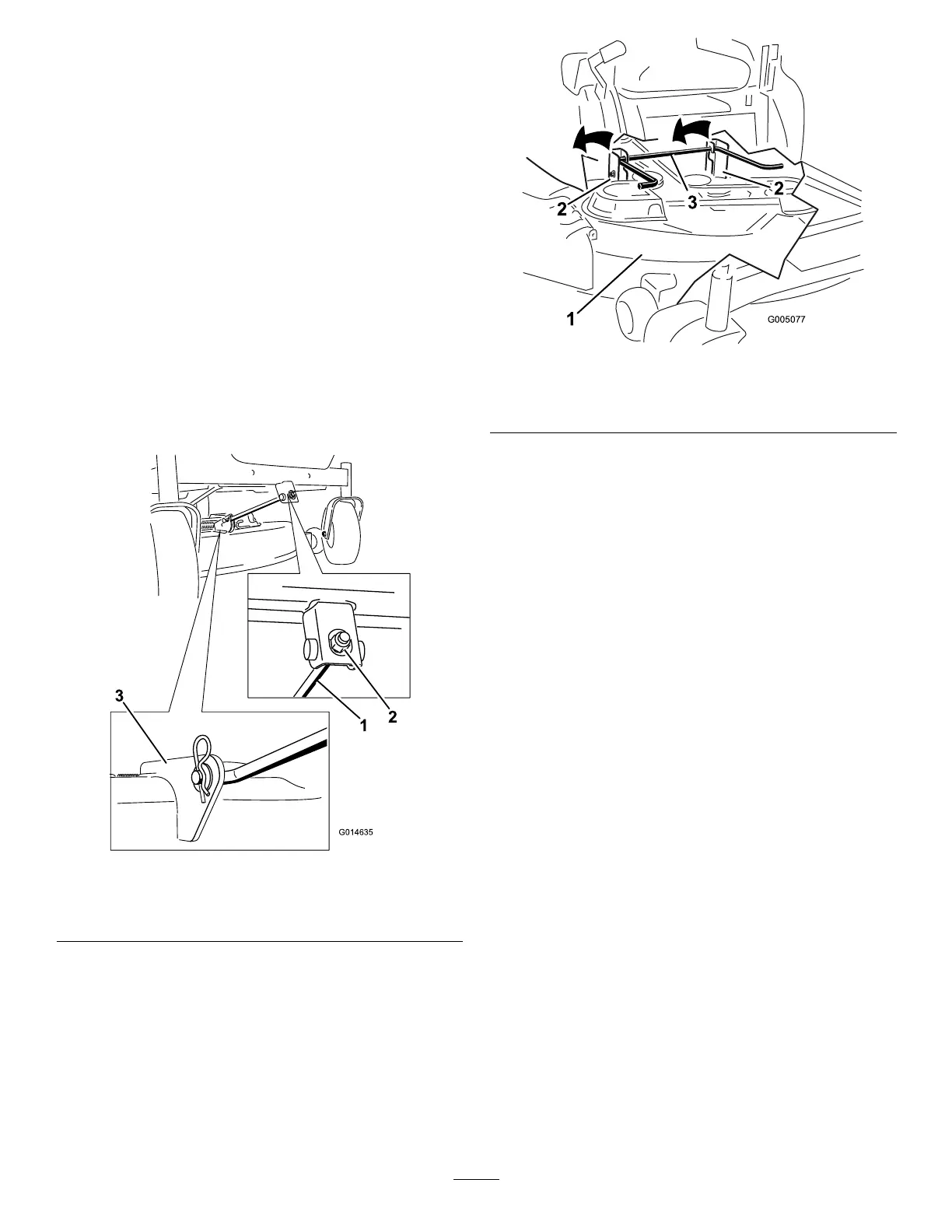

Figure66
1.Frontsupportrod3.Deckbracket
2.Lockingnut
6.Carefullylowerthefrontofthemowerdecktothe
ground.
7.Liftthemowerdeckandhangerbracketsclearof
therearliftrodandlowerthemowercarefullytothe
ground(Figure67).
2
2
3
G005077
1
2
2
3
Figure67
1.Mowerdeck
3.Rearliftrod
2.Hangerbracket
8.Slidethemowerdeckrearwardtoremovethemower
beltfromtheenginepulley.
9.Slidethemowerdeckoutfromunderneaththe
machine.
Note:Retainallpartsforfutureinstallation.
InstallingtheMower
1.Parkthemachineonalevelsurfaceanddisengagethe
blade-controlswitch.
2.Movethemotion-controlleversoutwardtothepark
position,stoptheengine,removethekey,andwaitfor
allmovingpartstostopbeforeleavingtheoperating
position.
3.Slidethemowerunderthemachine.
4.Lowertheheight-of-cutlevertothelowestposition.
5.Lifttherearofthemowerdeckandguidethehanger
bracketsovertherearliftrod(Figure67).
6.Attachthefrontsupportrodtothemowerdeckwith
theclevispinandhairpin-cotterpin(Figure66).
7.Installthemowerbeltontotheenginepulley;referto
ReplacingtheMowerBelt(page49).
8.Tightenthebottomtwoboltsholdingthemower-deck
curtaintothemowerdeck.RefertoReleasingthe
Mower-DeckCurtain(page33).
