Loading the Machine
Use extreme caution when loading or unloading machines
onto a trailer or a truck. Use a full-width ramp that is wider
than the machine for this procedure. Back the machine up the

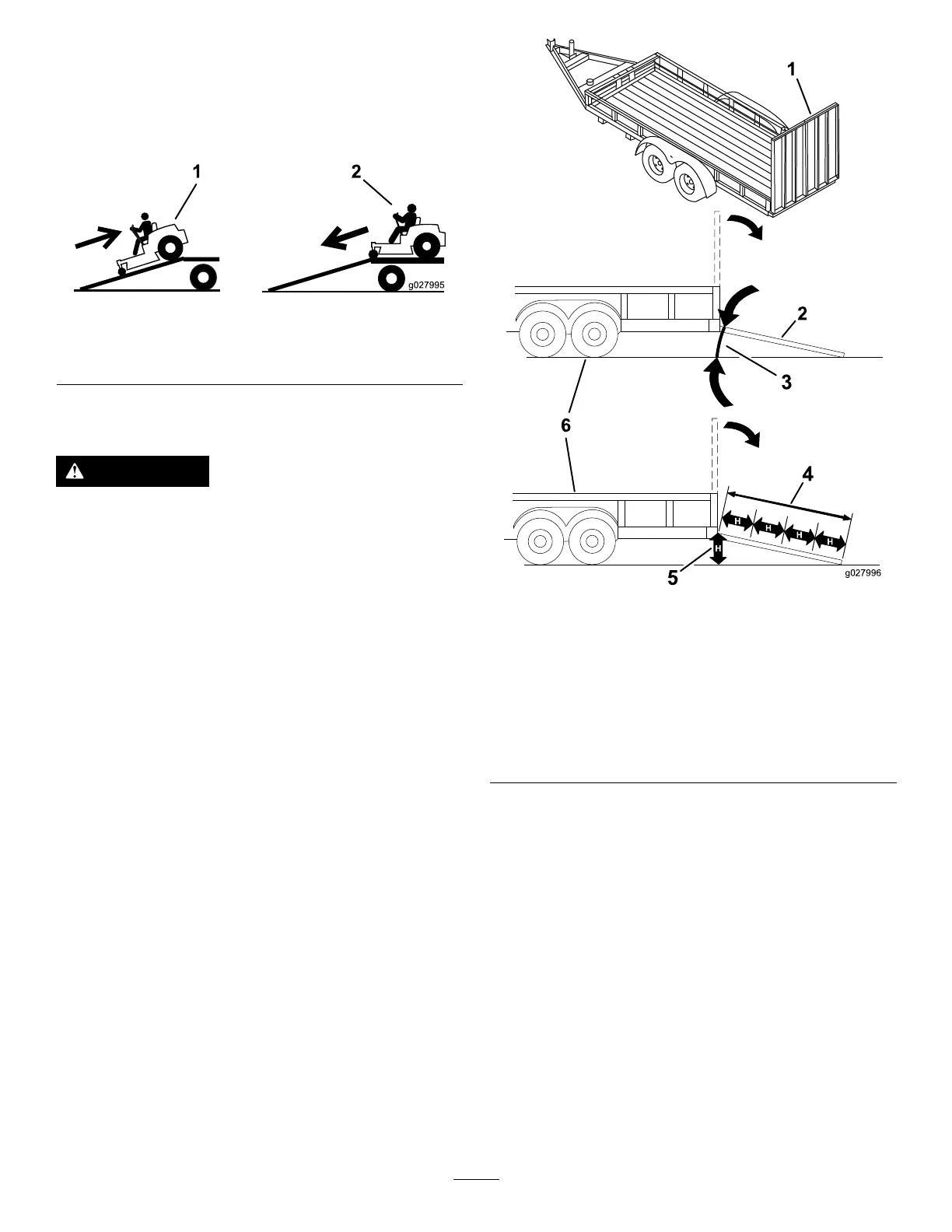

ramp and drive it forward down the ramp (Figure 29).
g027995
Figure 29
1. Back the machine up the
ramp.
2. Drive the machine forward
down the ramp.
Important: Do not use narrow individual ramps for
each side of the machine.
WARNING
Loading a machine onto a trailer or truck increases
the possibility of tip-over and could cause serious
injury or death (Figure 30).
• Use extreme caution when operating a machine
on a ramp.
• Use only a full-width ramp; do not use individual
ramps for each side of the machine.
• Do not exceed a 15-degree angle between the
ramp and the ground or between the ramp and
the trailer or truck.
• Ensure that the length of ramp is at least 4 times
as long as the height of the trailer or truck bed
to the ground. This ensures that the ramp angle
does not exceed 15 degrees on at ground.
• Back the machine up the ramp and drive it
forward down the ramp.
• Avoid sudden acceleration or deceleration while
driving the machine on a ramp as this could
cause a loss of control or a tip-over situation.
g027996
Figure 30
1. Full-width ramp in stowed
position
4. Ramp is at least 4 times
as long as the height of
the trailer or truck bed to
the ground
2. Side view of full-width
ramp in loading position
5. H=height of the trailer or
truck bed to the ground
3. Not greater than
15 degrees
6. Trailer
26
