Product Overview
g028166
9
2
1
5 3
4
7
2
10
8
6
11
12
g028166

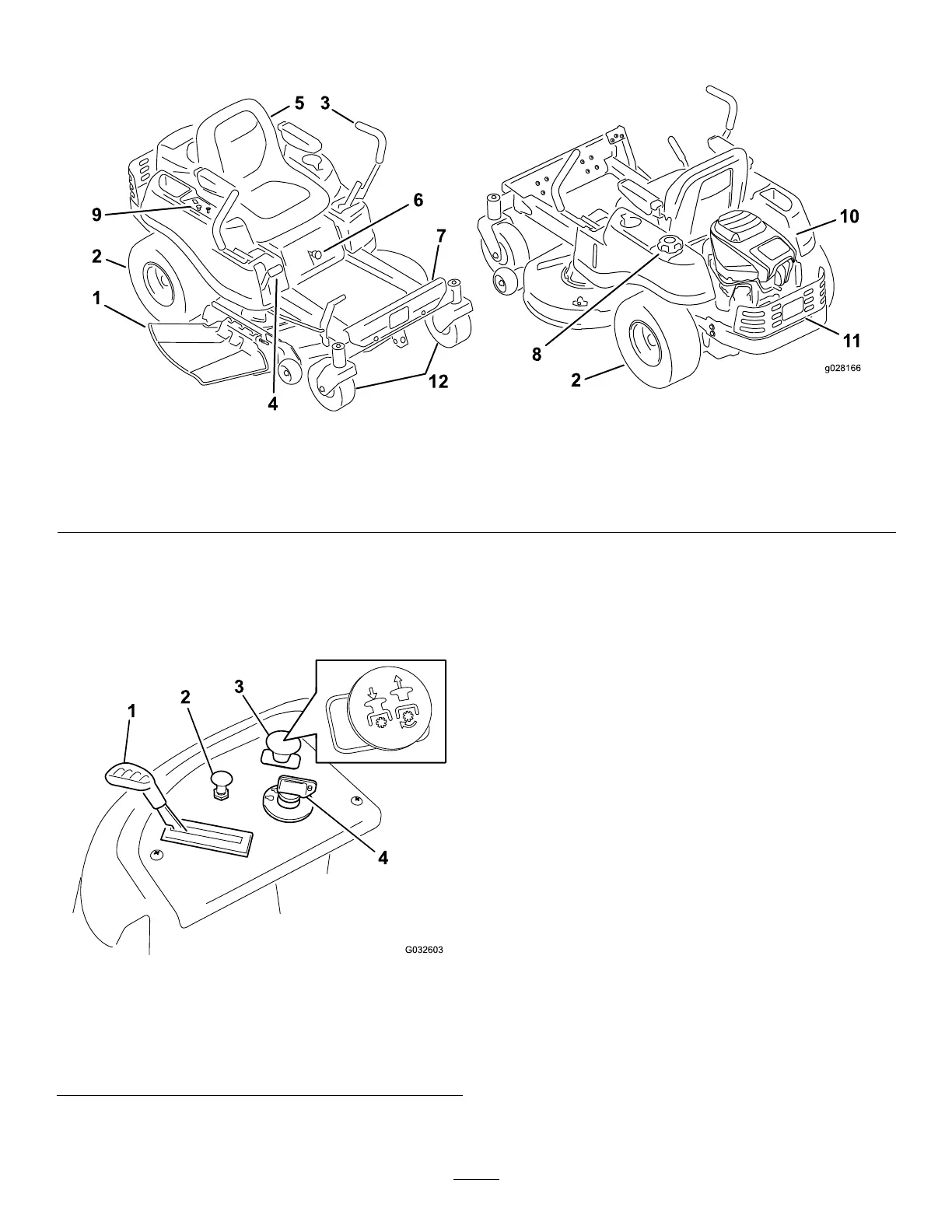

Figure 5
1. Deector 4. Height-of-cut lever
7. Footrest 10. Engine
2. Rear drive wheel
5. Operator seat
8. Fuel-tank cap 11. Engine guard
3. Motion-control levers
6. Smart Speed™ lever 9. Control panel
12. Front caster wheel
Controls
Become familiar with all the controls in Figure 5 and Figure 6
before you start the engine and operate the machine.
g032603
Figure 6
Control panel
1. Throttle 3. Blade-control switch
(power takeoff)
2. Choke
4. Ignition switch
Ignition Switch
Use this switch to start the mower engine. It has 3 positions:
START, RUN, and OFF.
Choke Control
Use the choke to start a cold engine. Pull the choke knob
up to engage it. Push the choke knob down to disengage
it (Figure 6).
Throttle Control
The throttle controls the engine speed, and it has a
continuous-variable setting from the SLOW to FAST position
(Figure 6).
Blade-Control Switch (Power
Takeoff)
The blade-control switch, represented by a power-takeoff
(PTO) symbol, engages and disengages power to the mower
blades (Figure 6).
