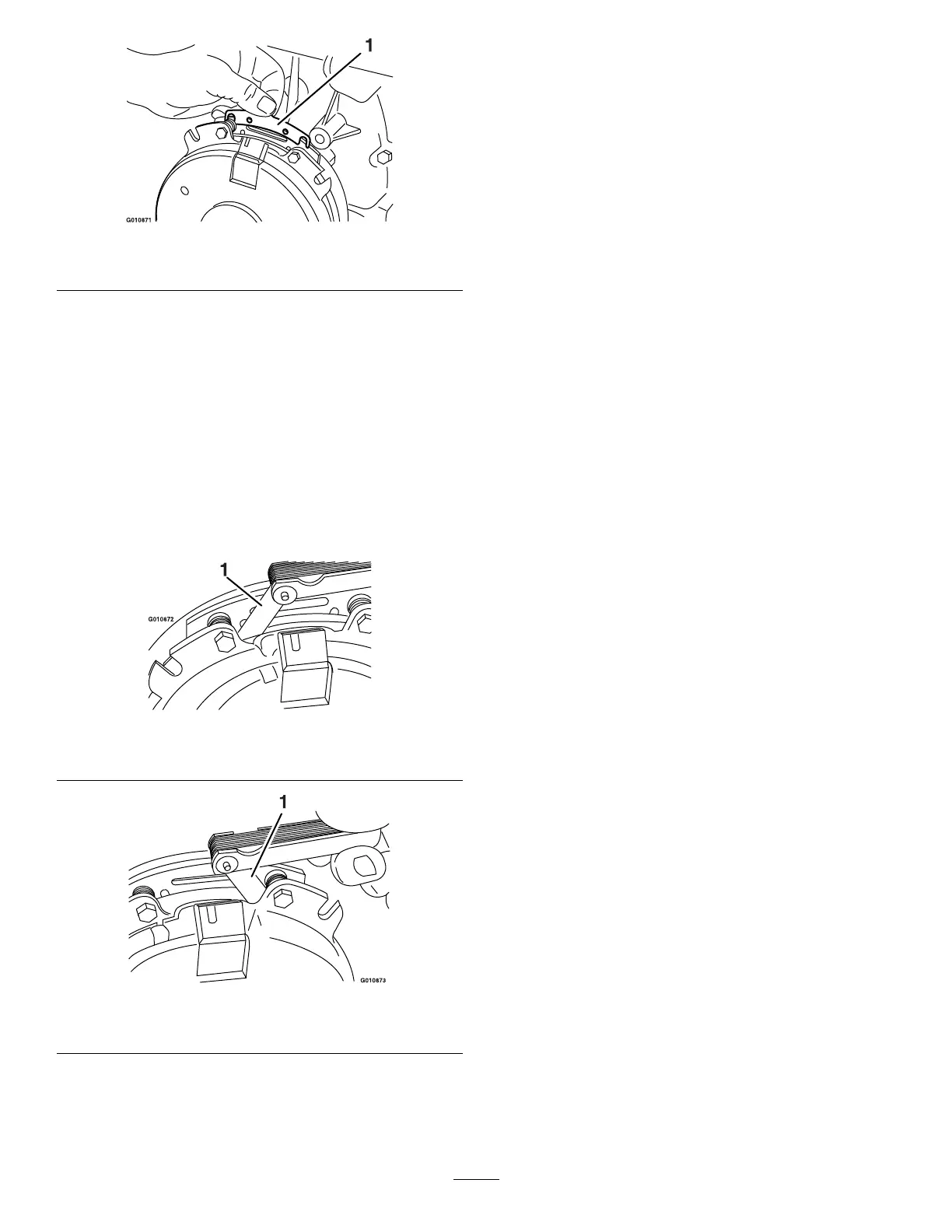

Figure68
1.Shim
C.Usingapneumaticline,blowoutanydebris
fromunderthebrakepoleandaroundthebrake
spacers.
D.Re-torqueeachbolt(M6x1)to10ft-lb(13N-m)
+/-0.5ft-lb(0.7N-m).
E.Usinga0.010inchthickfeelergauge,verifythat
agapispresentbetweentherotorandarmature
faceonbothsidesofthebrakepoleasshown.
(Duetothewaytherotorandarmaturefaces
wear(peaksandvalleys)itissometimesdifcult
tomeasurethetruegap.)
Figure69
1.Feelergauge
Figure70
1.Feelergauge
•Ifthegapislessthan0.010inch,thenreinstall
theshimandreferencetheTroubleshooting
section.
•Ifthegapissufcient,proceedtothesafety
checkinstep
F.
F.Performthefollowingsafetycheck:
a.Sitontheseatandstarttheengine.
b.MakesurethebladesDoNotengagewiththe
PTOswitch“off”andtheclutchdisengaged.
Iftheclutchdoesnotdisengage,reinstallthe
shimandreferencetheTroubleshooting
section.
c.EngageanddisengagethePTOswitch
tenconsecutivetimestoensuretheclutch
isfunctioningproperly.Iftheclutch
doesnotengageproperly,referencethe
Troubleshootingsection.
