Installation
8
Transport
Height Adjustment
Transport height should be properly adjusted after
Tractor Preparation, page 6; however if the rear
brackets contact the footrest or up–stop contacts the
top of mower in the raised position, adjustment is
required.
1. Adjust by turning transport height nut, (Fig. 10)
on lift mechanism, clockwise to raise or
counterclockwise to lower mower.
2. Adjust nut until there is 1/4” (6 mm) clearance
between rear brackets and footrest and up–stop
and mower.
1223
1

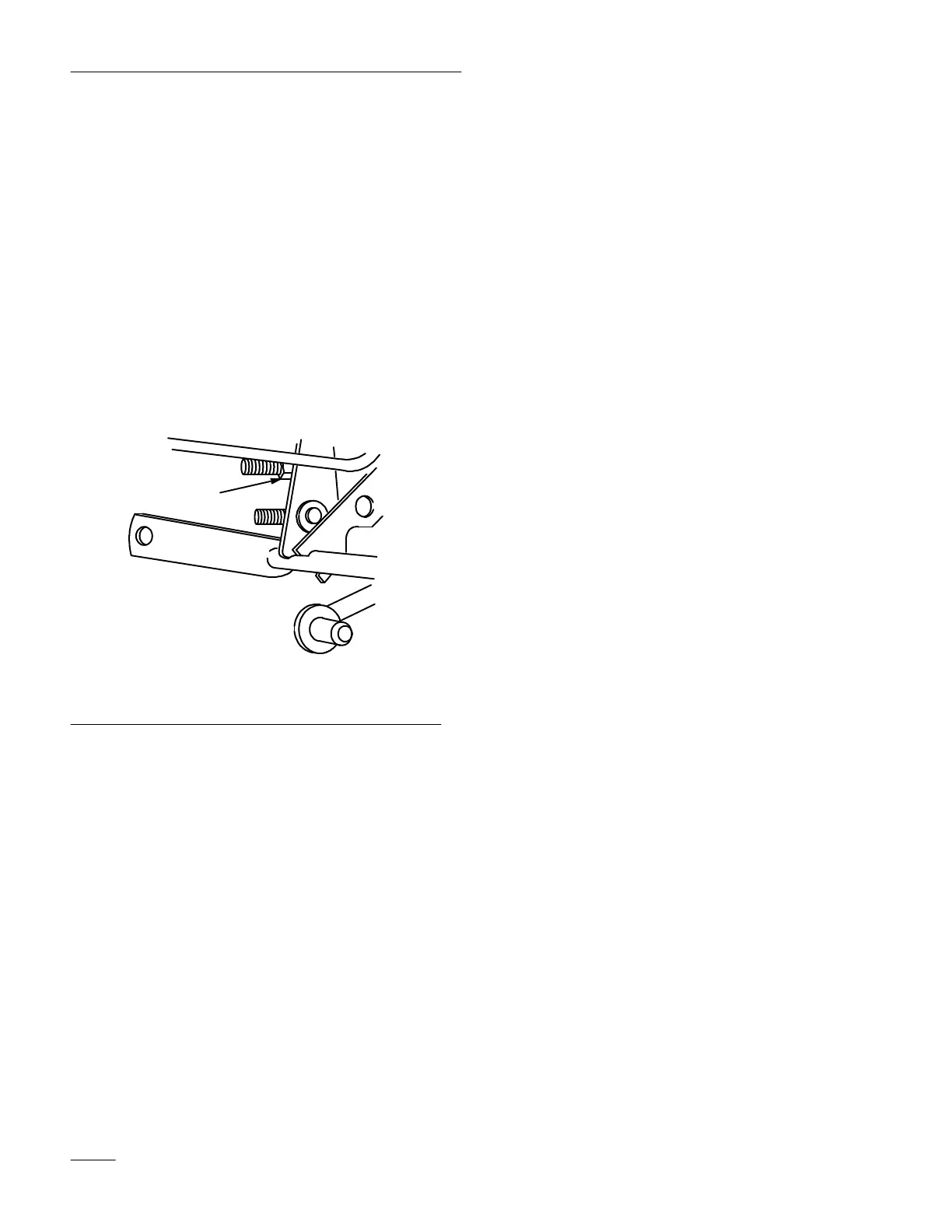

Figure 10
1. Nut
