Mower Preparation

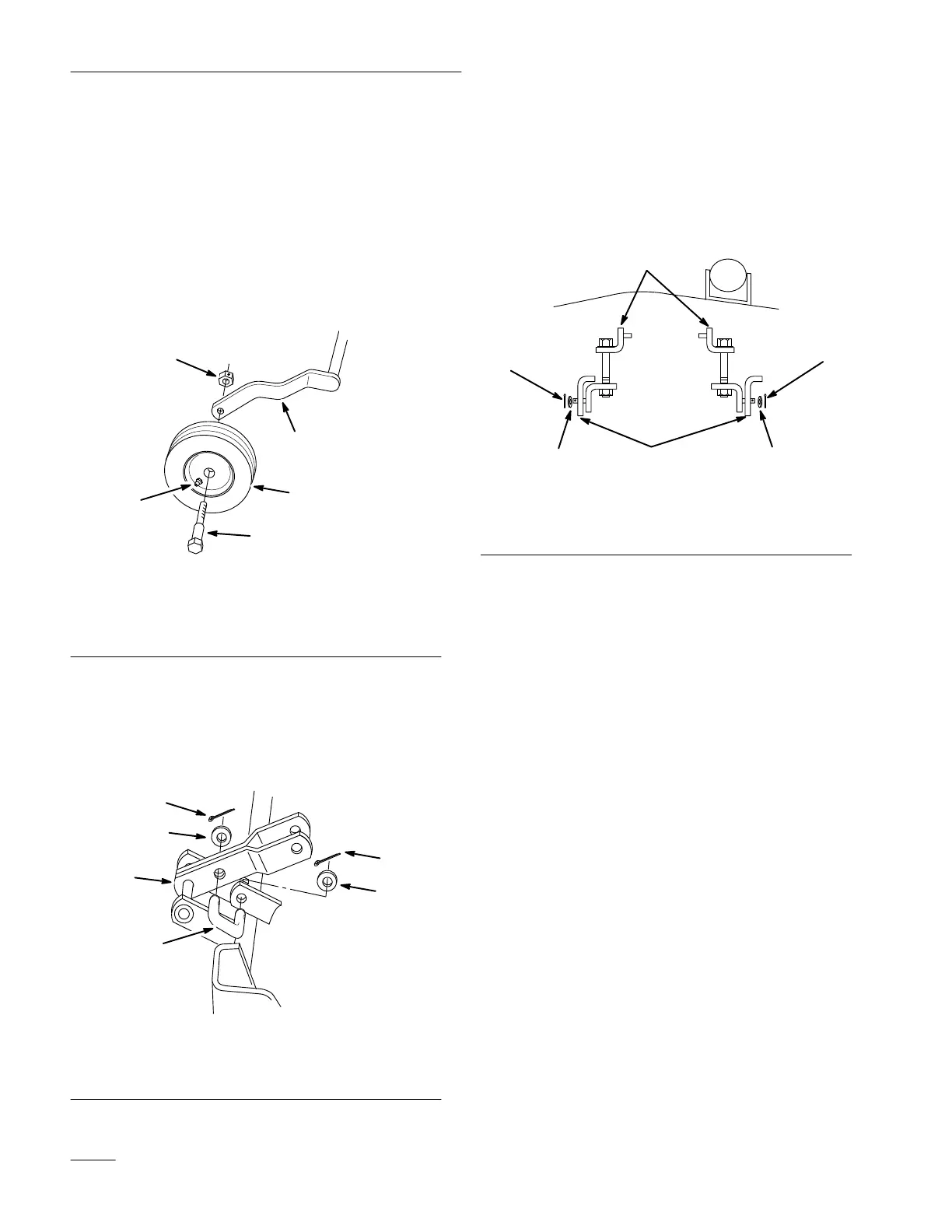

1. Attach gage wheels to the outside of arms on
rear carrier assembly. Grease fitting on wheel
must face out (Fig. 1).
2. Secure with shoulder bolt and 3/8” lock nut,
with internal locking patch on threads (Fig. 1).
Note:
Grease wheels.
4
1
m–2389
5
3
2
Figure 1
1. Carrier arm
2. Wheel
3.
Grease fitting out
4. Shoulder bolt
5. Lock nut 3/8” (with patch)
3. Install rear link between mower bracket and
carrier lift arm (Fig. 2).
4. Secure with 1/2” washers and 1” (26 mm) cotter
pins (Fig. 2).
2
m–3388
4
1
3
3
4
Figure 2
1. Rear link
2. Carrier lift arm
3. W asher 1/2”
4. Cotter pin 1” (26 mm)
5. Rotate adjustable links so bolt heads are up and
place between brackets, as shown, on front of the
mower (Fig. 3).
6. Secure to brackets with 1/2” washers and 1”
(26 mm) cotter pins (Fig. 3).
m–3285
2
4
3
1
4
3
Figure 3
1. Adjustable link
2. Bracket
3. W
asher 1/2”
4. Cotter pin 1” (26 mm)
