Removing
Recycling
Baffle
Model 78285 only.
1. Remove lock nuts from top, discharge side and
center flange of right side baffle (Fig. 16). Lower
baffle and slide out discharge opening to remove.
Note: Only the right side baffle need be
removed for side discharge mowing.
2. Install previously removed 5/16–5/8” (16 mm)
bolts and 5/16” lock nuts in open holes of
mower for safety (Fig. 16).
m-2414
1
2
2
3
2
3

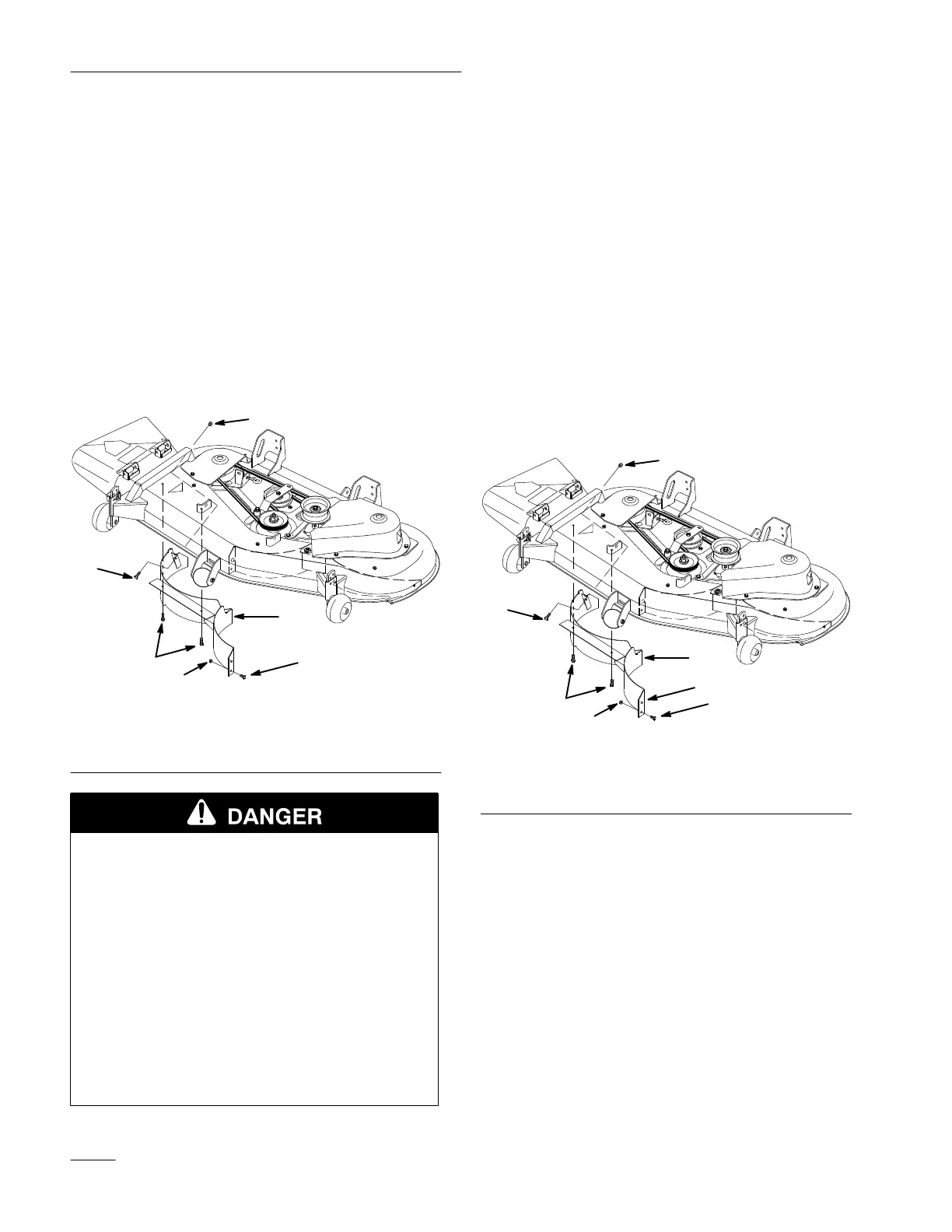

Figure 16
1. Baffle
left side
2.
Bolt 5/16 x 5/8” (16 mm)
3.
Lock nut 5/16”
POTENTIAL
HAZARD
• Open holes in the mower expose you and
others to thrown debris.
WHAT CAN HAPPEN
• Debris thrown out of holes in the mower
can cause injury.
HOW TO AV
OID THE HAZARD
• Never operate mower without hardware
mounted in all holes in mower.
• Install hardware in mounting holes when
recycle baffle is removed.
Installing
Recycling
Baffle
Model 78285 only.
1. Thoroughly clean the mower.
2. Remove lock nuts from top and dischar
ge side
and center flange of mower (Fig. 17). Slide
baffle into discharge opening and raise into
mower so pin on center flange engages left
baffle.
3. Secure with previously removed 5/16–5/8”
(16 mm) bolts and 5/16” lock nuts in top,
discharge side and center flange holes of baffle
(Fig. 17).
m-2414
1
3
3
4
3
4
2
Figure 17
1. Baffle
left side
2.
Flange pin
3.
Bolt 5/16 x 5/8” (16 mm)
4.
Lock nut 5/16”
