Removing the Mower
1. Park the machine on a level surface, disengage
the power take off (PTO), set the parking brake,
and turn the ignition key to “OFF” to stop the
engine. Remove the key.
2. Raise attachment lift, turn Dial-a-Height knob
counterclockwise, all the way, and lower the
attachment lift lever to the mounting position;
refer to tractor Operator’
s Manual.
3. Remove mower drive belt from engine pulley.
4. Remove hairpin cotter, washer and link pin from
rear link and remove from attachment lift
(Fig. 15).
5. Remove hairpin cotter and washer from front
adjustable link(s) and remove from front lift arm
(Fig. 15).
6. Remove hairpin cotters and washers from rear
lift arms (Fig. 15).
7. Slide deck right, off rear lift arms (Fig. 15).
1
1
6
7
4
m–2373
2
3
3
2

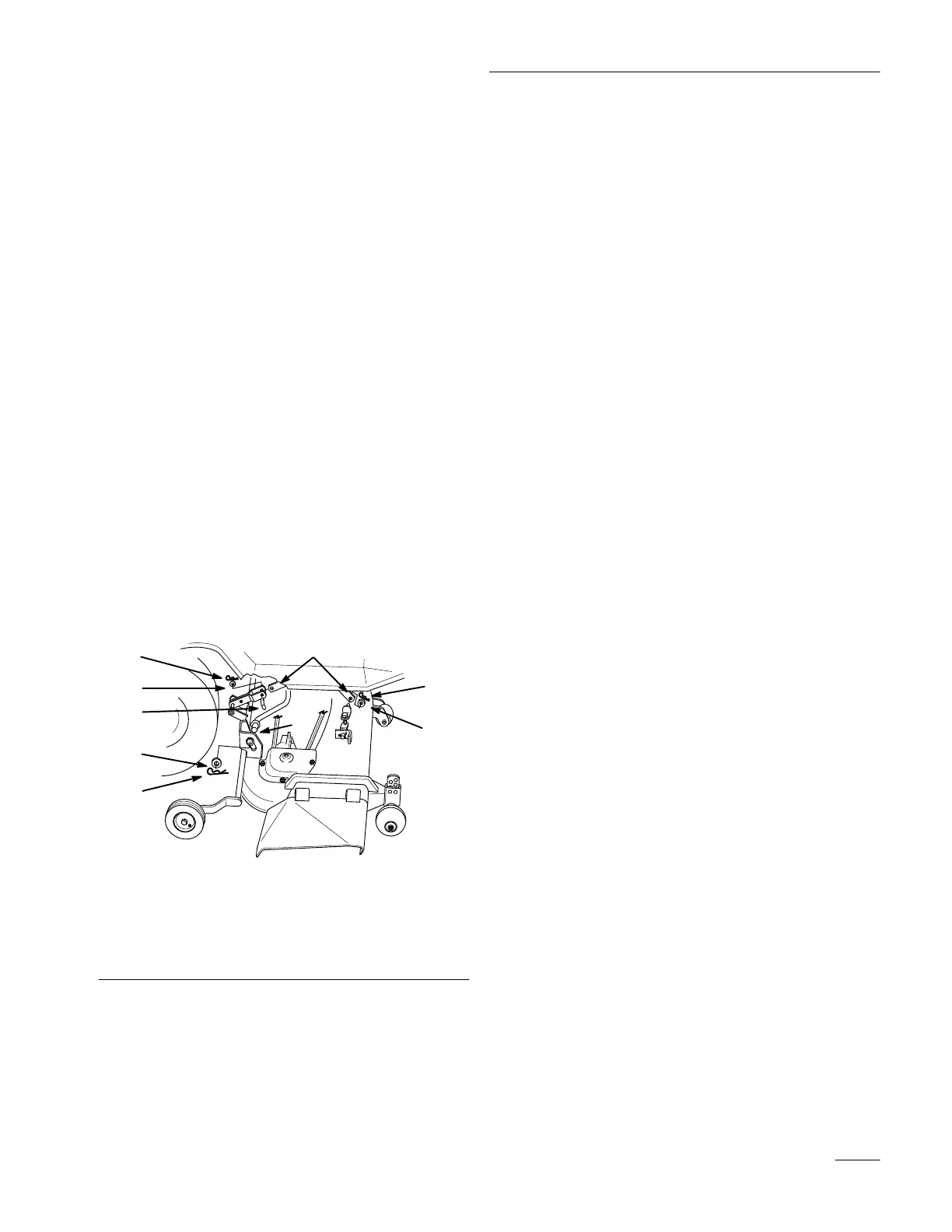

Figure 15
1. Link pin
2. W asher 1/2”
3. Hair pin cotter–small
4. Attachment lift
5. Lift arm
6. W asher 3/4”
7. Hair pin cotter–large
8. Raise attachment lift all the way to the latched
position. Turn the front wheels, as necessary, and
slide mower out to the the right side.
Note: Save all hardware, washers and hairpin
cotters for use when installing deck.
