Toro EVOLUTION Series Manual

3
1. Rain Sensor Test Pin
Pressing the test pin simulates operation of the Rain Sensor
by transmitting a signal to the Smart Connect.
2. Rain Sensor Adjustment Cap
e Rain Sensor sensitivity is adjustable to suspend
watering after 1/8”, 1/4”, 1/2” or 3/4” (3 mm, 6 mm, 12
mm and 19 mm) of accumulated rainfall.
3. Solar Collector
Solar radiation and temperature are used by the Weather
Sensor to calculate and adjust watering to suit current
weather conditions.
4. Battery Compartment
e Weather Sensor is powered by one (1) 9V Alkaline
battery (installed).
See battery service information on page 12 for additional
information.
5. QuickClip™ Mounting Bracket
e QuickClip bracket design enables the Weather Sensor
to be easily installed and aligned.
6. Antenna
1
2
3
4
5
6

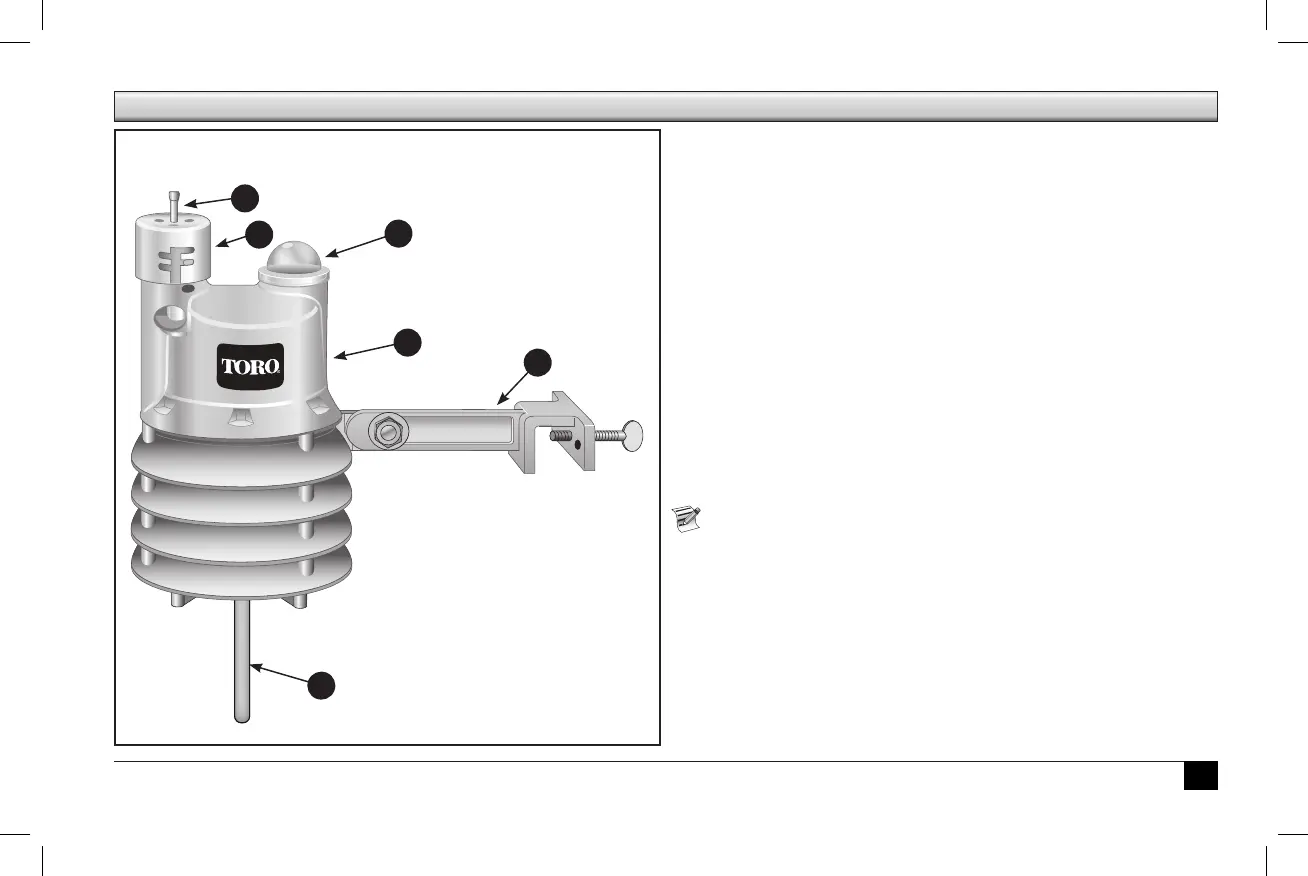

Weather Sensor Overview

Toro EVOLUTION Series Specifications

General

Weather Sensor Compatibility	Yes
Output Voltage	24 VAC
Display	LCD
Wi-Fi Connectivity	Yes (with optional Wi-Fi module)
Mounting	Indoor/Outdoor
Maximum Load Current	0.5 amps per station
Operating Temperature	-40°C to 60°C
Enclosure Rating	NEMA 3R
Weight	Varies by model
Zones	4 to 16 (in modules of 4)
