Toro Greenmaster Flex 1820 - Throttle Control

ThrottleControl
Thethrottlecontrol(Figure15andFigure16)is
locatedontheright,rearsideofthecontrolpanel.
Rotatethethrottletoregulatetheenginespeed.

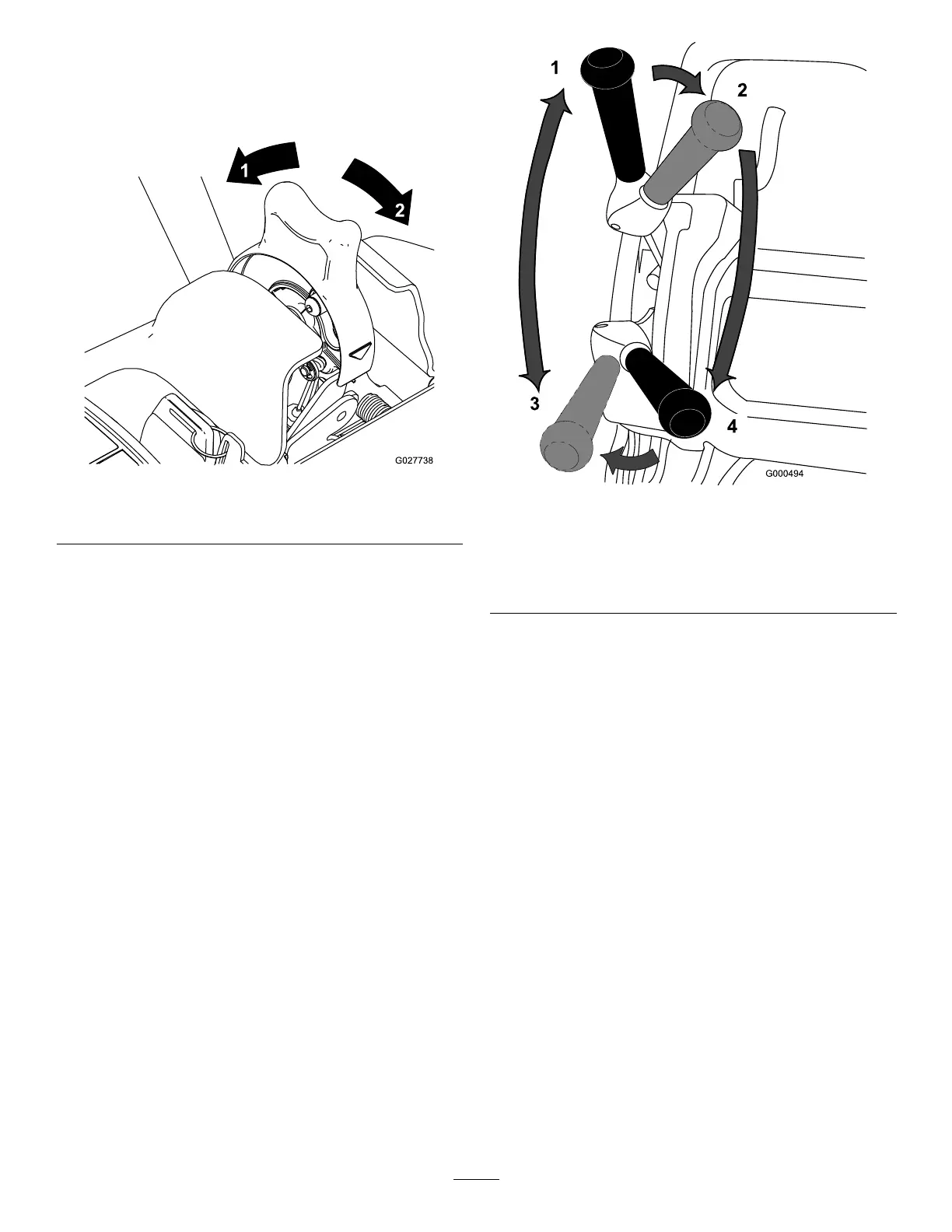

g027738
Figure16
1.Fullspeed
2.Slowspeed
TractionandReel-Drive
EngagementLever
Thetractionandreel-driveengagementlever(Figure
17)islocatedonthefrontrightsideofthecontrol
panel.
Totransportthemachine,theleverhas2positions:
NEUTRALandFORWARD.Pushingthelevertothe
traction—FORWARD(transport)positionorthe
traction—FORWARDandreeldrive—ENGAGEposition
engagesthetractiondrive(Figure17).
Note:T omovethelever,youmustrstengagethe
operator-presencecontrol.
g000494
Figure17
1.NEUTRAL3.Traction—FORWARD
(transport)
2.Traction—NEUTRALand
reeldrive—DISENGAGE
4.Traction—FORWARDand
reeldrive—ENGAGE
Tooperatethereel,theleverhas2positions:ENGAGE
andDISENGAGE.Movethetopofthelevertothe
left,thenforwardtothetraction—FORWARDand
reeldrive—ENGAGEpositiontoengagethereeland
beginmowing.Pushthelevertotherighttothe
traction—FORWARD(transport)positiontodisengage
thereelandcontinueforwardmotionorpullbackonit
tothetraction—NEUTRALandreeldrive—DISENGAGE
positiontodisengageboththereelandthetraction
drive(Figure17).
Note:Ifyoureleasetheoperator-presencecontrol,
theleverreturnstoneutralandthemachinestops.
13
