Toro Greenmaster Flex 1820 - Adjusting the Handle Height; Adjusting the Handle Angle; Adjusting the Throttle Control

AdjustingtheHandle
Height
Note:Themachineisshippedwiththehandle
adjustedtothelowestposition.Themachineis
normallyoperatedwiththehandletelescopedoutto
itsmaximumheight.
1.Loosenthe3carriageboltsandnutssecuring
eachsideofthehandleinthehandleclamps
(Figure26).

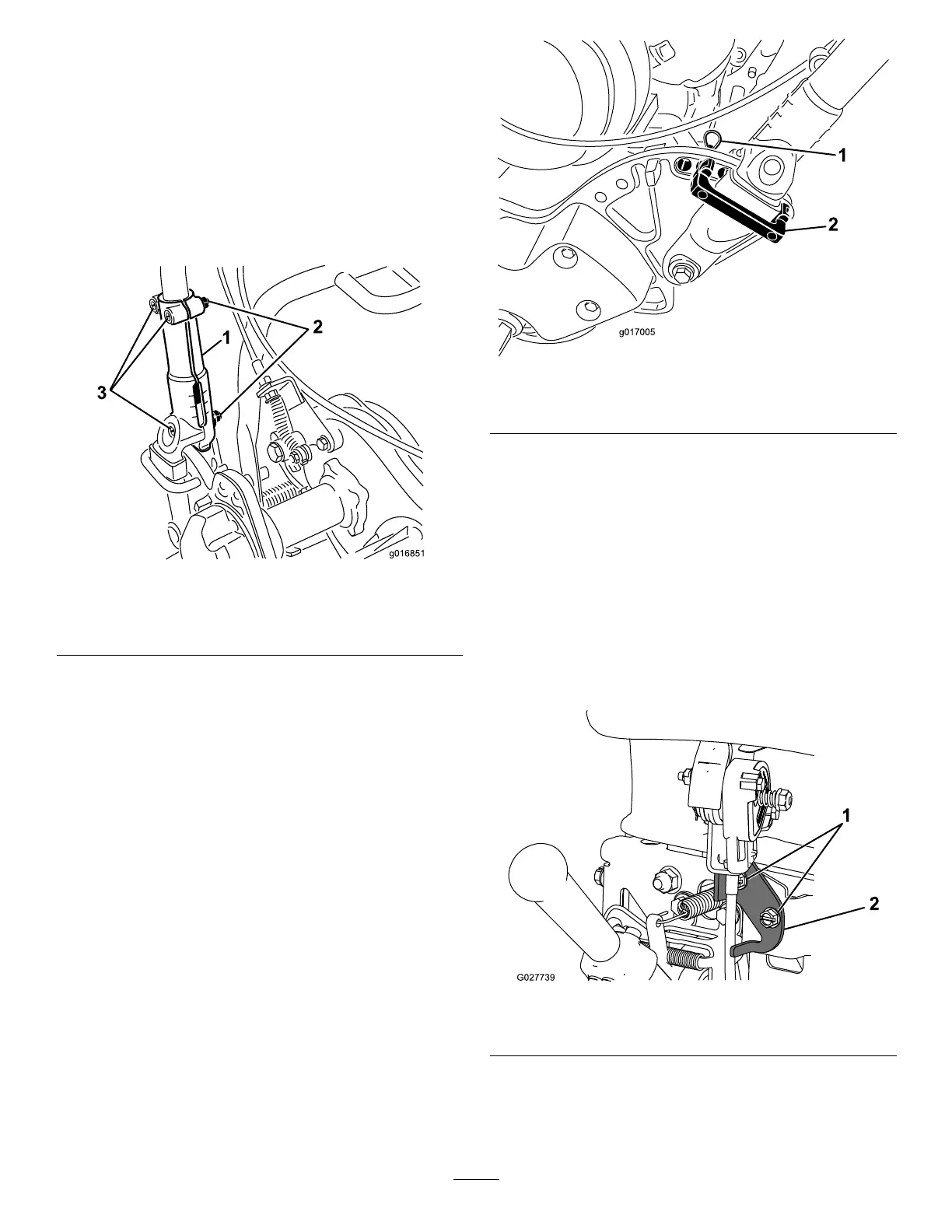

g016851
Figure26
1.Handleclamp
3.Carriagebolts
2.Nut
2.Pulluponthehandleslowlyandevenlyoneach
sideuntilitisinthedesiredoperatingposition.
3.Tightenthecarriageboltsandnutstolockthe
adjustment.
AdjustingtheHandleAngle
1.Removethehairpincottersfromthehandle
retainersoneachsideofthemachine(Figure
27).
g017005
Figure27
1.Hairpincotter2.Handleretainer
2.Whilesupportingthehandle,removethehairpin
cottersfromeachsideandpivotthehandleto
thedesiredoperatingposition(Figure27).
3.Installthehandleretainersandhairpincotters.
AdjustingtheThrottle
Control
1.Removetheconsolecover.
2.Loosenthe2fastenerssecuringthethrottle
control(Figure28).
g027739
Figure28
1.Fasteners2.Throttlecontrol
3.Adjustthethrottlecontroltothedesiredposition.
4.Tightenthethrottle-controlfasteners.
5.Installthepreviouslyremovedconsolecover.
21
