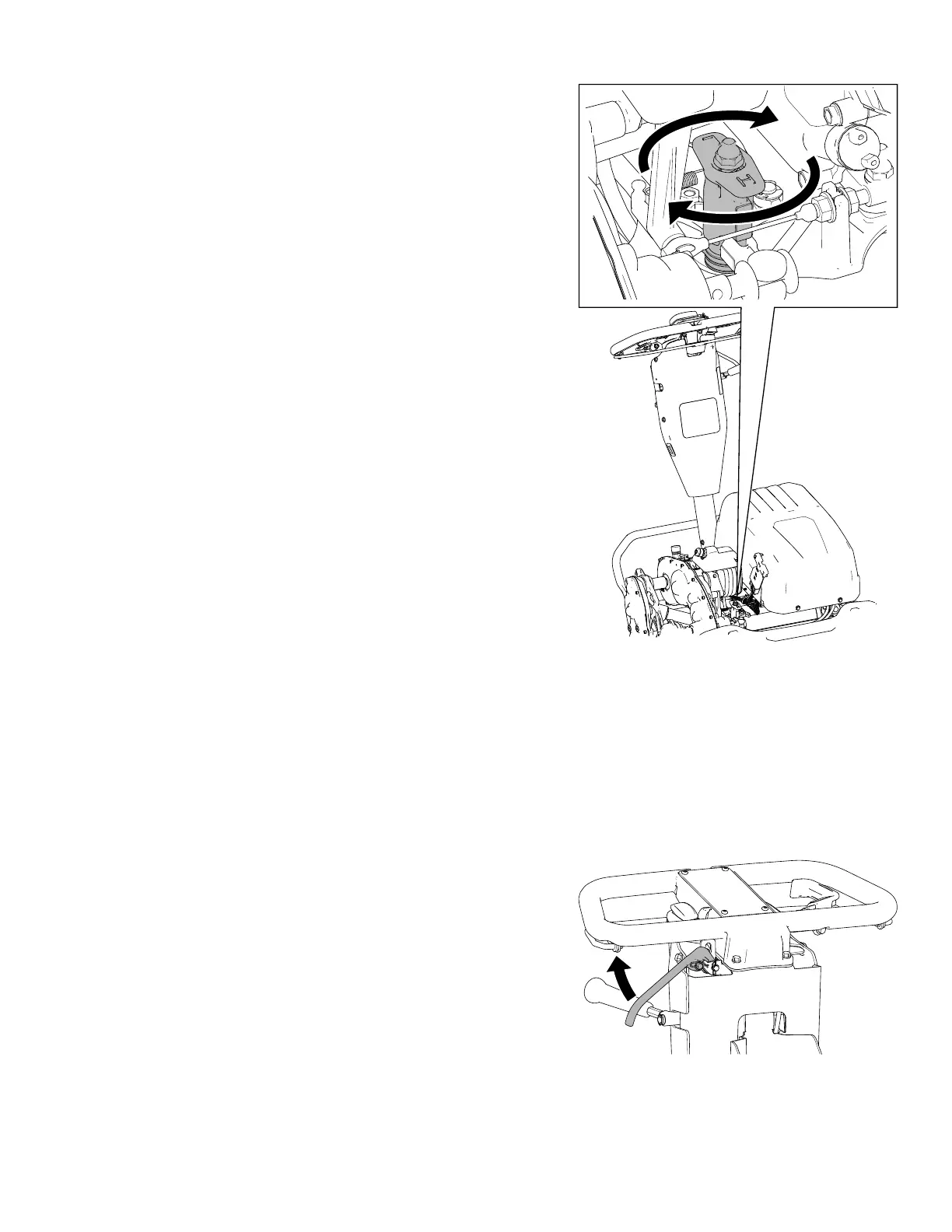

Reel Speed Control
G426885
Use the reel-speed-control knob to engage adjust
the reel speed.
• High reel speed: Rotate the knob so that the
“H” on the knob is directed toward the front of
the machine.
• Low reel speed: Rotate the knob so that the
“L” on the knob is directed toward the front of
the machine.
Key Switch
• Start the machine: Move the key to the ON position.
• Shut off the machine: Move the key to the O
FF position.
Service-Brake Lever
G404699
Pull the service-brake lever toward the handle to
slow or stop the machine.
3460-892A Page 4–4 Product Overview: Controls
