Parking-Brake Latch
G404700

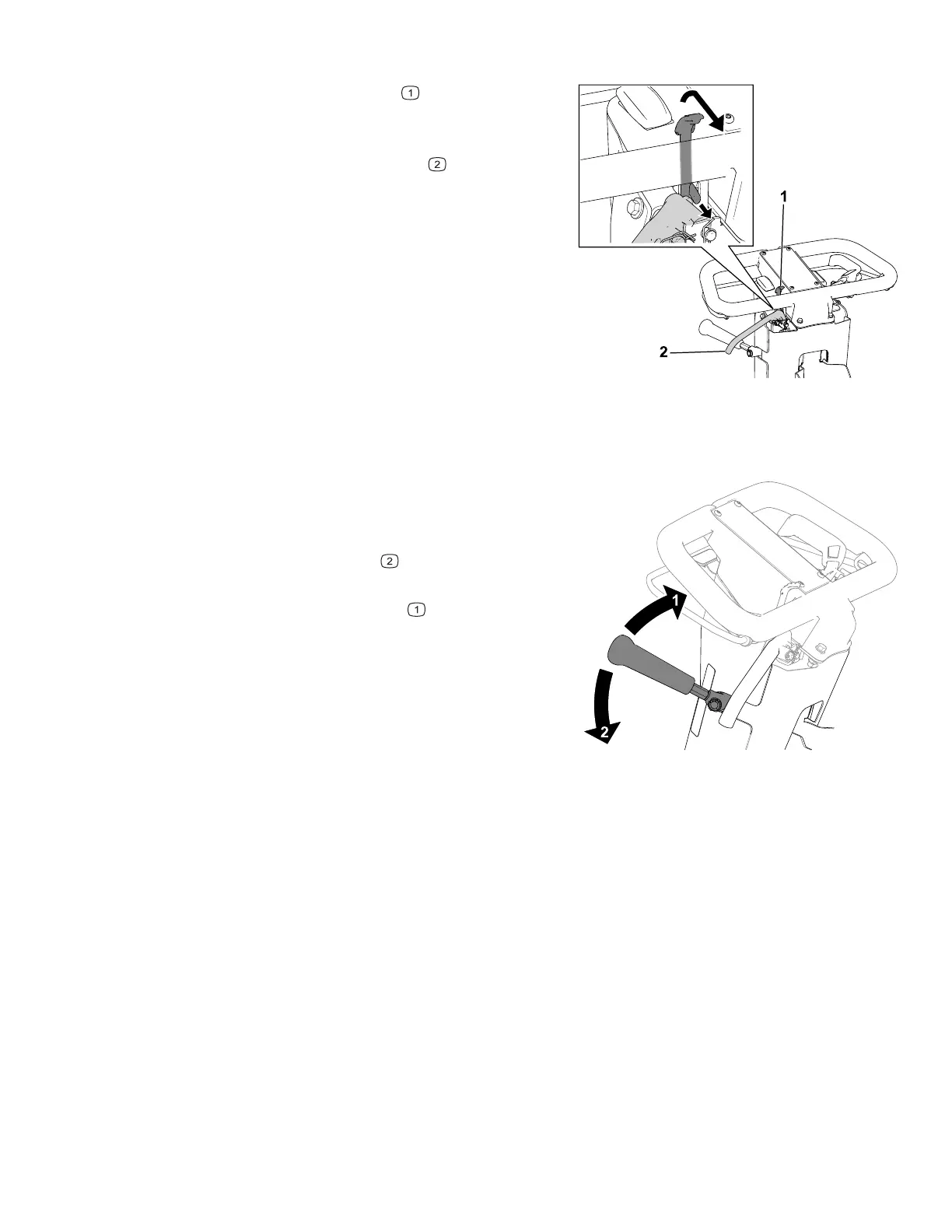

• Engage the parking brake : Rotate the
parking-brake latch toward you while the
service-brake lever is engaged.
• Disengage the parking brake
: Pull the
service-brake lever toward the handle.
Cutting-Unit-Drive Lever
G404701
Use the cutting-unit-drive lever to engage or
disengage the cutting unit while the clutch bail is
engaged.
• Engage the cutting unit
: Move the lever
down.
• Disengage the cutting unit
: Move the lever
up.
Hour Meter
The hour meter records the total running time of the engine to assist in scheduling regular
maintenance.
InfoCenter LCD Display
The InfoCenter LCD display shows information about your machine such as the current
battery charge, the speed, various diagnostics, and other information about the machine
and the battery. The following figure illustrates the InfoCenter and the main information
screen.
