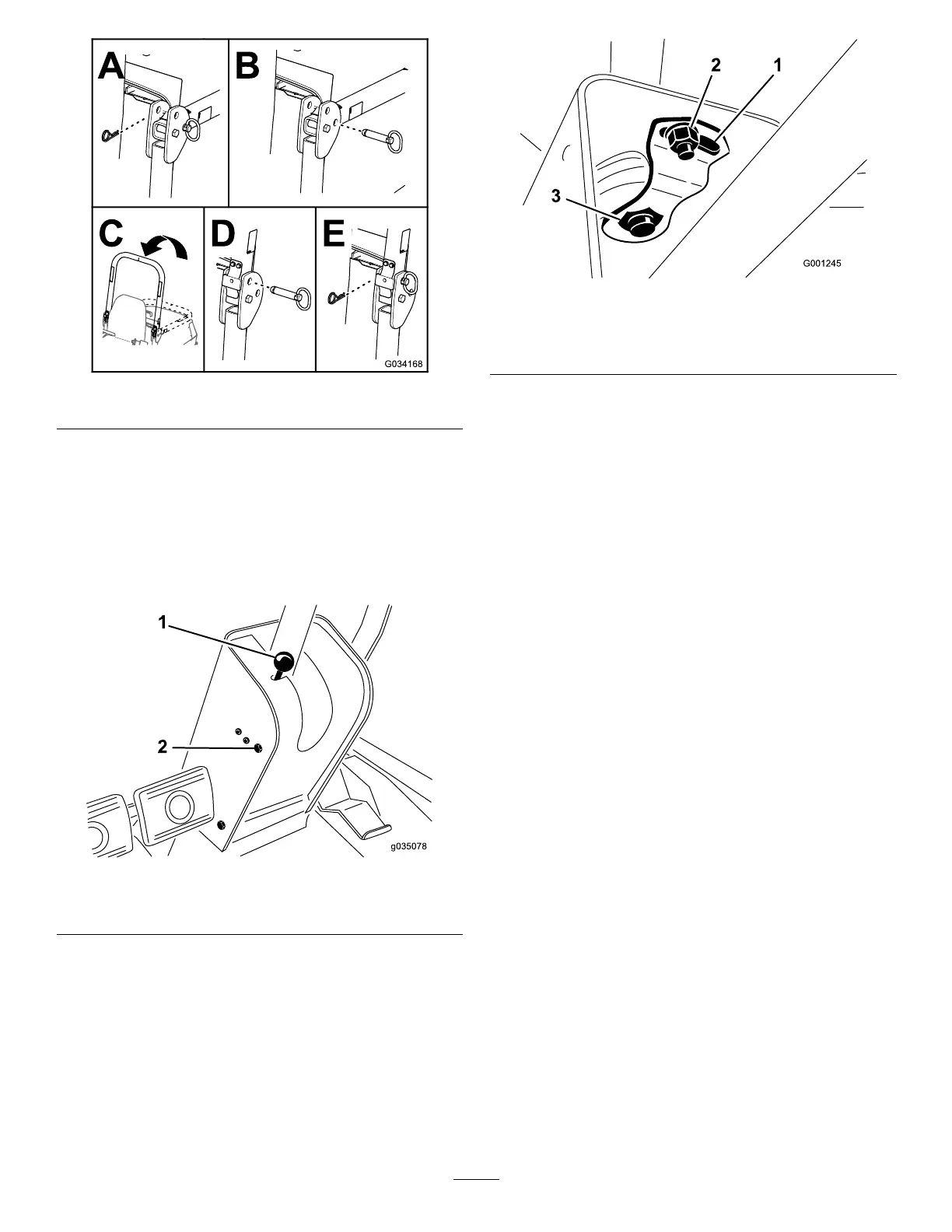

Toro Groundsmaster 30345 - Adjusting the Tilt-Steering Control

g034168
Figure25
AdjustingtheTilt-Steering
Control
1.Removetheknobfromtheparkingbrakeand
thescrewsfromthesteering-columncover
(Figure26).
g035078
Figure26
1.Parking-brakeknob
2.Mountingscrew(4)
2.Slidethecoverupthesteeringshafttoexpose
thepivotbracket(Figure27).
g001245
Figure27
1.Pivotplate3.Largenut
2.Smallnut
3.Loosenthesmallnutandrotatethepivotbracket
untilittightensthelargenutbelowit(Figure27).
4.Tightenthesmallnut.
5.Installthesteering-columncoverandthe
parking-brakeknob.
