Note:Toreducetheamountofdustdislodged,
avoidknockingthelteragainsttheair-lter
housing.
5.Inspecttheair-lterelement.
•Iftheair-lterelementisclean,installthe
lterelement,refertoInstallingtheAirFilter
(page22).
•Iftheair-lterelementisdamaged,replace
thelterelement;refertoReplacingtheAir
Filter(page22).
ReplacingtheAirFilter
1.Removetheair-lterelement;refertoServicing
theAirCleaner(page21).
2.Inspectthenewlterforshippingdamage.
Note:Checkthesealingendofthelter.
Important:Donotinstalladamagedlter.
3.Installthenewairlter;refertoInstallingtheAir
Filter(page22).
InstallingtheAirFilter
Important:Topreventenginedamage,always
operatetheenginewiththecompleteair-cleaner
assemblyinstalled.
Important:Donotuseadamagedelement.
Note:Cleaningoftheusedair-lterelementisnot
recommendedduetothepossibilityofdamagetothe
ltermedia.
1.Cleanthedirtejectionportlocatedonthe
air-ltercover.
2.Removetherubberoutletvalvefromthecover,
cleanthecavity,andreplacetheoutletvalve.
3.Inserttheair-lterelementintoair-lterhousing
(Figure16).
Note:Ensurethatthelterissealedproperly
byapplyingpressuretotheouterrimofthelter
wheninstallingit.Donotpressontheexible
centerofthelter.
4.Aligntheair-cleanercoverwiththeair-cleaner
housing(Figure16).
5.Securethecovertothehousingwiththelatches
(Figure16).
ServicingtheCarbon
Canister
ReplacingtheCarbonCanisterAir
Filter
ServiceInterval:Every200hours
1.Shutofftheengine,removethekey,andwait
forallmovingpartstostopbeforeleavingthe
operatingposition.
2.Removeanddiscardthecarboncanisterair
lter(Figure17).

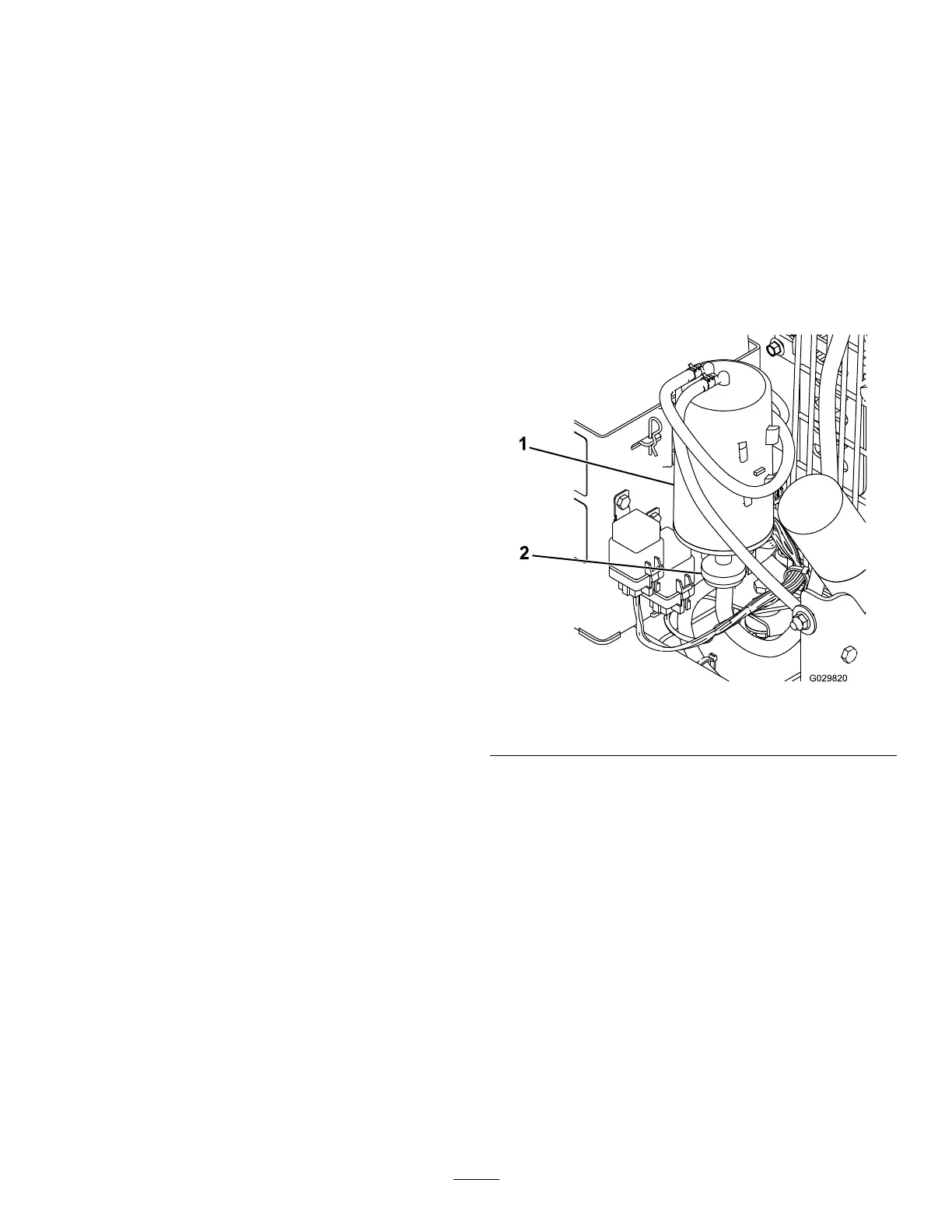

g029820
Figure17
1.Carboncanister2.Carboncanisterairlter
3.Installthenewairlter.
ReplacingtheCarbonCanister
Purge-lineFilter
ServiceInterval:Every200hours
Note:Checkthepurge-linelteroccasionallyfordirt.
Ifthelterappearstobedirty,replaceit.
1.Stoptheengine,removethekey,andwait
forallmovingpartstostopbeforeleavingthe
operatingposition.
2.Movethespring-typehoseclampsonbothsides
ofthecarboncanisterpurge-linelterawayfrom
thelter(Figure18).
