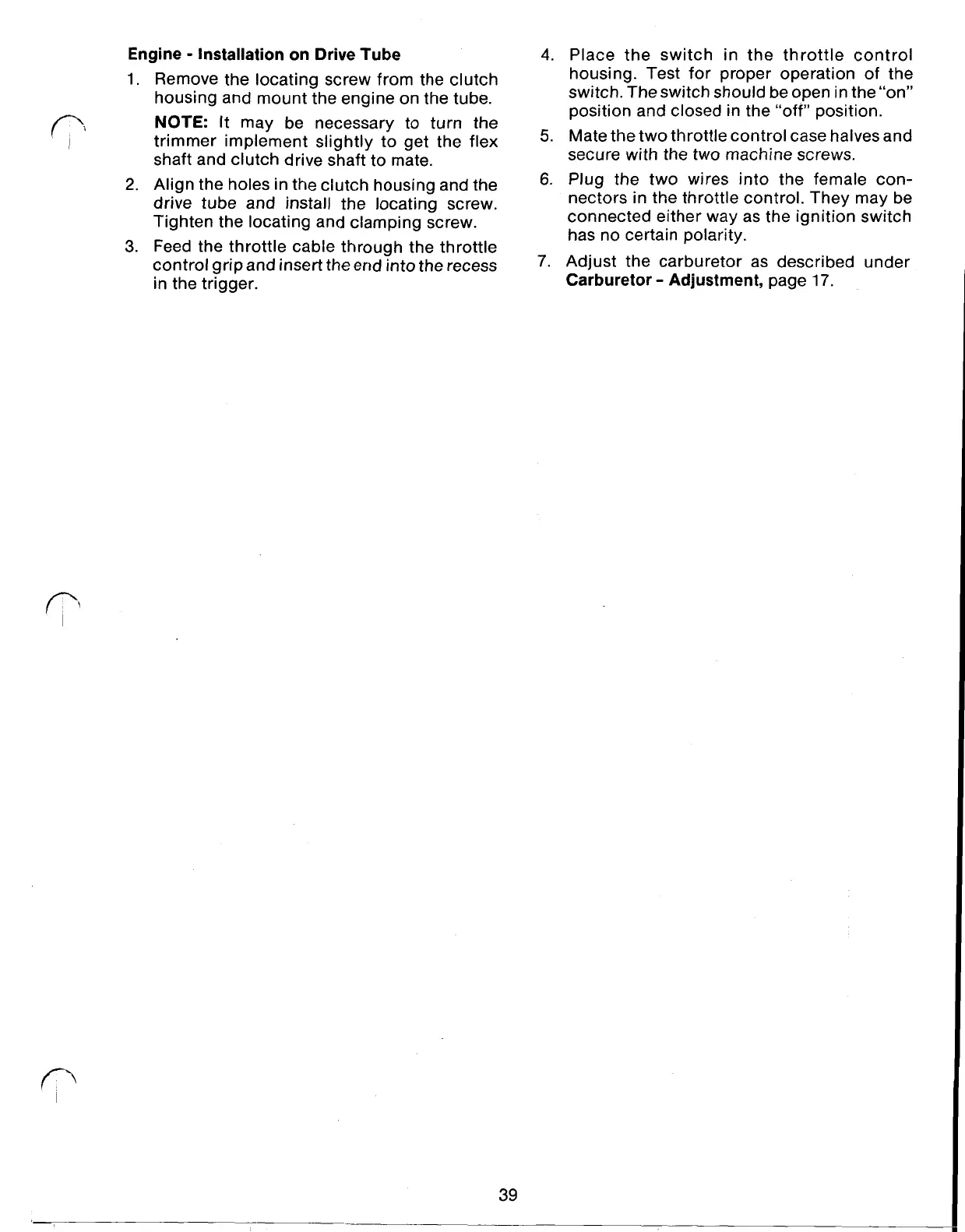

Engine Installation on Drive Tube
1.
Remove the locating screw from the clutch
housing and mount the engine on the tube.
NOTE:
It may be necessary to turn the
shaft and clutch drive shaft to mate.
2.
Align the holes in the clutch housing and the
drive tube and install the locating screw.
Tighten the locating and clamping screw.
3.
Feed the throttle cable through the throttle
control grip and insert the end into the recess
in the trigger.
trimmer implement slightly to get the flex
4.
Place the switch in the throttle control
housing. Test for proper operation
of
the
switch. The switch should be open in the “on”
position and closed in the “off” position.
5.
Mate the two throttle control case halves and
secure with the two machine screws.
6.
Plug the two wires into the female con-
nectors in the throttle control. They may be
connected either way as the ignition switch
has no certain polarity.
7.
Adjust the carburetor as described under
Carburetor Adjustment,
page
17.
