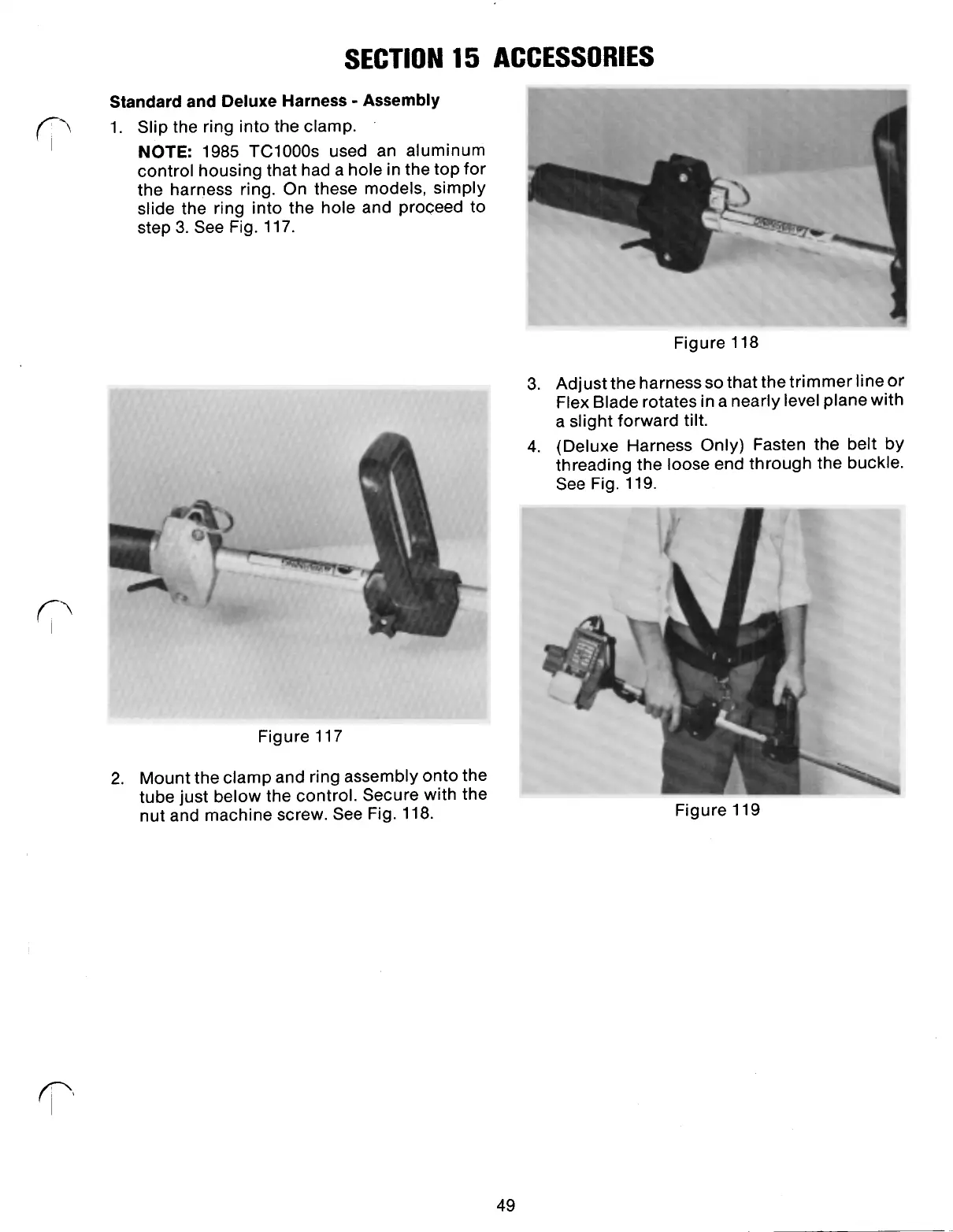

SECTION 15 ACCESSORIES
Standard and Deluxe Harness Assembly
1. Slip the ring into the clamp.
NOTE: 1985 TC1000s used an aluminum
control housing that had a hole in the top for
the harness ring. On these models, simply
slide the ring into the hole and proceed to
step
3. See Fig. 117.
Figure 117
2. Mount the clamp and ring assembly onto the
tube just below the control. Secure with the
nut and machine screw. See Fig. 118.
Figure 118
3. Adjust the harness so that the trimmer line or
Flex Blade rotates in a nearly level plane with
a slight forward tilt.
4. (Deluxe Harness Only) Fasten the belt by
threading the loose end through the buckle.
See Fig. 119.
Figure 119
