ProductOverview
G005179
1
2
3
4
6
5
7
8
9
10

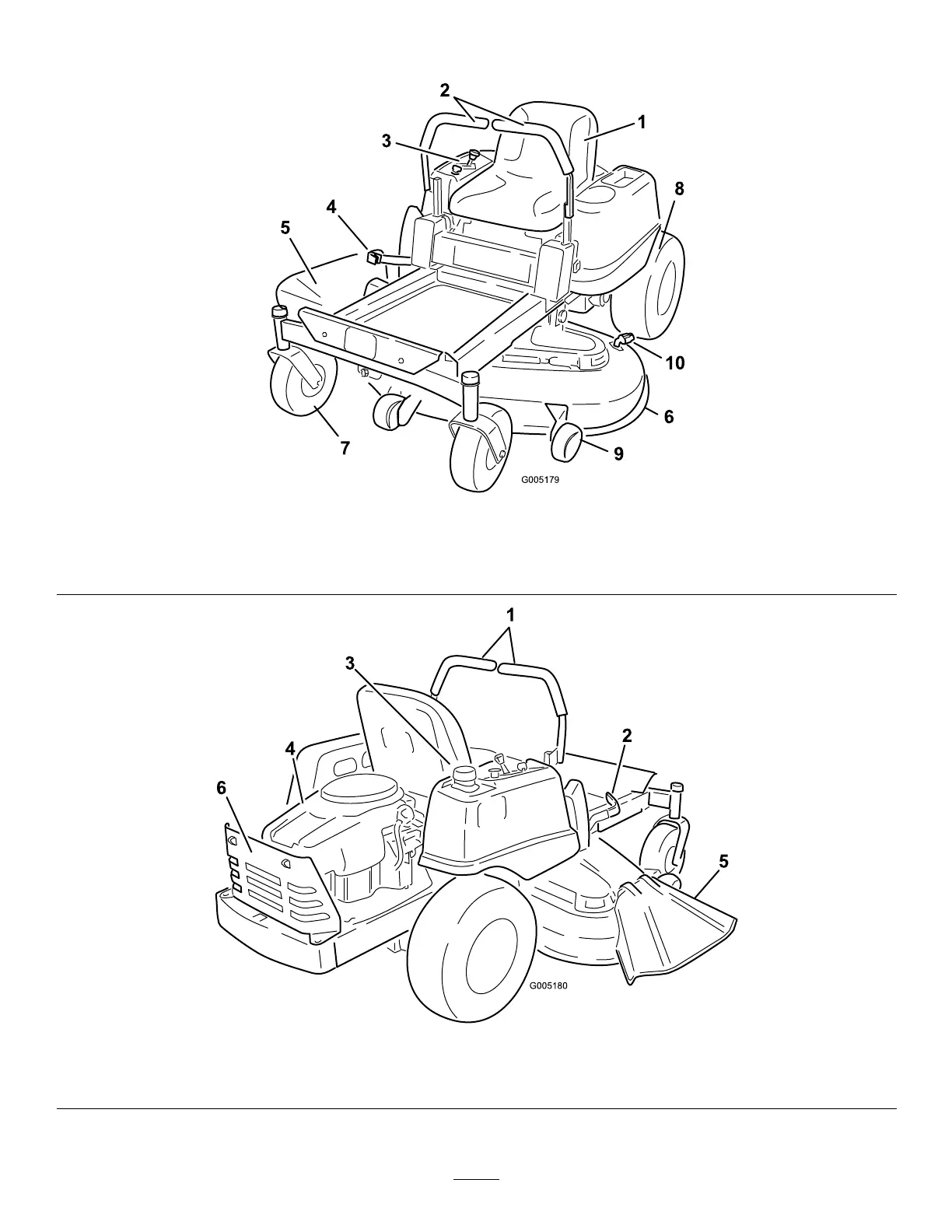

Figure3
1.Operatorseat4.Heightofcutlever
7.Frontcasterwheel
10.Washouttting
2.Motioncontrollevers5.Footrest8.Reardrivewheel
3.Controlpanel
6.Mowerdeck9.Anti-scalproller
G005180
1
2
3
4
5
6
Figure4
1.Motioncontrollevers
3.Gastankcap5.Deector
2.Heightofcutlever
4.Engine6.Engineguard
