Premaintenance
Procedures
RaisingtheSeat
Makesurethemotioncontrolleversarelockedinthe
parkposition.Lifttheseatforwardandlowerittothe
oorboard.
Thefollowingcomponentscanbeaccessedbyraising
theseat:
•Serialplate
•Servicedecal
•Seatadjustmentknob
•Fuellter
•Fuses
•Batterycables
AccessingtheBattery
1.Raisetheseat.
2.RemovetheTORX
®
headfasteners(25)securing
theleftcovertotheframeasshowninFigure20.
2
3
G005065
1
2
2
2
3

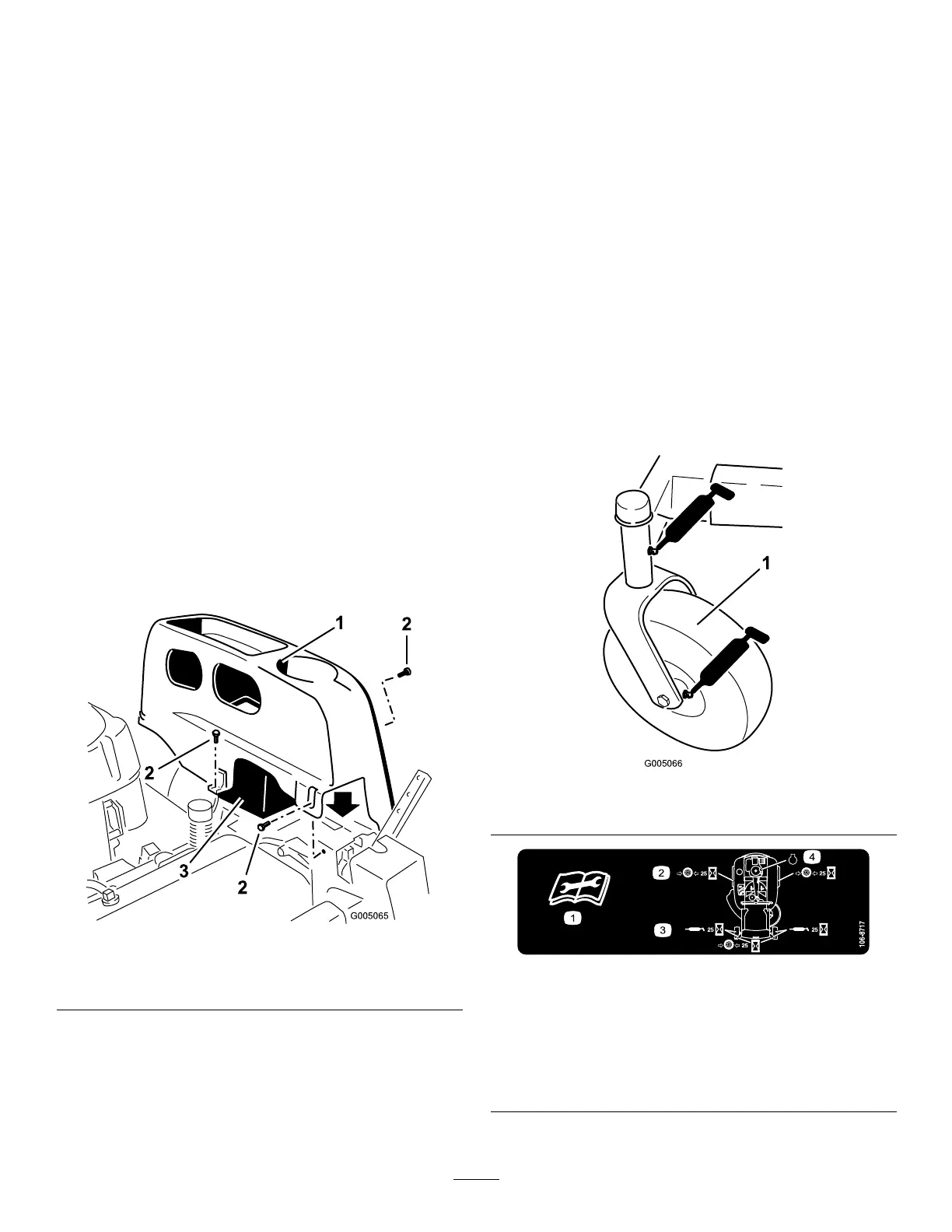

Figure20
1.Leftcover
3.Battery
2.Torxheadfasteners(25)
3.Lifttheplasticcoverawayfromthemachine.Retain
allfasteners.
Replacethecoverandsecureittotheframeusingthe
fastenersremovedpreviously.
Lubrication
GreasingtheBearings
ServiceInterval:Every25hours—Greaseall
lubricationpoints.
GreaseType:No.2GeneralPurposeLithiumBase
Grease
1.Parkthemachineonalevelsurfaceanddisengage
thebladecontrolswitch.
2.Movethemotioncontrolleversoutwardtothe
parkposition,stoptheengine,removethekey,and
waitforallmovingpartstostopbeforeleavingthe
operatingposition.
3.Cleanthegreasettings(Figure21andFigure22)
witharag.Makesuretoscrapeanypaintoffofthe
frontofthetting(s).
G005066
1
Figure21
1.Frontcastertire
Figure22
Locatedontheseatpanunderside
1.Readtheinstructions
beforeservicingor
performingmaintenance.
3.Greaseevery25operating
hours.
2.Checktirepressureevery
25operatinghours.
4.Engine
