Toro VISION II Series User Manual

3
1

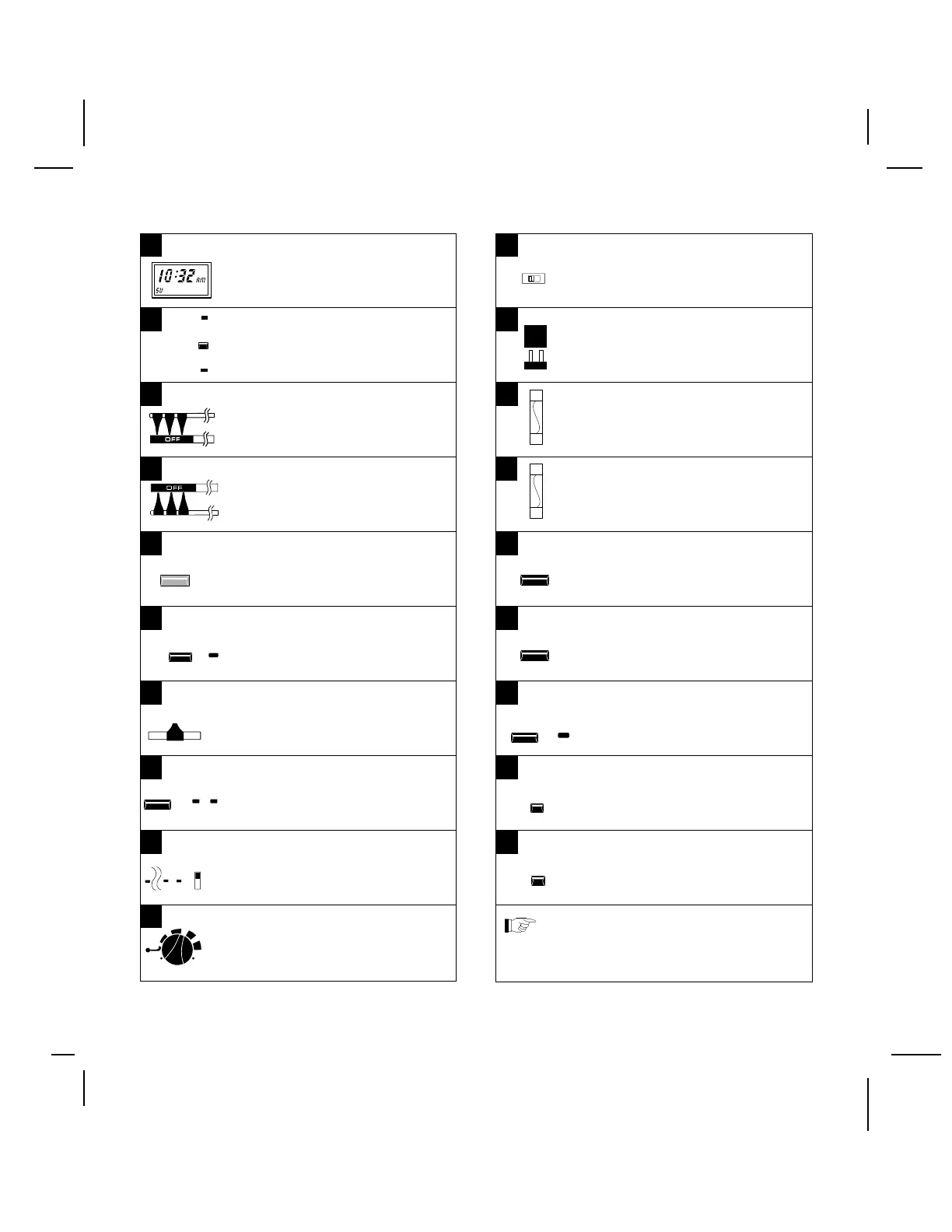

Display - Shows current time and
day of week, station run time (set and
remaining), program start time(s),
water conservation % and Off.
2
3
4
5
6
PROGRAM A
PROGRAM B
Program Select Key & Indicators -
Press key to select program “A” or
“B”. Indicator shows program
selected.
7
am
Program “B” Start Time Controls -
Position sliding controls to select
watering cycle start times for
program “B”.
8
am
Program “A” Start Time Controls -
Position sliding controls to select
watering cycle start times for
program “A”.
9
-
+
%
SEASONAL ADJUST
Seasonal Adjust Control - Position
sliding control to decrease or increase
run time of all stations from 25% to
200%. See pg. 18 for details.
™
10
WATERING DELAY
1-4 DAYS
Watering Delay Key & Indicator -
Press key to suspend automatic operation
from one to four days. Indicator shows
number of suspended days remaining.
™
11
ON / OFF
Controller On/Off Key - Press key to
activate or deactivate controller.
When deactivated, “OFF” is displayed.
Clock continues to update time.
12
WEEK
1
2
Week Select Key & Indicators - Press
key to select week 1 or 2 of Calendar
watering schedule. Indicator shows
week selected.
14
Fr
1:6
Sa
1:7
14 DAY
INTERV
DAYS
Su
1:1
Watering Day Schedule Switch &
Indicators - Switch UP - 14 Day Calendar.
Switch DOWN - Interval. Indicators show
watering days or interval selected.
13
5
15
30
60
90
1
MANUAL
OFF
Station Run Time Dials & Indicator -
Rotate dial to select station run time.
Indicator shows station is
programmed or operating.
15
RUN PROGRA
Run/Program Switch - Position switch to
“Program” only when assigning stations
to programs. Switch must remain in
“Run” position at all other times.
17
Removable Jumper Plugs - Two
removable jumper plugs are provided
to select control options. See pg. 19
for details.
16
Fuse - 1-1/2 Amp fuse protects 24
VAC output to field. See pg. 21 for
details.
18
Fuse - 3/4 Amp fuse protects
controller timing circuitry. See pg. 21
for details.
19
Note: 12 station model shown. Although
location of items 11-14 on 6 and 9 station
models is slightly different, function is
identical.
CURRENT
DAY
Set Day Key - Press key to set
current day of week.
CURRENT
TIME
Set Time Key - Press key to set
current time of day or change run
time mode.
MANUAL
OPERATION
Manual Operation Key & Indicator -
Press key to select manual
operations. Indicator shows manual
operation is active.
ENTER
Enter Key - Press key to enter days
or stations into a watering program.
DELETE
Delete Key - Press key to delete days
or stations from a watering program.
