ChangingtheEngineOil
ServiceInterval:Aftertherst5hours—Changethe
engineoil.
Every50hours—Underspecialoperating
conditions(refertoMaintainingtheMachine
underSpecialOperatingConditions)—change
theengineoil.
Every100hours—Undernormaloperating
conditions—changetheengineoil.
Note:Changetheoilmorefrequentlywhenoperating
conditionsareextremelydustyorsandy.
Note:Disposeoftheusedengineoilandoillterata
certiedrecyclingcenter.
1.Startthemachineandlettheenginerunfora
fewminutes.
2.Parkthemachineonalevelsurface.
3.Engagetheparkingbrake.
4.Shutofftheengineandremovethekey.
5.Raisethecargobedandsecureitwiththe
proprod;refertoRaisingtheCargoBedtothe
ServicePosition(page19).

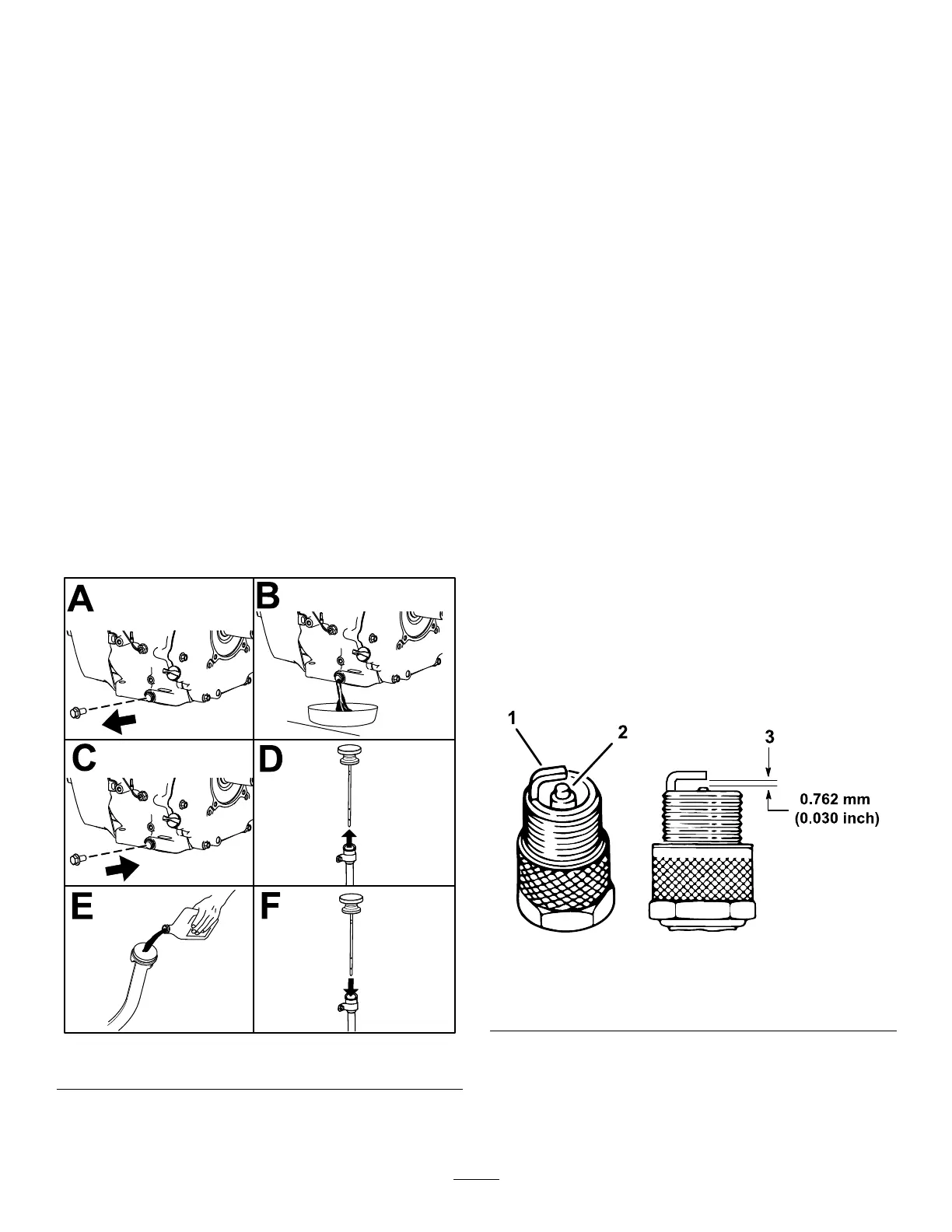

6.ChangetheengineoilasshowninFigure39.
g192770
Figure39
ServicingtheSparkPlug
CheckingandReplacingtheSpark
Plug
ServiceInterval:Every100hours/Yearly(whichever
comesrst)Replacethesparkplug
ifnecessary.
SparkPlugType:ChampionRC12LC4
AirGap:0.76mm(0.03inch)
Important:Youmustreplaceacracked,fouled,
dirty,ormalfunctioningsparkplug.Donot
sand-blast,scrape,orcleanelectrodesbyusing
awirebrushbecausegritmayeventuallyrelease
fromtheplugandfallintothecylinder.Theresult
isusuallyadamagedengine.
Note:Thesparkplugusuallylastsalongtime;
however,theplugshouldberemovedandchecked
whenevertheenginemalfunctions.
1.Cleantheareaaroundthesparkplugsothat
foreignmattercannotfallintothecylinderwhen
youremovethesparkplug.
2.Pullthewireofftheterminalofthesparkplug.
3.Removetheplugfromthecylinderhead.
4.Checktheconditionofthesideelectrode,center
electrode,andcenterelectrodeinsulatorto
ensurethatthereisnodamage(Figure40).
Note:Donotuseadamagedorwornspark
plug.Replaceitwithanewsparkplugofthe
speciedtype.
g238425
Figure40
1.Centerelectrodeinsulator3.Airgap(nottoscale)
2.Sideelectrode
5.Settheairgapbetweenthecenterandsideof
theelectrodesat0.76mm(0.03inch)asshown
inFigure40.
6.Installthesparkplugintothecylinderhead,and
torquetheplugto27N∙m(20ft-lb).
