MaintainingtheHeadlights
ReplacingtheHeadlight
Specication:SeeyourPartsCatalog.
1.Disconnectthebattery;refertoDisconnecting
theBattery(page40).
2.Openthehood.
3.Disconnecttheelectricalconnectorforthe
harnessfromtheconnectorofthelamp
assembly(Figure49).

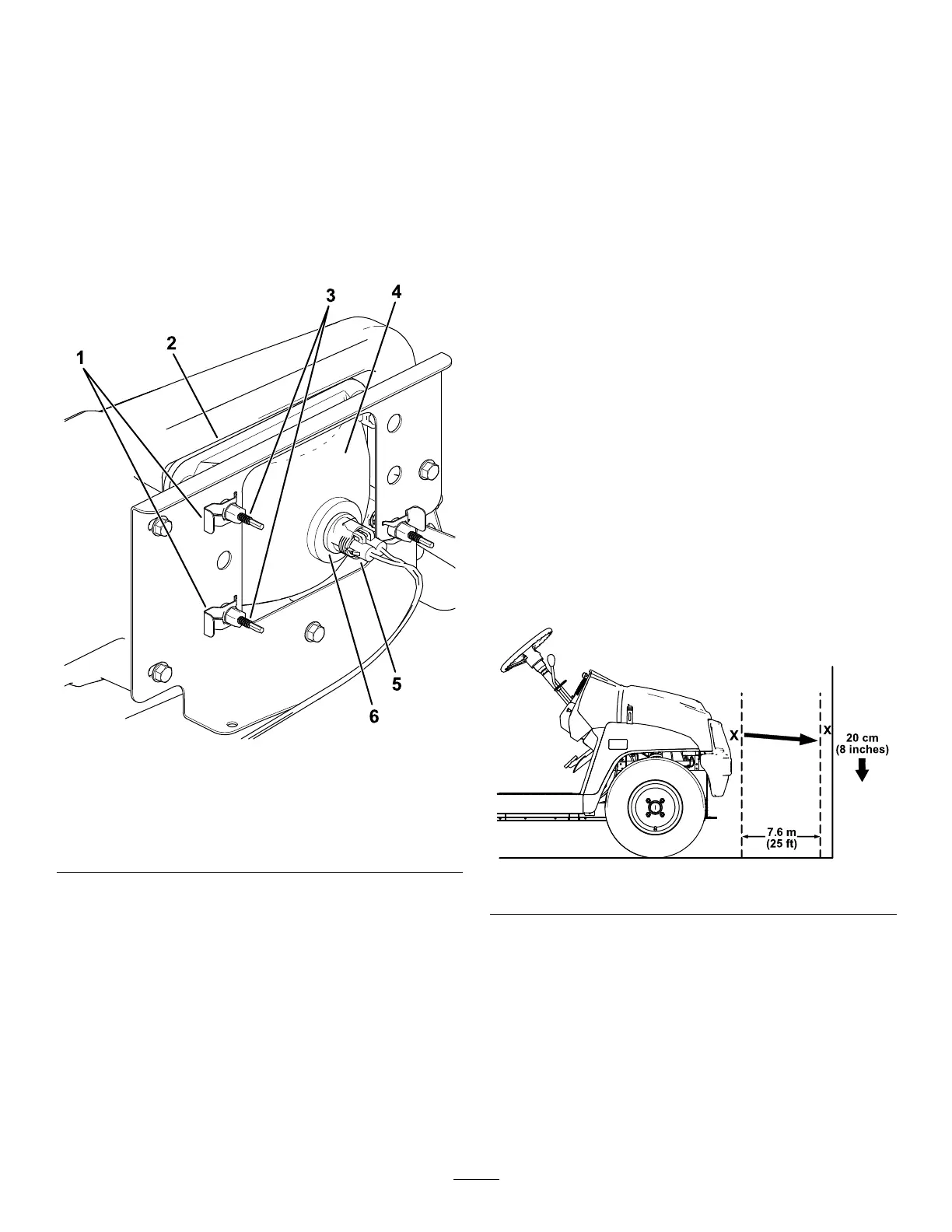

g277621
Figure49
1.Speedclip
4.Headlight
2.Openinginthebumper
5.Harness-electrical
connector
3.Adjustmentscrew6.Lampassembly
4.Removethespeedclipsthatsecurethe
headlighttotheheadlightbracket(Figure49).
Note:Retainallpartsforinstallationofthenew
headlight.
5.Removetheheadlightassemblybymovingit
forwardthroughtheopeninginthefrontbumper
(Figure49).
6.Installthenewheadlightthroughtheopeningin
thebumper(Figure49).
Note:Ensuretheadjustmentpostsarelinedup
withtheholesinthemountingbracketbehind
thebumper.
7.Securetheheadlightassemblywiththespeed
clipsthatyouremovedinstep4.
8.Connecttheelectricalconnectorfortheharness
totheconnectorofthelampassembly(Figure
49).
9.Adjusttheheadlightstodirectthebeamsto
thedesiredposition,refertoAdjustingthe
Headlights(page43).
AdjustingtheHeadlights
Usethefollowingproceduretoadjusttheheadlight
beampositionwheneveraheadlightassemblyis
replacedorremoved.
1.Parkthemachineonalevelsurfacewiththe
headlightsapproximately7.6m(25ft)froma
wall(Figure50).
2.Measurethedistancefromtheoortothecenter
oftheheadlightandmakeamarkonthewallat
thesameheight.
3.TurnthekeyswitchtotheONposition,andturn
ontheheadlights.
4.T akenoteofwheretheheadlightsaimonthe
wall.
Thebrightestpartoftheheadlightbeamshould
be20cm(8inches)belowthemarkplacedon
thewall(Figure50).
g298100
Figure50
5.Atthebackoftheheadlightassembly,rotate
adjustmentscrews(Figure49)topivotthe
headlightassemblyandalignthepositionofthe
castbeam.
6.Connectthebatteryandclosethehood;referto
ConnectingtheBattery(page42).
43
