DriveSystem
Maintenance
MaintainingtheTires
ServiceInterval:Every100hours—Checkthe
conditionofthetiresandrims.
Every100hours—Torquethewheel-lugnuts.
1.Inspectthetiresandrimsforsignsofwearand
damage.
Note:Operatingaccidents,suchashitting
curbs,candamageatireorrimandalsodisrupt
wheelalignment,soinspecttireconditionafter
anaccident.
2.T orquethewheellugnutsto108to122N∙m(80
to90ft-lb).
InspectingtheSteeringand
SuspensionComponents
ServiceInterval:Every100hours—Inspectthe
steeringandsuspensionforloose
ordamagedcomponents.
Withthesteeringwheelatthecenteredposition
(Figure51),turnthesteeringwheeltotheleftorright.
Ifyouturnthesteeringwheelmorethan13mm(1/2
inch)totheleftorright,andthetiresdonotturn,check
thefollowingsteeringandsuspensioncomponentsto
ensurethattheyarenotlooseordamaged:
•Steeringshafttothesteering-rackassemblyjoint
Important:Inspecttheconditionandsecurity
ofthepinion-shaftseal(Figure52).
•Steering-rackassemblytierods

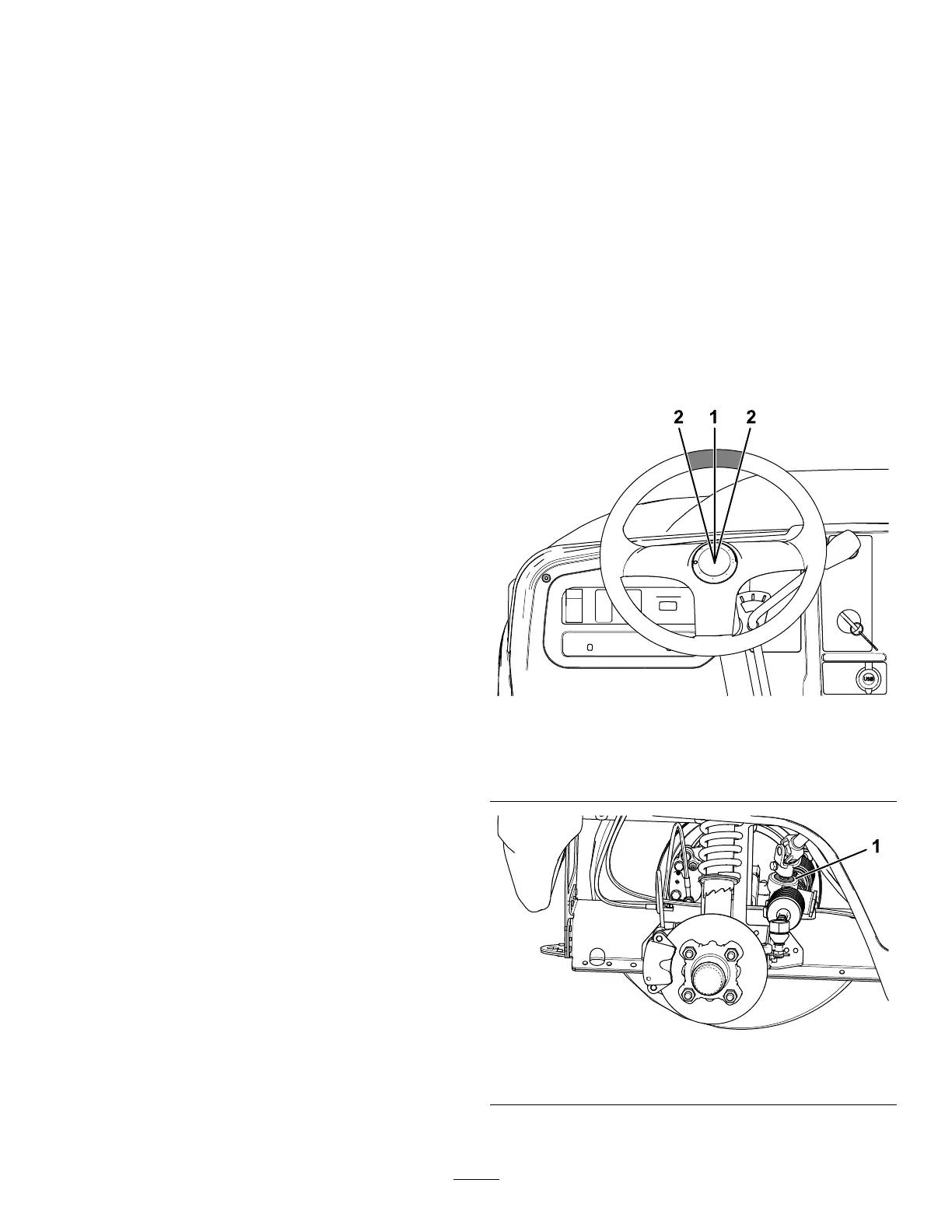

g313578
Figure51
1.Steeringwheelatthe
centeredposition
2.13mm(1/2inch)from
thecenterofthesteering
wheel
g313576
Figure52
1.Pinion-shaftseal
