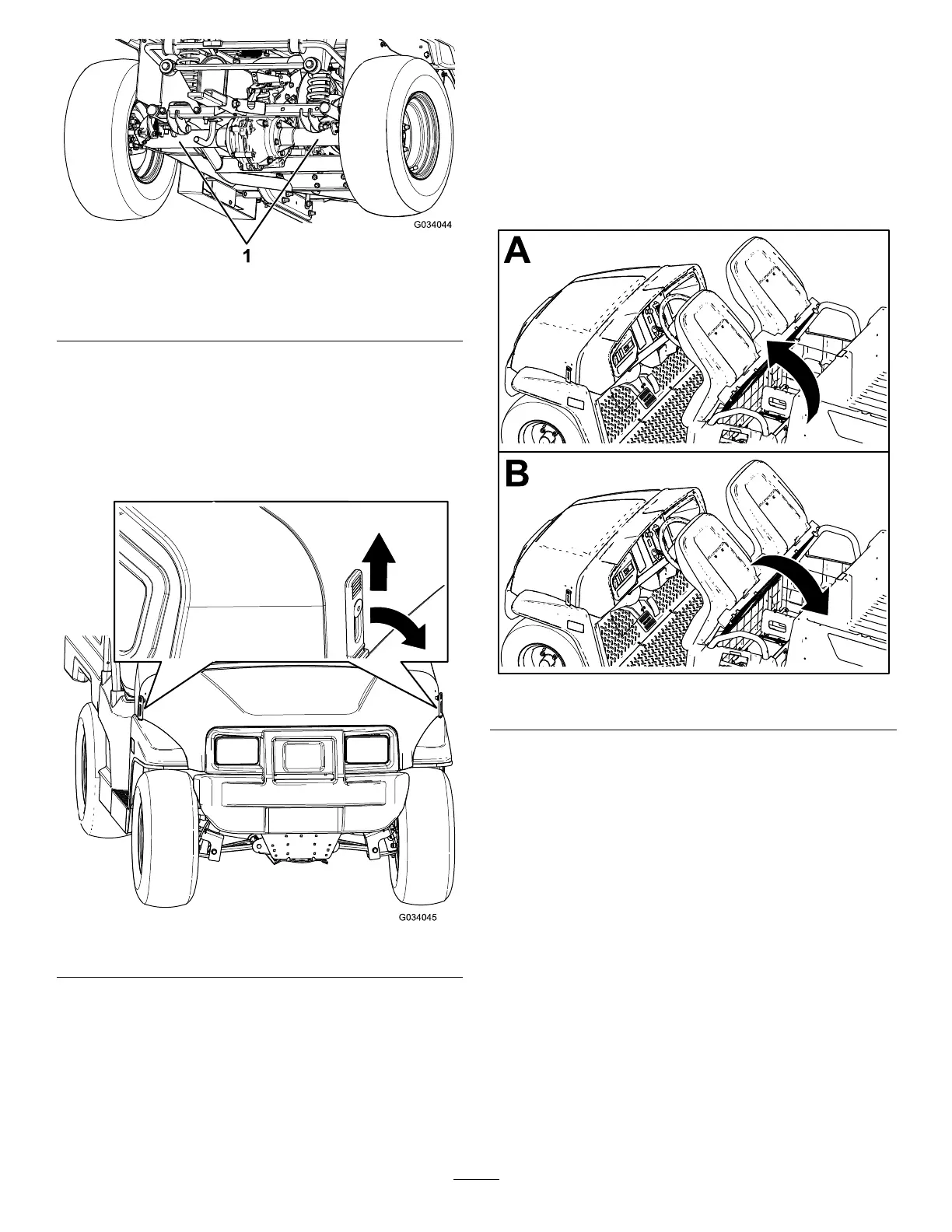

Toro Workman GTX - Accessing the Hood; Raising and Lowering the Seat Assembly

g034044
Figure24
1.Rearliftingpoints
AccessingtheHood
RaisingtheHood
1.Liftupthehandleoftherubberlatchesoneach
sideofthehood(Figure25).
g034045
Figure25
2.Raisethehood.
ClosingtheHood
1.Gentlylowerthehood.
2.Securethehoodbyaligningtherubberlatches
ontothelatchanchorsoneachsideofthehood
(Figure25).
RaisingandLoweringthe
SeatAssembly
Toraisetheseatassembly,pushtheseatassembly
forwarduntilitrestsonthesteeringwheel(Figure26).
Tolowertheseatassembly,pushtheseatassembly
rearwarduntilitseatsbackintotheoriginalposition
(Figure26).
g190066
Figure26
33
