Toro Workman GTX - Engine Maintenance; Engine Safety; Servicing the Air Cleaner

To Next Page

To Previous Page

EngineMaintenance

EngineSafety

•Shutofftheengine,removethekey,andwaitfor

allmovingpartstostopbeforecheckingtheoilor

addingoiltothecrankcase.

•Keepyourhands,feet,face,clothing,andother

bodypartsawayfromthemuferandotherhot

surfaces.

ServicingtheAirCleaner

ServicingtheAir-CleanerCover

ServiceInterval:Every50hours—Removethe

air-cleanercoverandcleanout

thedebris.Donotremovethe

air-cleanerelement.

Every50hours—Cleanoutthedebrisinthe

dustcap.

Checktheair-cleanerbodyfordamagewhichcould

causeanairleak.Replaceadamagedair-cleaner

body.

Cleantheair-cleanercoverandremovethedebris

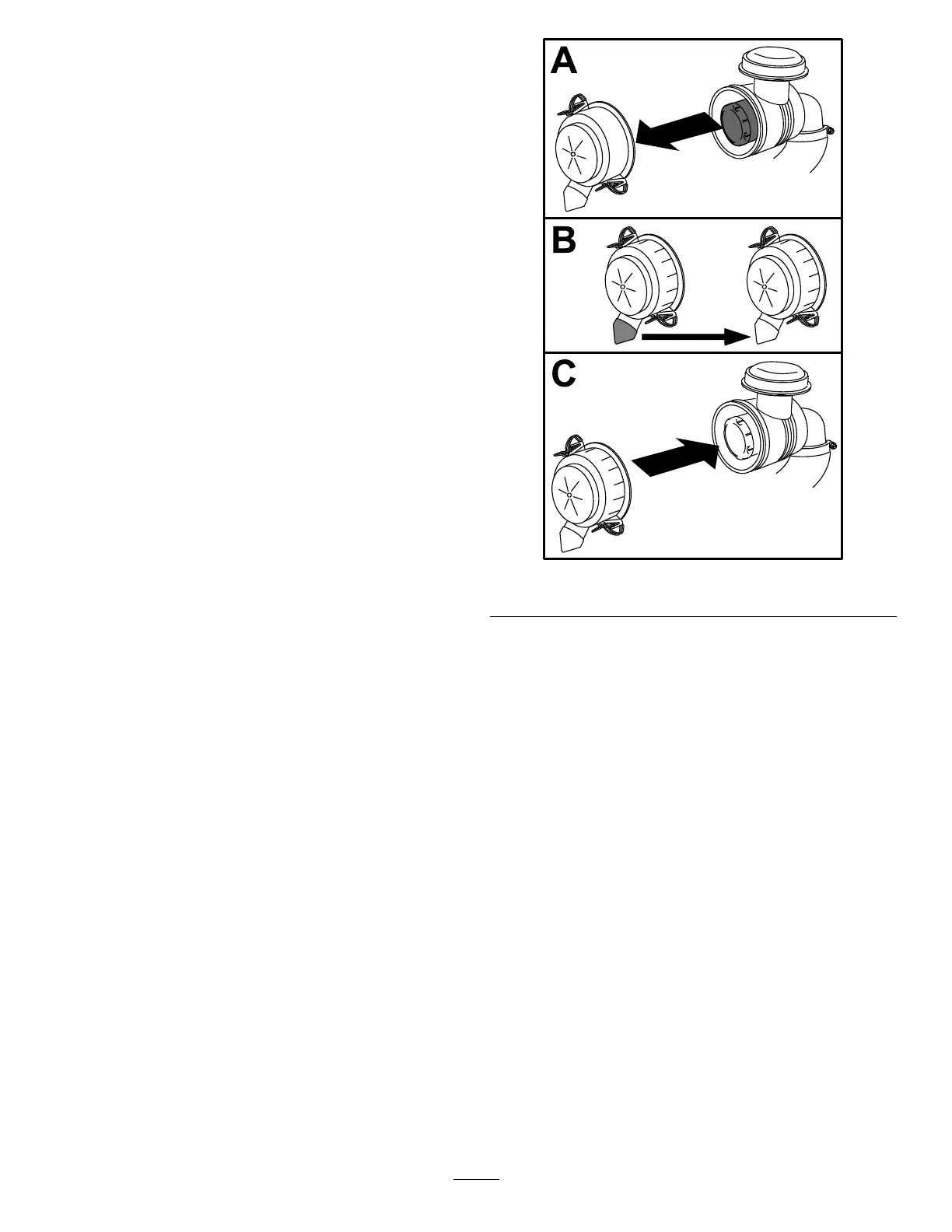

fromthedustcapasshowninFigure38.

g236567

Figure38
