ReplacingtheAir-CleanerElement
ServiceInterval:Every50hours—Underspecial
operatingconditions(refer
toMaintainingtheMachine
underSpecialOperating
Conditions)—replacetheair-cleaner
element.Replacetheair-cleaner
elementsoonerifdirtyordamaged.
Every100hours—Undernormaloperating
conditions—replacetheair-cleanerelement.
Replacetheair-cleanerelementsoonerifdirty
ordamaged.
Note:Servicetheair-cleanerelementmore
frequently(everyfewhours)ifoperatingconditions
areextremelydustyorsandy.
1.Gentlyslidetheair-cleanerelementoutofthe
air-cleanerbody(Figure39).
Note:Avoidknockingtheaircleanerintothe
sideofthebody.
Important:Donotattempttocleanthe
air-cleanerelement.
2.Inspectthenewelementfordamagebylooking
intotheelementwhileshiningabrightlighton
theoutsideoftheelement.
Note:Holesintheelementappearasbright
spots.Inspecttheelementfortears,anoilylm,
ordamagetotherubberseal.Iftheelementis
damaged,donotuseit.
3.Carefullyslidetheelementintotheair-cleaner
body.
Important:Donotpressonthesoftinside
areaoftheelement.
4.Installtheair-cleanercoverwiththeside
indicatedasUPfacingupwardandsecurethe
latches(Figure39).

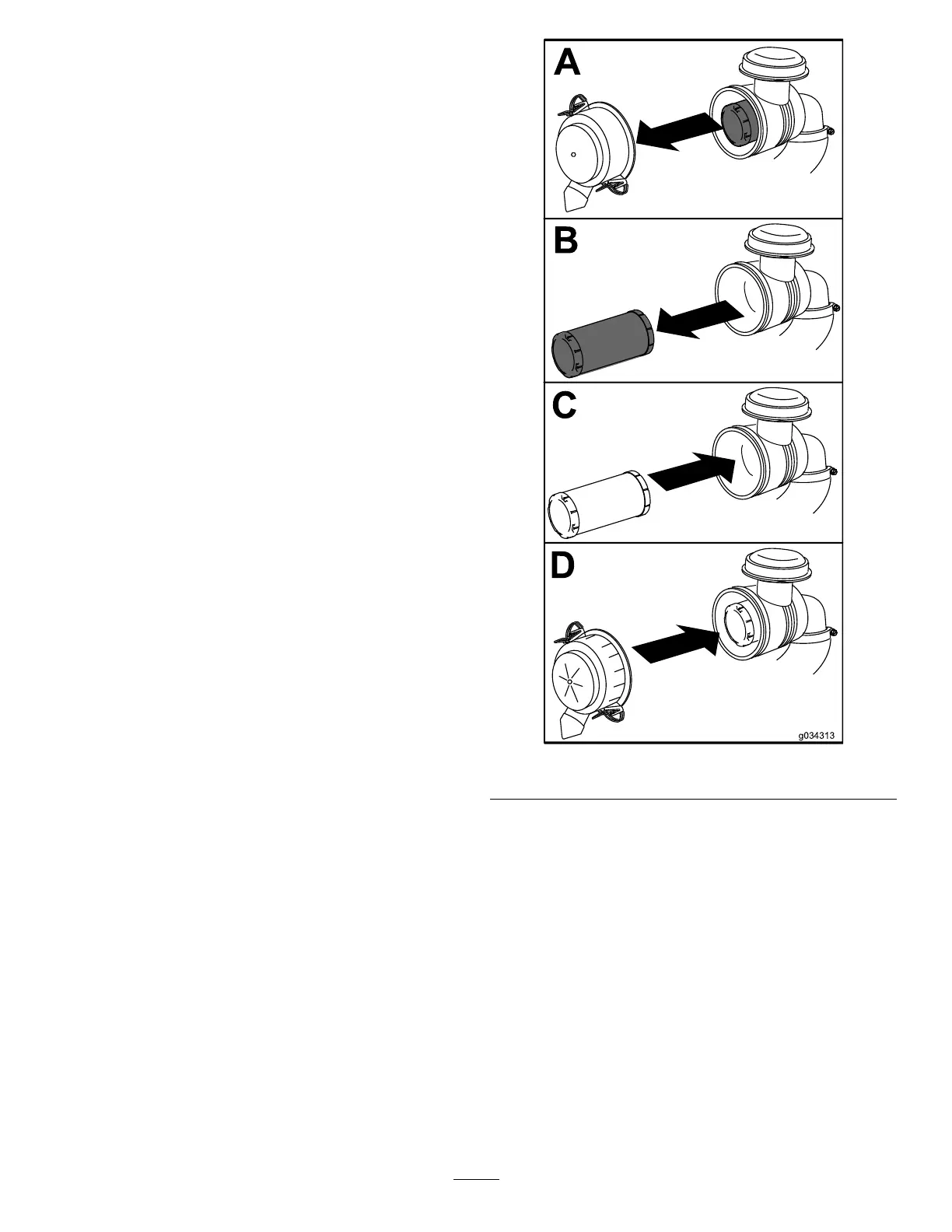

g034313
